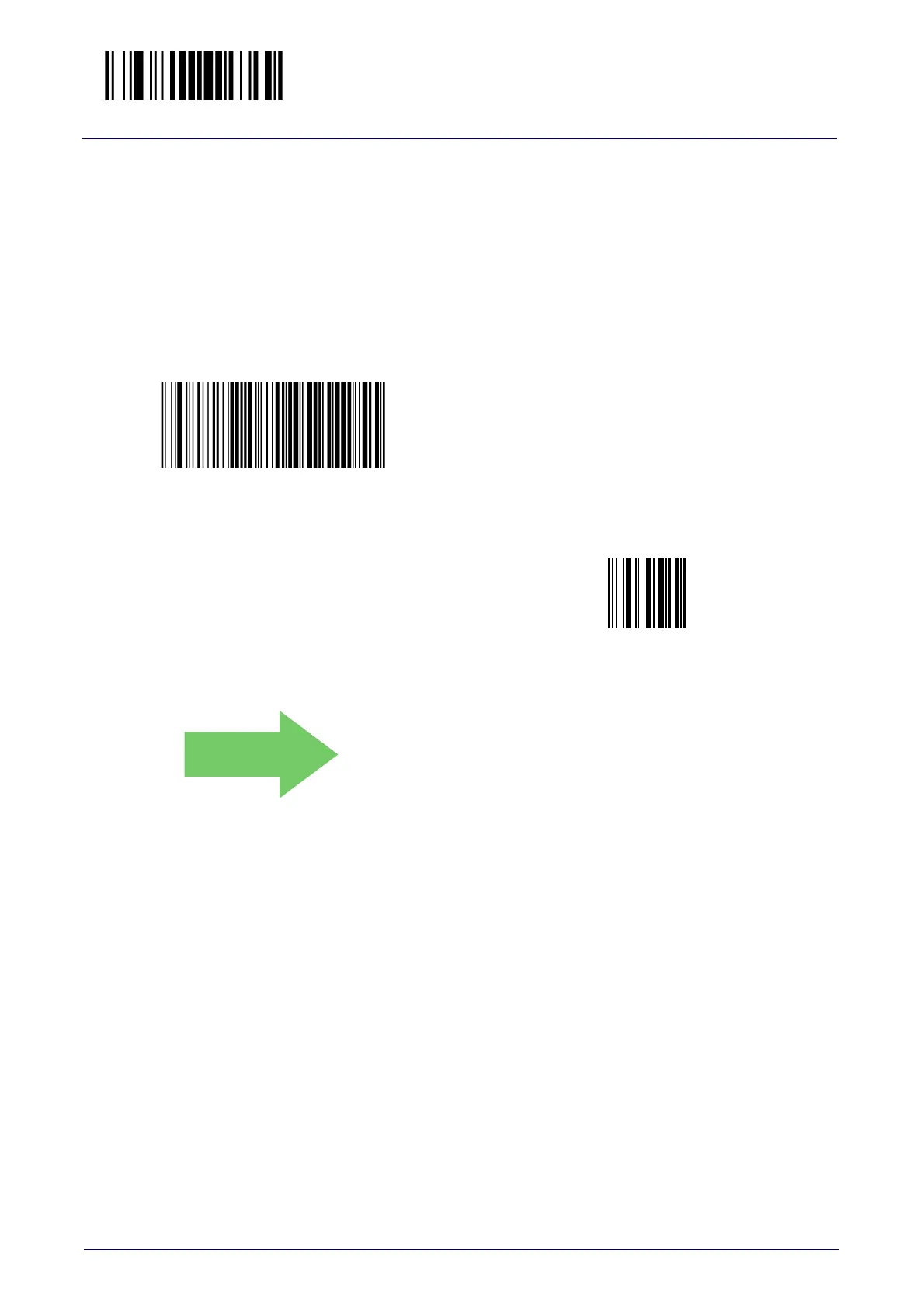

DotCode Maximum Dot Diameter
This feature specifies the maximum dot diameter of a DotCode to be decoded:
the measurement unit is pixel and it refers to the diameter of the dots as they
appear on the acquired image. Characters can be set from 0001 to 0512 in
increments of 1 (pad with zeroes). Always use four digits (e.g.: scan the bar-
codes '0', '0', '0', '2' for
setting diameter = 2). Default value is 0016.
Maximum Dot Diameter
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code
at
left followed by the digits from the Alphanumeric
characters in
Appendix C
representing your desired
character(s). End by scanning the ENTER/EXIT bar
co
de again.
Make a mistake? Scan the CANCEL bar code to abort
a
nd not save the entry string. You can then start
again at the beginning.
CANCEL
0016 = Maximum Dot Diameter is 16 pixels
To Next Page
