Technical Specifications
226 DSM0400 Fixed Mount Area Imager Bar Code Reader
DSM04X2-WA models (MP)
Resolution: 1280x960
Field of View: 52°H x 40°V
Typical Depth of Field
Symbology
a
a. All labels grade A, ambient light level 300lux, pitch angle 10°, tilt angle 10°, skew angle 0°,
room temperature 20°C.
Resolution (mils) Dmin (mm) Dmax (mm)
Code 39 3 50 180
Code 39 5 30 240
Datamatrix 10 40 200
EAN13 13 35 370
Datamatrix 15 30 250
Code 39 20
(1)
b
b. Limited by field of view
600
RS-232 Electrical Connections
9-pin Connector
1
Trigger
(DSM045X models only)
Trigger signal input (see
Figure 1
and
Figure 2
))
2 TX Transmit Data (output from scanner)
3 RX Receive Data (input to scanner)
4 NC Not connected
5 GND Ground
6 VCC +5Vdc
7 CTS Clear to Send (input to scanner)
8 RTS Request to Send (output from scanner)
Default configuration is RS-232: 115200, 8, N, 1, no handshaking, ACK/NAK
disabled.
External Trigger (DSM045X models only)

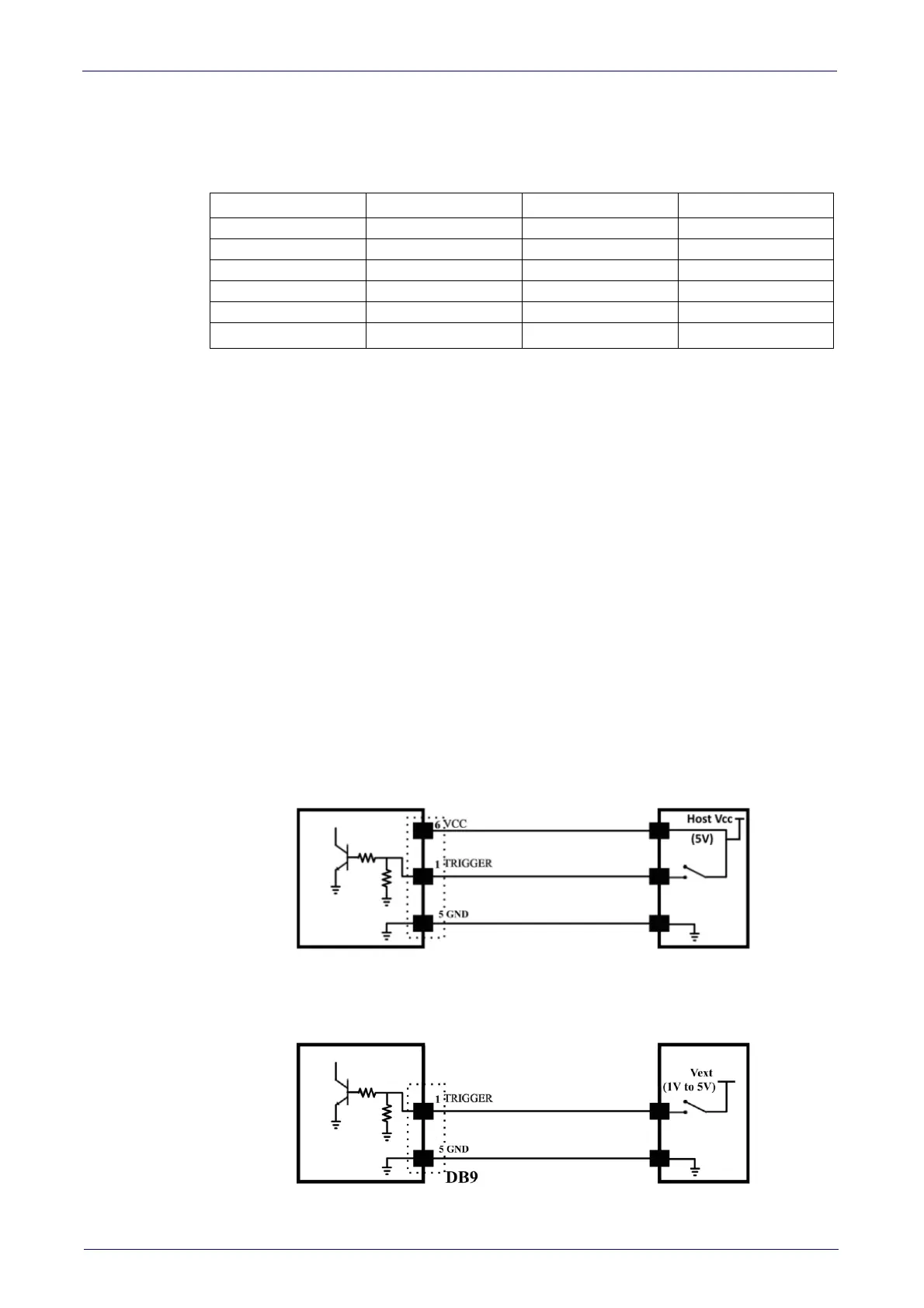

Figure 1 - DSM0400 powered using DB9 pin n°6 and Input Trigger using DB9 pin n°1
Figure 2 - DSM0400 Input Trigger using DB9 pin n°1 with an external voltage Vext
Acceptable range: from 1V to 5 V).
