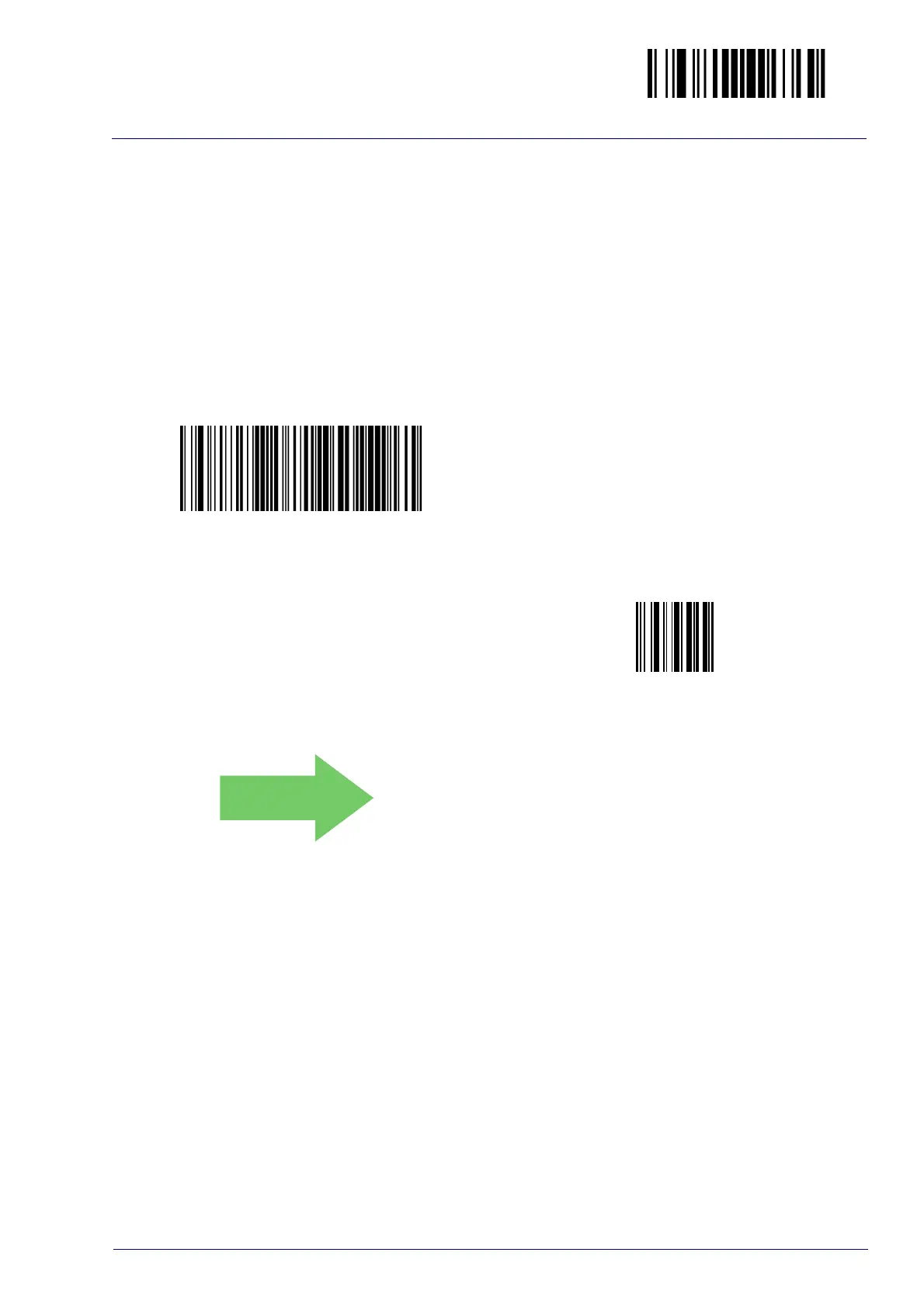

Enter/Exit Programming Mode
Product Reference Guide 185
DotCode Minimum Dot Diameter
This feature specifies the minimum dot diameter of a DotCode to be decoded:
the measurement unit is pixel and it refers to the diameter of the dots as they
appear on the acquired image. Characters can be set from 0001 to 0512 in
increments of 1 (pad with zeroes). Always use four digits (e.g.: scan the bar-
codes '0', '0', '0', '2' for
setting diameter = 2). Default value is 0001.
Minimum Dot Diameter
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code
at
left followed by the digits from the Alphanumeric
characters in
Appendix C
representing your desired
character(s). End by scanning the ENTER/EXIT bar
co
de again.
Make a mistake? Scan the CANCEL bar code to abort
and
not save the entry string. You can then start
again at the beginning.
CANCEL
0001 = Minimum Dot Diameter is 1 pixel
DEFAULT
