I 2 of 5 Set Length 1
This feature specifies one of the barcode lengths for I 2 of 5 Length Control on
page 111
. Length 1 is the minimum label length if in Variable Length on page 126
Mode, or the first fixed length if in
Fixed Length on page 93 Mode. The length
includes the barcode’s check and data characters. The length can be set from 2
to
50 characters in increments of two. For more detailed programming instruc-
tions see,
Set Length on Chapter 4, References .
Table 5 provides some examples for setting Length 1.

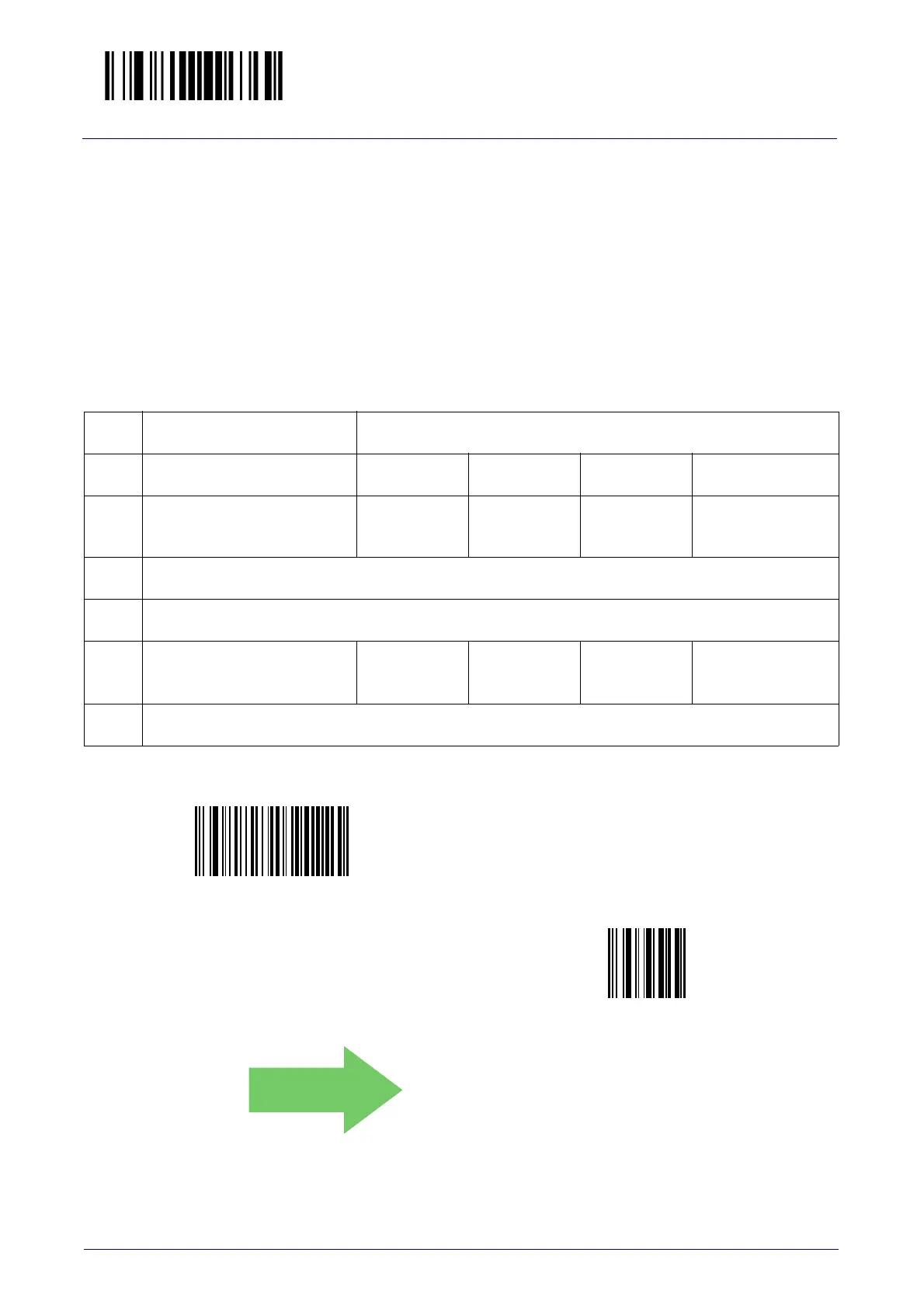

Table 5. I 2 of 5 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
2 Characters 6 Characters 14 Characters 50 Characters
2
Pad with leading zeroes to
yield two digits
02 06 14 50
3 Scan ENTER/EXIT PROGRAMMING MODE
4 Scan SELECT I 2 of 5 LENGTH 1 SETTING
5
Scan Two Characters From
Appendix C
‘0’ and ‘2’ ‘0’ and ‘6’ ‘1’ and ‘4’ ‘5’ AND ‘0’
6 Scan ENTER/EXIT PROGRAMMING MODE
Select I 2 of 5 Length 1 Setting
Make a mistake? Scan the CANCEL barcode to abort and
not save the entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
06 = Length 1 is 6 Characters
