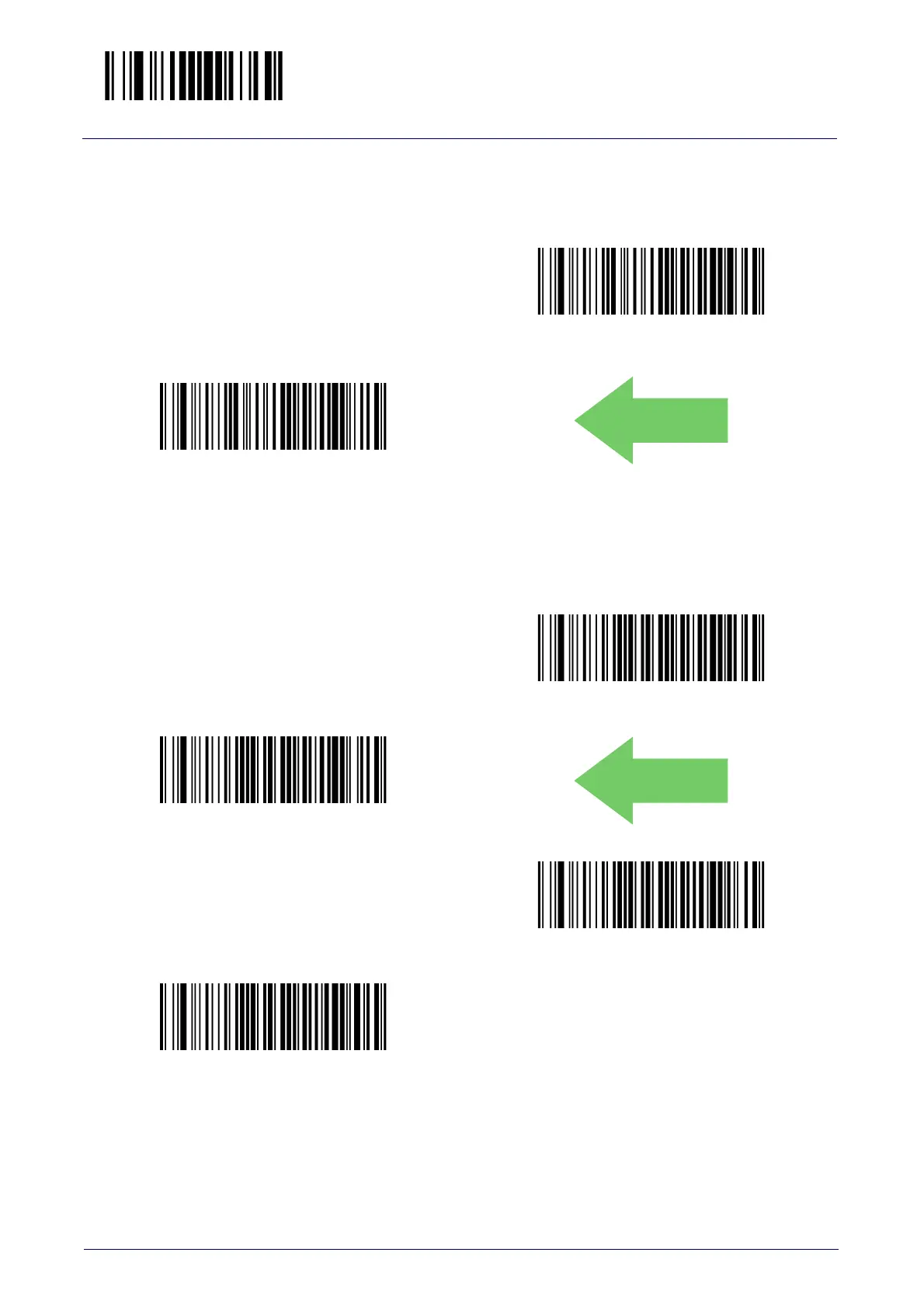

Enter/Exit Programming
Mode
68
DSM0400 Fixed Mount Area Imager Bar Code Reader
Aiming Pointer
Enables/disables the aiming
pointer for all symbologie
s.
Aiming Pointer = Disable
Aiming Pointer =
Enable
DEF
A
UL
T
Green Spot Duration
Specifies the duration of
the good read pointer beam
after a good read.
Green Spot Duration = Disable (Green Spot
is Off)
Green Spot Duration = Short
(300 msec)
DEF
A
UL
T
Green Spot Duration
= Medium (500 msec)
Green Spot Duration
= Long (800 msec)
75
77
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
9
About the Scanner
9
Using the DSM0400
9
About this Manual
9
Overview
10
Manual Conventions
10
Technical Support
11
Support through the Website
11
Reseller Technical Support
11
Setup
13
Unpacking
13
Setting up the Scanner
13
Connect Host Interface
14
RS-232 Serial Connection
14
USB Connection
14
DSM0400 Mounting Using Brackets
15
Multi Side Mounting Bracket
15
Angular Bracket (-17° to 25° Angle Mounting)
16
Both Brackets Applied
16
Using the DSM0400
17
Interface Selection
18
Configuring the Interface
18
Customizing Configuration Settings
20
Using the Programming Bar Codes
20
Datalogic Aladdin™ Utility
20
Datalogic DESP Protocol SDK
20
Despdemoapp
20
Interface Settings
21
Configuring Other Features
21
Software Version Transmission
21
Resetting the Product Configuration to Defaults
21
Configuration Using Bar Codes
23
Configuration Parameters
23
ONLY Interface
25
Baud Rate
26
Data Bits
27
Stop Bits
27
Parity
28
Handshaking Control
29
USB Keyboard ONLY Interface
31
Country Mode
32
Setting Country Mode
33
Setting Encoding Type
47
Setting ALT Input Type
54
Setting ALT Output Type
54
Keyboard Numeric Keypad
55
Keyboard Send Control Characters
55
Characters
55
USB Keyboard Speed
56
USB-OEM ONLY Interface
59
Introduction
59
USB-OEM Device Usage
60
Data Format
61
Global Prefix/Suffix
62
Global AIM ID
63
Gs1-128 Aim ID
64
Reading Parameters
65
Double Read Timeout
66
Led and Speaker Indicators
68
Good Read Speaker Volume
68
Enable/Disable Green Spot (Good Read) LED Indicator
69
Enable/Disable Power LED Indicator
69
Enable/Disable Trigger LED Indicator
69
Scan Mode
70
Scanning Features
70
Flash on Time
71
Flash off Time
72
Stand Mode Sensitivity
73
Scanning Active Time
74
Pick Mode
75
Aiming Pointer
76
Green Spot Duration
76
Enhanced Mobile Phone Mode
77
Decode Negative Image
78
Disable All Symbologies
79
1D Symbologies
80
Code Ean/Upc
82
Coupon Control
82
Upc-A
82
UPC-A Enable/Disable
82
Expand UPC-A to EAN-13
83
UPC-A Check Character Transmission
83
UPC-A Number System Character Transmission
84
Upc-E
84
UPC-E Enable/Disable
84
Expand UPC-E to EAN-13
85
UPC-E Check Character Transmission
85
Expand UPC-E to UPC-A
86
UPC-E Number System Character Transmission
86
Gtin Formatting
87
Ean 13 (Jan 13)
88
EAN 13 Check Character Transmission
88
EAN 13 Enable/Disable
88
EAN-13 ISBN Conversion
89
Issn
89
ISSN Enable/Disable
89
Ean 8 (Jan 8)
90
EAN 8 Check Character Transmission
90
EAN 8 Enable/Disable
90
Expand EAN 8 to EAN 13
90
Upc/Ean Global Settings
91
UPC/EAN Price Weight Check
91
Add-Ons
92
Optional Add-Ons
92
Optional Add-On Timer
93
Disable All Symbologies
94
Code 39
97
Code 39 Check Character Calculation
97
Code 39 Enable/Disable
97
Code 39 Check Character Transmission
98
Code 39 Full ASCII
99
Code 39 Start/Stop Character Transmission
99
Code 39 Quiet Zones
100
Code 39 Length Control
101
Code 39 Set Length 1
102
Code 39 Set Length 2
103
Code 39 Interdigit Ratio
104
Code 32 (Ital Pharmaceutical Code)
106
Code 32 Enable/Disable
106
Code 32 Feature Setting Exceptions
106
Code 32 Check Char Transmission
107
Code 32 Start/Stop Character Transmission
107
Code 39 Cip (French Pharmaceutical)
108
Code 39 CIP Enable/Disable
108
Code 128
109
Code 128 Check Character Transmission
109
Code 128 Enable/Disable
109
Code 128 Function Character Transmission
110
Code 128 Quiet Zones
110
Code 128 Length Control
111
Code 128 Set Length 1
112
Code 128 Set Length 2
113
Gs1-128
114
GS1-128 Enable
114
Code Isbt 128
115
ISBT 128 Concatenation
115
ISBT 128 Concatenation Mode
115
ISBT 128 Advanced Concatenation Options
116
ISBT 128 Dynamic Concatenation Timeout
116
Interleaved 2 of 5 (I 2 of 5)
117
I 2 of 5 Check Character Calculation
117
I 2 of 5 Enable/Disable
117
I 2 of 5 Check Character Transmission
118
I 2 of 5 Length Control
119
I 2 of 5 Set Length 1
120
I 2 of 5 Set Length 2
120
Follett 2 of 5
122
Follett 2 of 5 Enable/Disable
122
Interleaved 2 of 5 Cip Hr
122
Interleaved 2 of 5 CIP HR Enable/Disable
122
Standard 2 of 5
123
Standard 2 of 5 Check Character Calculation
123
Standard 2 of 5 Check Character Transmission
123
Standard 2 of 5 Enable/Disable
123
Standard 2 of 5 Length Control
124
Standard 2 of 5 Set Length 1
125
Standard 2 of 5 Set Length 2
126
Industrial 2 of 5
127
Industrial 2 of 5 Enable/Disable
127
Industrial 2 of 5 Check Character Calculation
128
Industrial 2 of 5 Check Character Transmission
128
Industrial 2 of 5 Length Control
129
Industrial 2 of 5 Set Length 1
130
Industrial 2 of 5 Set Length 2
131
Code Iata
132
IATA Check Character Transmission
132
IATA Enable/Disable
132
Datalogic 2 of 5
133
Datalogic 2 of 5 Check Character Calculation
133
Datalogic 2 of 5 Enable/Disable
133
Datalogic 2 of 5 Length Control
134
Datalogic 2 of 5 Set Length 1
135
Datalogic 2 of 5 Set Length 2
136
Codabar
137
Codabar Check Character Calculation
137
Codabar Enable/Disable
137
Codabar Check Character Transmission
138
Codabar Start/Stop Character Transmission
138
Codabar Quiet Zones
139
Codabar Start/Stop Character Match
139
Codabar Length Control
140
Codabar Set Length 1
141
Codabar Set Length 2
142
Abc Codabar
143
ABC Codabar Concatenation Mode
143
ABC Codabar Enable/Disable
143
ABC Codabar Dynamic Concatenation Timeout
144
ABC Codabar Force Concatenation
145
Code 11
146
Code 11 Check Character Calculation
146
Code 11 Enable/Disable
146
Code 11 Check Character Transmission
147
Code 11 Length Control
147
Code 11 Set Length 1
148
Code 11 Set Length 2
149
Gs1 Data Bar ™ Omnidirectional
150
Gs1 Databar™ Omnidirectional
150
GS1 Databar™ Omnidirectional Enable/Disable
150
GS1 Databar™ Omnidirectional GS1-128 Emulation
150
Gs1 Databar™ Expanded
151
GS1 Databar™ Expanded Enable/Disable
151
GS1 Databar™ Expanded GS1-128 Emulation
151
GS1 Databar™ Expanded Length Control
152
GS1 Databar™ Expanded Set Length 1
153
GS1 Databar™ Expanded Set Length 2
154
Gs1 Databar™ Limited
155
GS1 Databar™ Limited Enable/Disable
155
GS1 Databar™ Limited GS1-128 Emulation
155
Code 93
156
Code 93 Check Character Calculation
156
Code 93 Enable/Disable
156
Code 93 Check Character Transmission
157
Code 93 Length Control
157
Code 93 Set Length 1
158
Code 93 Set Length 2
159
Code 93 Quiet Zones
160
Msi
161
MSI Check Character Calculation
161
MSI Enable/Disable
161
MSI Check Character Transmission
162
MSI Length Control
162
MSI Set Length 1
163
MSI Set Length 2
164
Plessey
165
Plessey Enable/Disable
165
Plessey Check Character Calculation
166
Plessey Check Character Transmission
166
Plessey Length Control
167
Plessey Set Length 1
168
Plessey Set Length 2
169
2D Symbologies
170
Global Features
171
Structured Append
172
Normal/Inverse Symbol Control
173
Symbology Selection
174
Aztec Code
174
Aztec Code Enable / Disable
174
Aztec Code Length Control
175
Aztec Code Set Length 1
176
Aztec Code Set Length 2
177
Han Xin Code
178
Han Xin Code Enable / Disable
178
Han Xin Code: Code Length Control
179
Han Xin Code Set Length 1
180
Han Xin Code Set Length 2
181
Data Matrix
182
Data Matrix Enable / Disable
182
Data Matrix Square/Rectangular Style
183
Data Matrix Length Control
184
Disable All Symbologies
185
Data Matrix Set Length 1
186
Data Matrix Set Length 2
187
Dotcode
188
Dotcode Enable / Disable
188
Dotcode Length Control
188
Dotcode Set Length 1
189
Dotcode Set Length 2
190
Dotcode Constant Position
191
Dotcode High Resolution
191
Dotcode Maximum Dot Diameter
192
Dotcode Minimum Dot Diameter
193
Maxicode
194
Maxicode Enable / Disable
194
Maxicode Primary Message Transmission
194
Maxicode Length Control
195
Maxicode Set Length 1
196
Maxicode Set Length 2
197
Pdf417
198
PDF417 Enable / Disable
198
PDF417 Length Control
198
PDF417 Set Length 1
199
PDF417 Set Length 2
200
Micro Pdf417
201
Micro PDF417 Enable / Disable
201
Micro PDF417 Code 128 GS1-128 Emulation
202
Micro PDF417 Length Control
203
Micro PDF417 Set Length 1
204
Micro PDF417 Set Length 2
205
Qr Code
206
QR Code Enable / Disable
206
QR Code Length Control
206
QR Code Set Length 1
207
QR Code Set Length 2
208
Micro Qr Code
209
Micro QR Code Enable/Disable
209
Micro QR Code Length Control
210
Micro QR Code Set Length 1
211
Micro QR Code Set Length 2
212
Digital Watermark
213
Ocr
214
Ucc Composite
215
UCC Optional Composite Timer
215
Postal Code Selection
216
Newzealand Postal Control
219
Postnet BB Control
219
References
221
Parameters
222
Only
222
Baud Rate
222
Data Bits
222
Handshaking Control
222
Parity
222
Stop Bits
222
Data Format
223
Data Editing
223
Global Prefix/Suffix
224
Example: Setting a Prefix
224
Global AIM ID
225
Scanning Features
226
Scan Mode
226
Flash on Time
227
Flash off Time
228
Symbologies
229
Set Length
229
Set Length 1
229
Set Length 2
230
Technical Specifications
231
Technical Features
231
DSM04X1 Models (WVGA)
233
DSM04X2-DL Models (MP)
233
DSM04X2-SR Models (MP)
233
DSM04X2-WA Models (MP)
234
RS-232 Electrical Connections
234
External Trigger (DSM045X Models Only)
234
LED and Beeper Indications
235
Button and LED Status
235
Indicators
235
Troubleshooting
236
DSM0400 Dimensions
237
Multi-Face Bracket for Mounting in 5 Sides
238
Angular Mounting Bracket
239
Ergonomic Recommendations
240
Standard Cable Pinouts for DSM049X Models
241
Sample Bar Codes
243
1D Bar Codes
243
1D Bar Codes - Continued
244
GS1 Databar™ (RSS)
245
GS1 Databar™-14
245
2D Bar Codes
246
ASCII Chart
247
Keypad
249
HID Variable PIN Code
251
Other manuals for Datalogic DSM0400
Quick Reference Guide
48 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Datalogic DSM0400 and is the answer not in the manual?
Ask a question
Datalogic DSM0400 Specifications
General
Brand
Datalogic
Model
DSM0400
Category
Barcode Reader
Language
English
Related product manuals
Datalogic DS2400
49 pages
Datalogic DS6400
159 pages
Datalogic DS8110
282 pages
Datalogic DS8100
280 pages
Datalogic DS4800
105 pages
Datalogic DS6300
129 pages
Datalogic DS2400N
85 pages
Datalogic DS4600A
63 pages
Datalogic DS8100A
141 pages
Datalogic DS5100-X200
164 pages
Datalogic DS8100A-3002
105 pages
Datalogic DX8200
105 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
