Datalogic DSM0400 - Standard 2 of 5 Set Length 1

Enter/Exit Programming Mode
Product Reference Guide 117
Standard 2 of 5 Set Length 1
This feature specifies one of the barcode lengths for Standard 2 of 5. Length 1
is the minimum label length if in
Variable Length on page 116 Mode, or the first
fixed length if in
Fixed Length on page 93 Mode. Length includes the barcode’s
check and data characters. The length can be set from 1 to 50 characters. For
more detailed programming instructions see, "Set Length" on
Chapter 4, Refer-
ences
.
Table 7 provides some examples for setting Length 1.

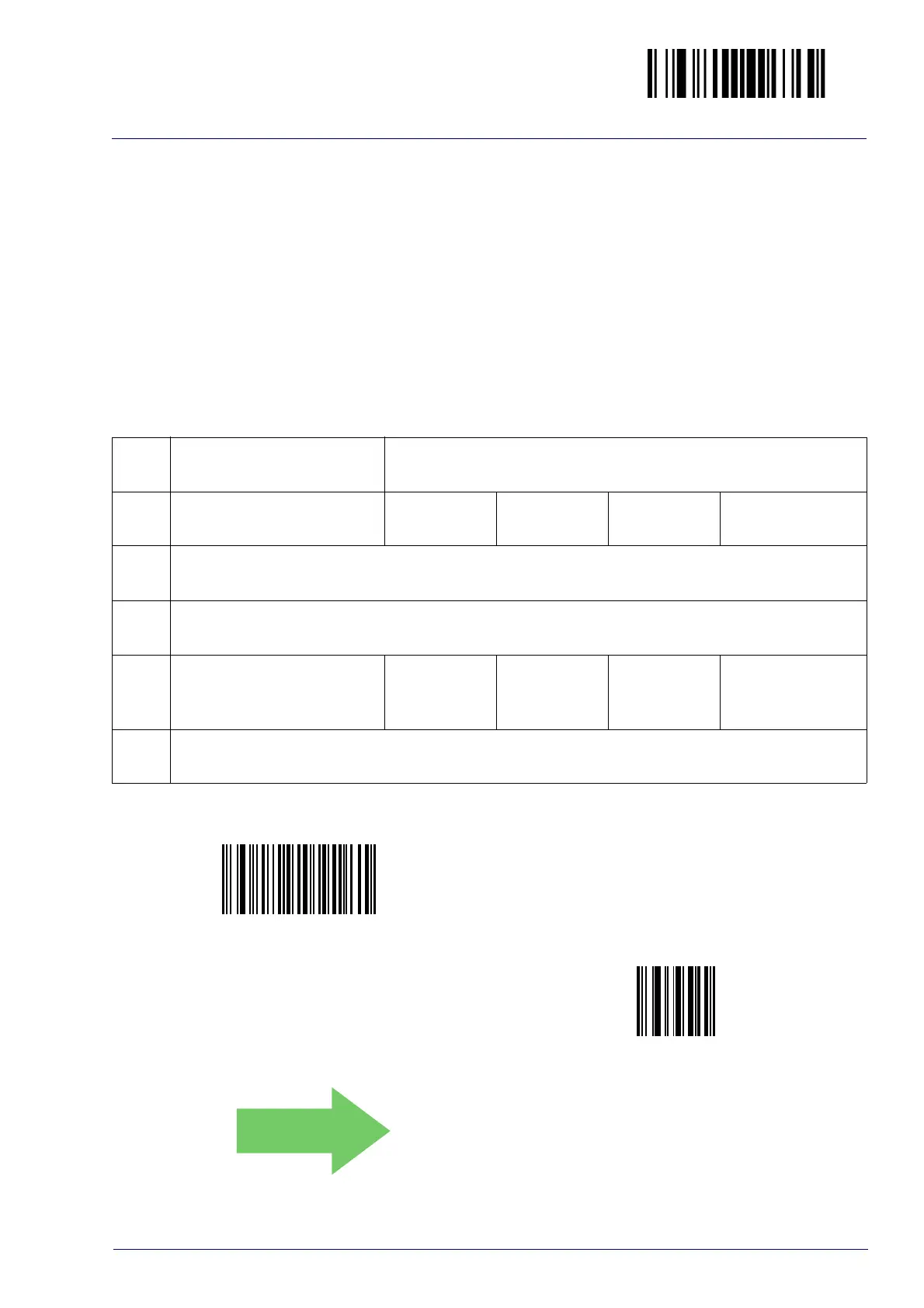

Table 7. Standard 2 of 5 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
01 Character 07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT STANDARD 2 OF 5 LENGTH 1 SETTING
4
Scan Two Characters From
Appendix C
‘0’ and ‘1’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Standard 2 of 5 Length 1 Setting
Make a mistake? Scan the CANCEL barcode to abort and
not save the entry string. You can then start again at the
beginning.
CANCEL
06 = Length 1 is 6 Characters
DEFAULT
