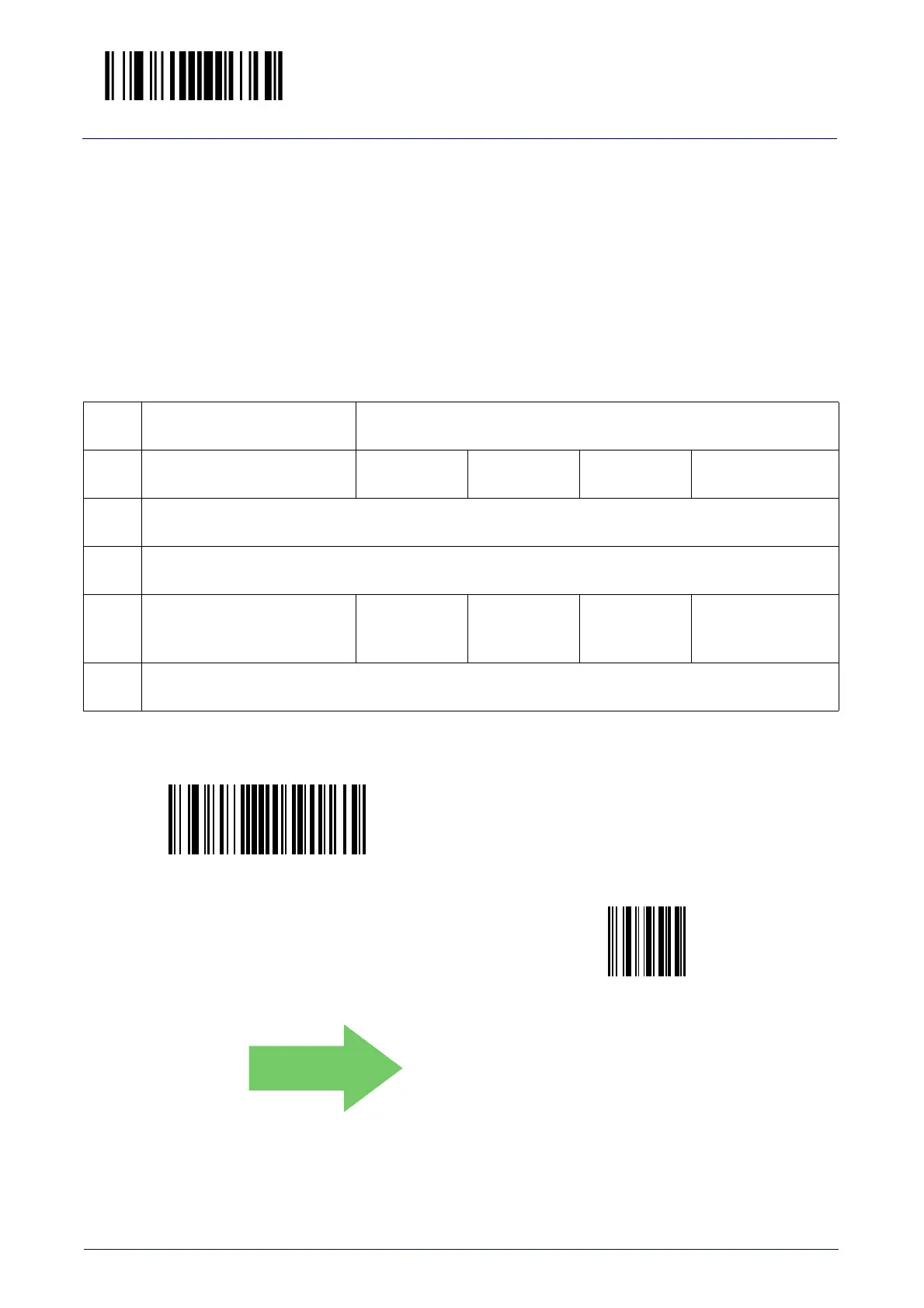

122 DSM0400 Fixed Mount Area Imager Bar Code Reader

Industrial 2 of 5 Set Length 1

This feature specifies one of the barcode lengths for Industrial 2 of 5. Length 1

is the minimum label length if in

Variable Length on page 93

Mode, or the first

fixed length if in

Fixed Length on page 93

Mode. Length includes the barcode’s

data characters only. The length can be set from 0 to 50 characters. For more

detailed programming instructions see, "Set Length" on

Chapter 4, References

Table 9

provides some examples for setting Length 1.

Table 9. Industrial 2 of 5 Length 1 Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting

00 Characters 07 Characters 15 Characters 50 Characters

2 Scan ENTER/EXIT PROGRAMMING MODE

3 Scan SELECT INDUSTRIAL 2 OF 5 LENGTH 1 SETTING

Scan Two Characters From

Appendix C

‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’

5 Scan ENTER/EXIT PROGRAMMING MODE

Select Industrial 2 of 5 Set Length 1 Setting

Make a mistake? Scan the CANCEL barcode to abort and

not save the entry string. You can then start again at the

beginning.

CANCEL

DEFAULT

06 = Length 1 is 6 Characters

Datalogic DSM0400 User Manual
