Enter/Exit Programming Mode
192 DSM0400 Fixed Mount Area Imager Bar Code Reader
PDF417 Set Length 2
This feature specifies one of the bar code lengths for PDF417. Length 2 is the
maximum label length if in Variable Length Mode, or the second fixed length if
in Fixed Length Mode. Length includes the bar code’s check, data, and full-
ASCII shift characters. The length does not include start/stop characters. Char-
acters can be set from 01 to 2,710 characte
rs (pad with zeroes) in increments
of 01. Any value greater than 2,710 will be considered to be 2,710. Always use
four digits (e.g.: scan the barcodes '0', '0', '0', '2' for setting length = 2). For
more detailed programming instructions see, "Set Length" on
Chapter 4, Refer-
ences
.

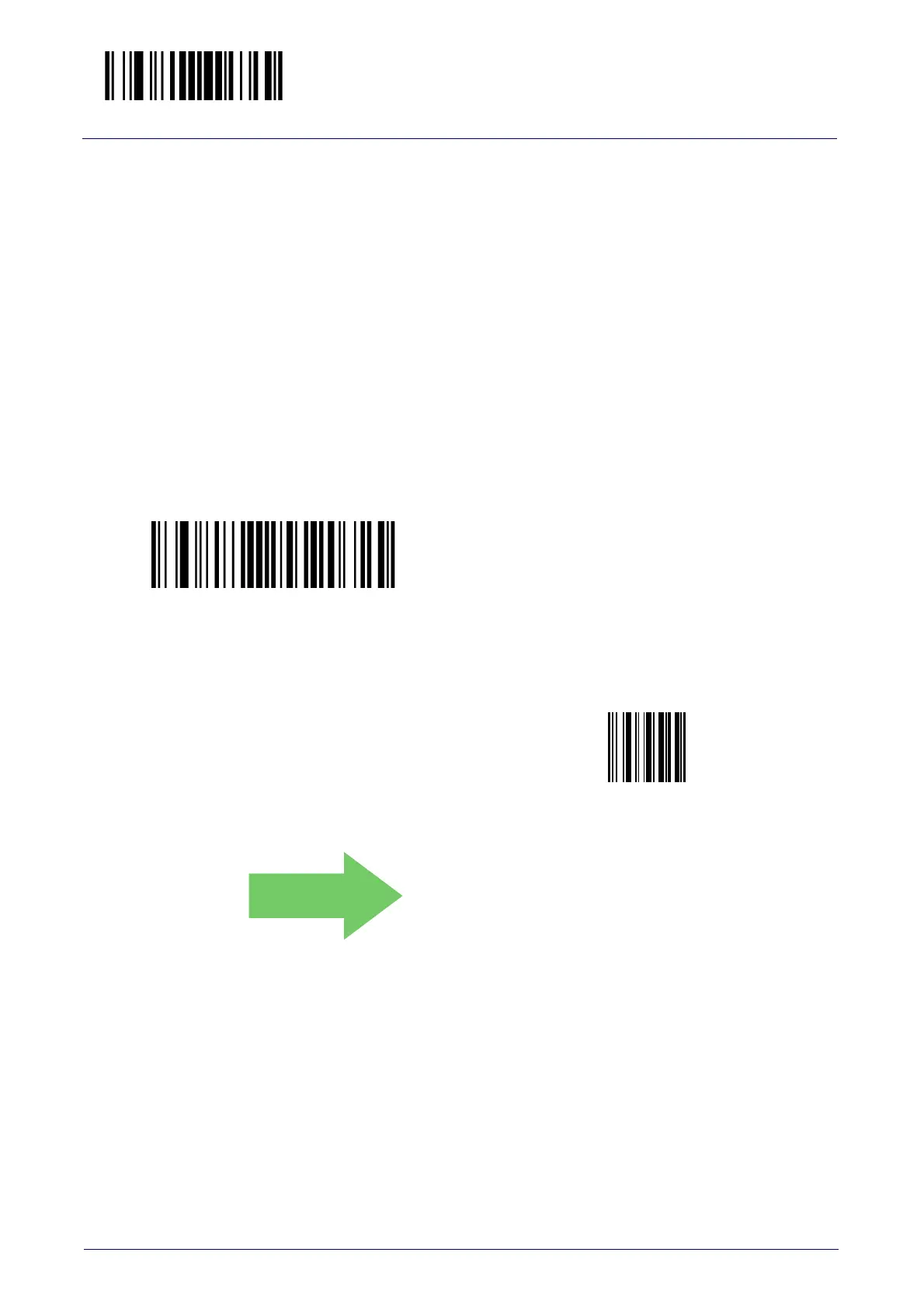

Select PDF417 Length 2 Setting
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code at
left followe
d by the digits from the Alphanumeric char-
acters in
Appendix C
representing your desired charac-
ter(s). End by scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort and
not save
the entry string. You can then start again at the
beginning.
CANCEL
Length 2 is 2,710 Characters
To Next Page
