Code 11 Set Length 1
This feature specifies one of the barcode lengths for Code 11. Length 1 is the
minimum label length if in
Variable Length on page 93 Mode, or the first fixed
length if in
Fixed Length on page 93 Mode. Length includes the barcode’s check
and data characters. The length can be set from 2 to 50 characters. For more
de
tailed programming instructions see, "Set Length" on
Chapter 4, References .
Table 15 provides some examples for setting Length 1.

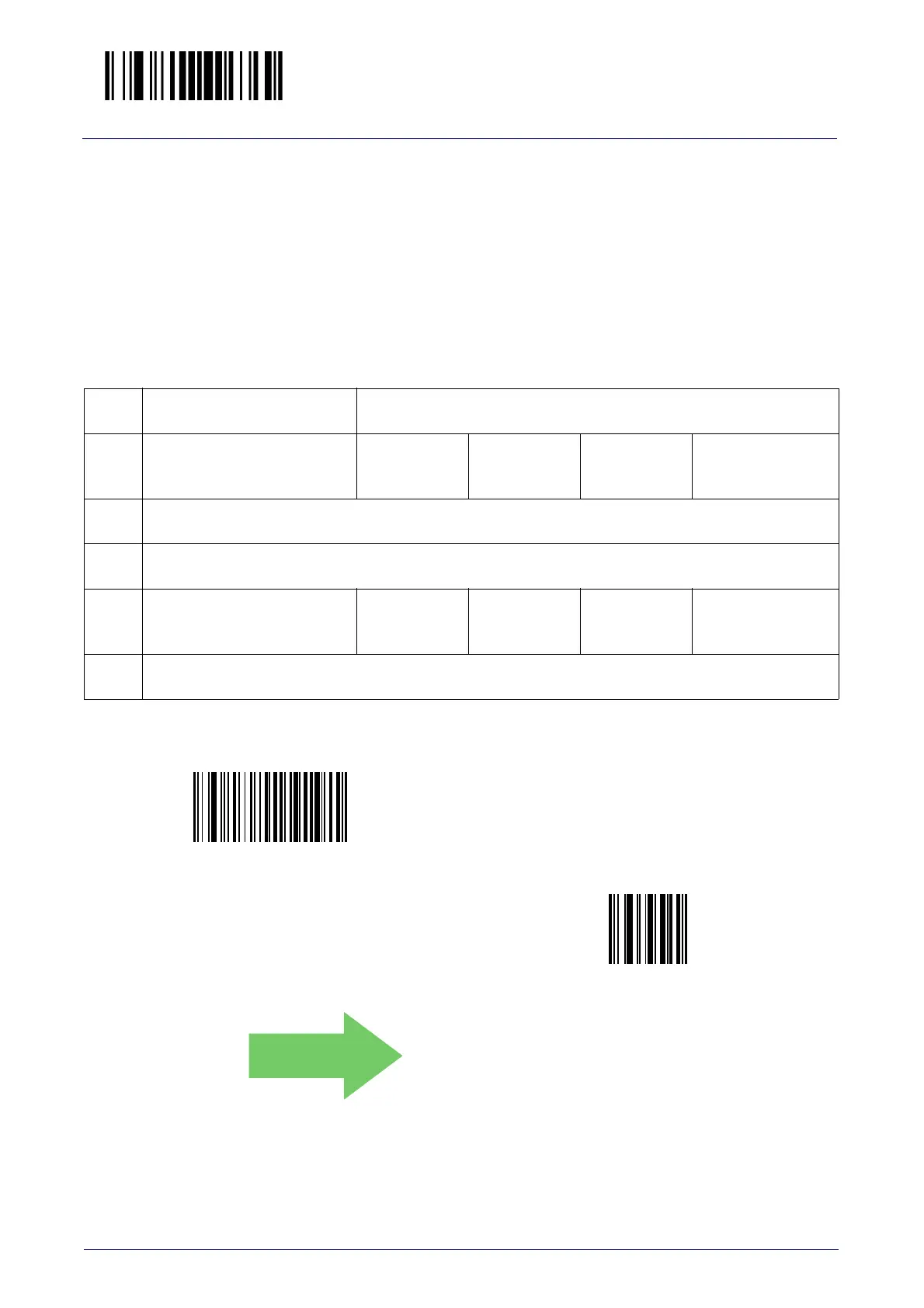

Table 15. Code 11 Length 1 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (pad with
leading z
eroes)
02 Characters 07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODE 11 LENGTH 1 SETTING
4
Scan Two Characters From
Appendix C
‘0’ and ‘2’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Code 11 Set Length 1 Setting
Make a mistake? Scan the CANCEL barcode to abort and
not save the entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
01 = Length 1 is 1 Character
