Chapter 5 Set up the Storage Center Software
158 Storage Center SC8000 Controller Deployment Guide
4 Confirmthatunusedportsarenotconfigured.
a Setthe PurposefieldtoUnknown.
b ConfirmthattheFaultDomainfieldissetto<none>.
c (Optional)TypeadescriptivenameintheUserAliasfield.
Configure iSCSI Ports — Virtual Port Mode

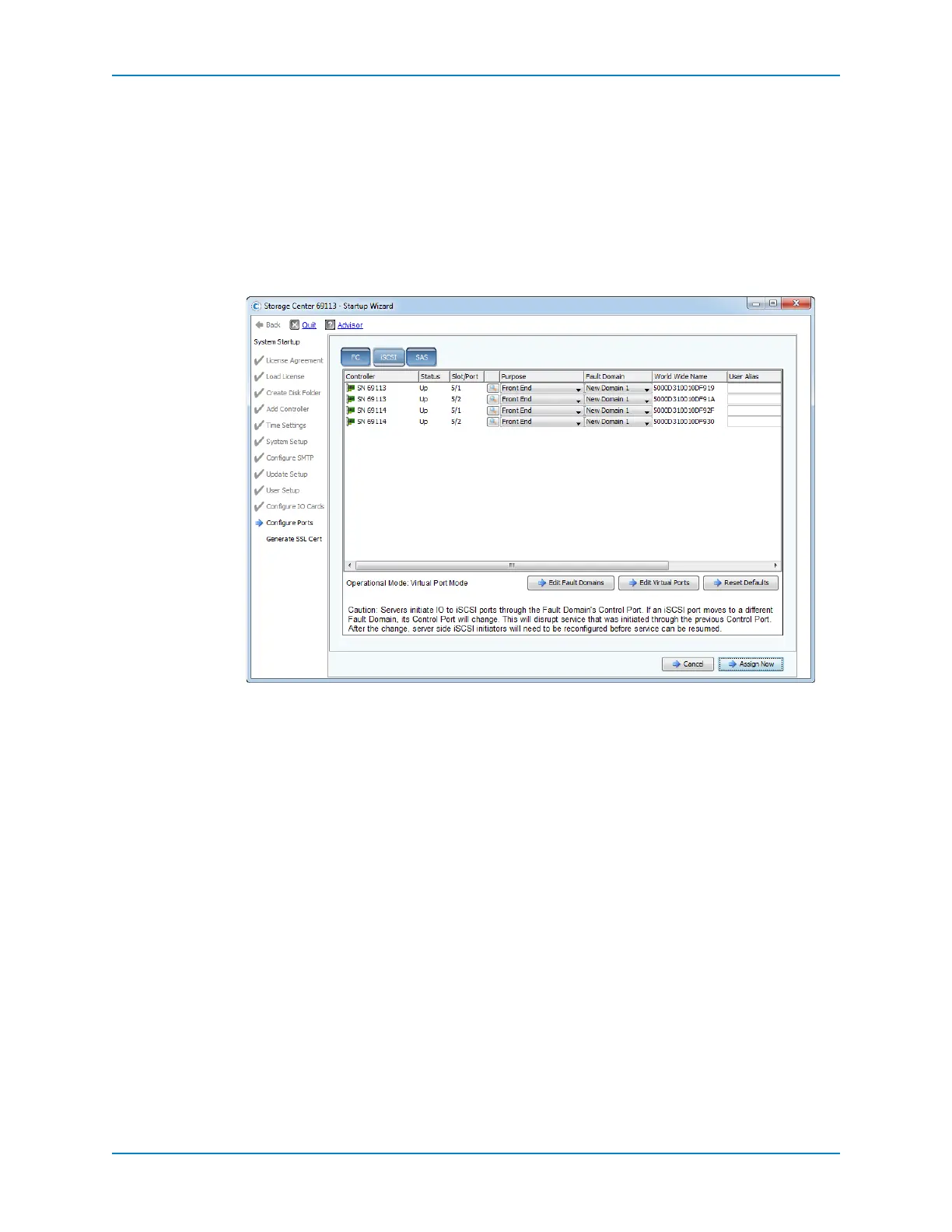

UsetheiSCSItabtoconfiguretheiSCSIportsinvirtualportmode.
1 ClicktheiSCSItab.
2 Create afaultdomainforeachiSCSInetwork.
a ClickEditFaultDomains.Thewizarddisplaysalistofthecurrentlydefinedfault
domains.
b ClickCreateFaultDomain.Adialogboxappears.
c Inthe
Namefield,typeanameforthefaultdomain.
d FromtheTypedrop‐downmenu,selectiSCSI.
e (Optional)IntheNotesfield,typeadescriptionofthefaultdomain.
f ClickContinue.Thedialogboxdisplaysasummary.
g ClickCreateNowtocreatethefaultdomain.
h Repeatstepsb–g
asneededtocreateadditionalfaultdomains.
i Whenyouarefinishedcreatingfaultdomains,clickReturn.TheiSCSItabappears.
3 Configureeachfront‐endiSCSIport.
a Setthe PurposefieldtoFrontEnd.
b SettheFaultDomainfieldtotheappropriatefaultdomainthatyoucreated.
c (Optional)Typeadescriptive
nameintheUserAliasfield.
