Example: Input the ladder diagram in the following figure
Mouse operation and keyboard function key (F1 to F12) operation

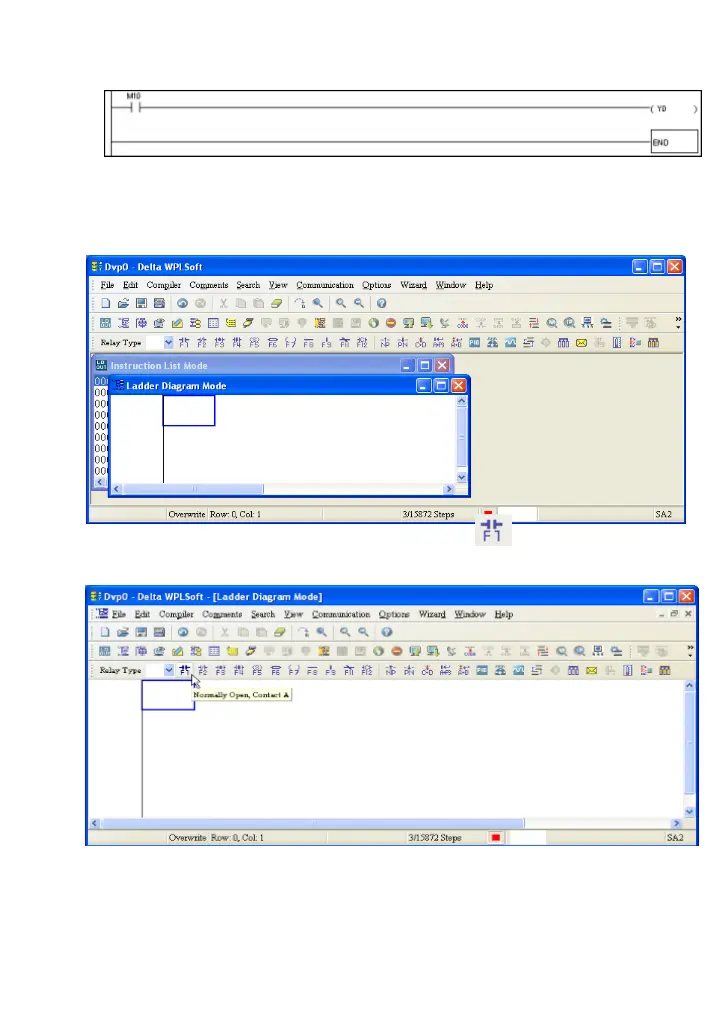

1. The following screen will appear after a new file has been established:
2. Use the mouse to click on the always-open switch icon
or press the function key
F1:
3. After the name of the input device and the comment dialog box have appeared, the
device name (such as "M"), device number (such as "10"), and input comments (such as
"auxiliary contact") can be selected; press the Confirm button when finished.
