Web – Click Port, LACP, Port Counters Information. Select a member port to display
the corresponding information.

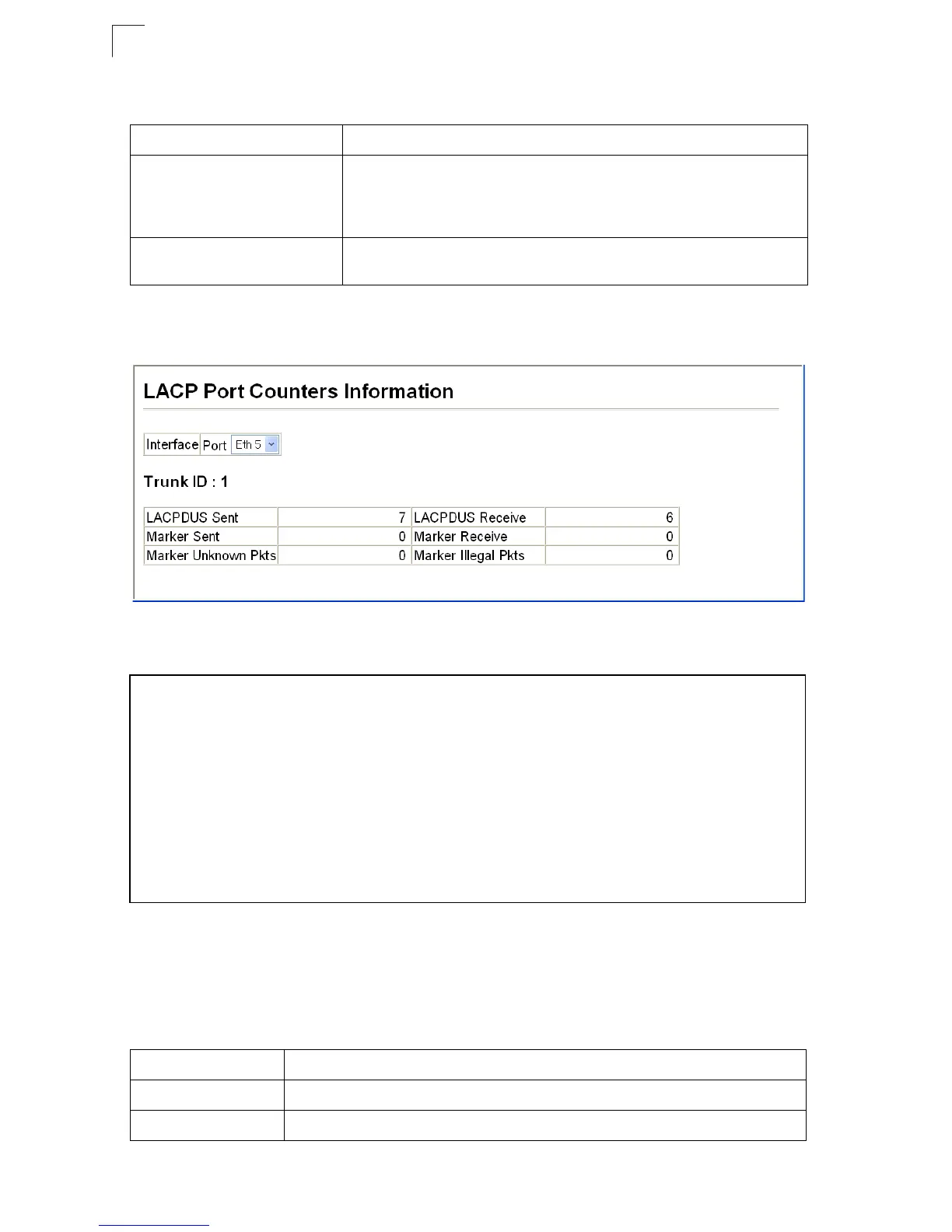

Figure 3-72 LACP - Port Counters Information
CLI – The following example displays LACP counters.
Displaying LACP Settings and Status for the Local Side
You can display configuration settings and the operational state for the local side of
an link aggregation.
Marker Unknown Pkts Number of frames received that either (1) Carry the Slow Protocols
Ethernet Type value, but contain an unknown PDU, or (2) are addressed
to the Slow Protocols group MAC Address, but do not carry the Slow
Protocols Ethernet Type.
Marker Illegal Pkts Number of frames that carry the Slow Protocols Ethernet Type value, but
contain a badly formed PDU or an illegal value of Protocol Subtype.
Console#show lacp counters 4-171
Port channel : 1
-------------------------------------------------------------------------
Eth 1/ 1
-------------------------------------------------------------------------
LACPDUs Sent: 91
LACPDUs Receive: 43
Marker Sent: 0
Marker Receive: 0
LACPDUs Unknown Pkts: 0
LACPDUs Illegal Pkts: 0
.
.
.
Table 3-9 LACP Internal Configuration Information
Field Description
Oper Key Current operational value of the key for the aggregation port.
Admin Key Current administrative value of the key for the aggregation port.
Table 3-8 LACP Port Counters (Continued)
Field Description
