DG-FS4526 User Manual
3-131
3
www.digisol.com
Configuration Settings for MSTP
• Max Instance Numbers – The maximum number of MSTP instances to which this
switch can be assigned.
• Region Revision – The revision for this MSTI. (Range: 0-65535; Default: 0)
• Region Name – The name for this MSTI. (Maximum length: 32 characters)
• Maximum Hop Count – The maximum number of hops allowed in the MST region
before a BPDU is discarded. (Range: 1-40; Default: 20)
Note:
The MST name and revision number are both required to uniquely identify an MST
region.
Web – Click Spanning Tree, STA, Configuration. Modify the required attributes, and
click Apply.

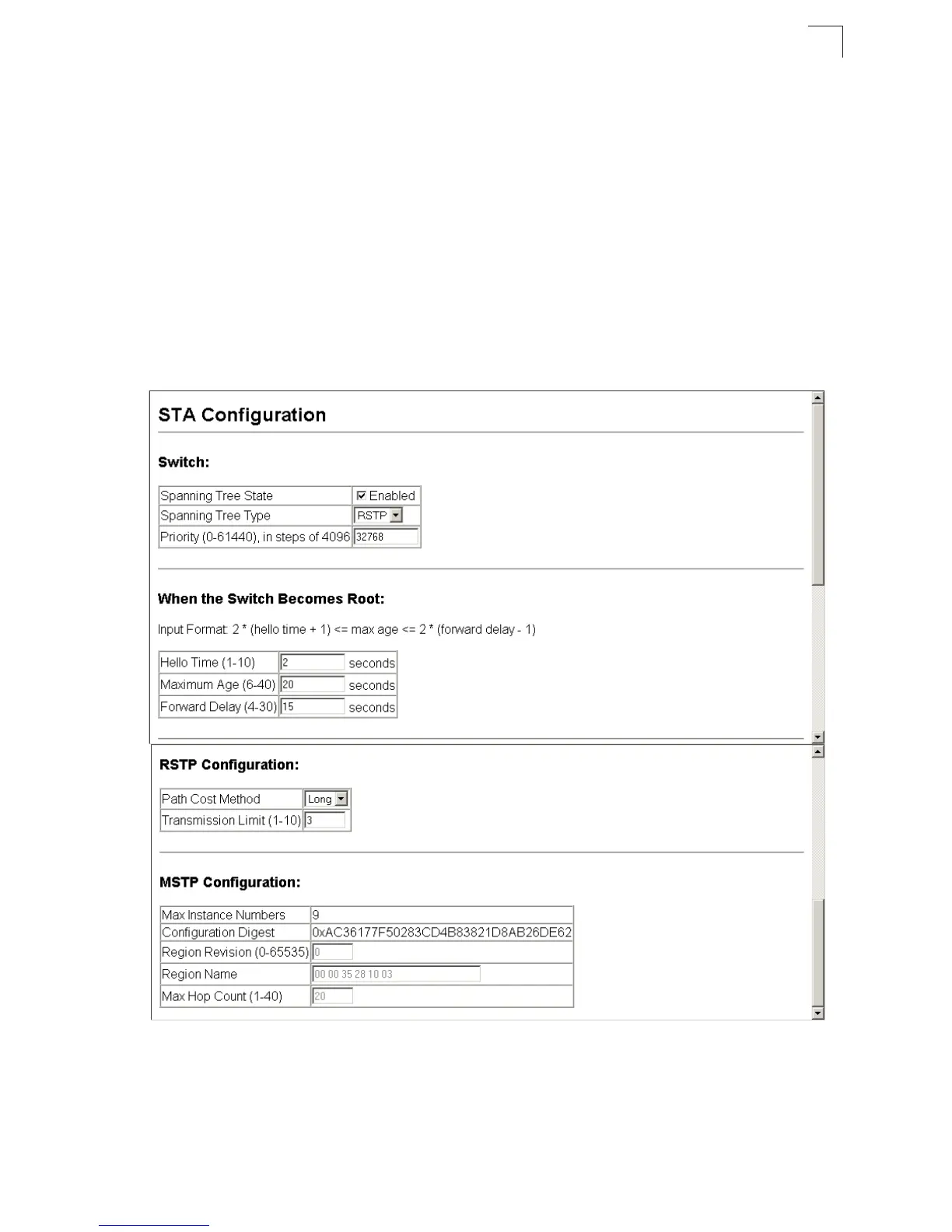

Figure 3-83 Configuring Spanning Tree
