Command Attributes
• Interface – Selects the port or trunk interface settings to display and modify.
• Priority – CoS value. (Range: 0-7, where 7 is the highest priority)
• Traffic Class
11
– Output queue buffer. (Range: 0-3, where 3 is the highest CoS
priority queue)
Web – Click Priority, Traffic Classes. The current mapping of CoS values to output
queues is displayed. Assign priorities to the traffic classes (i.e., output queues),
then click Apply.

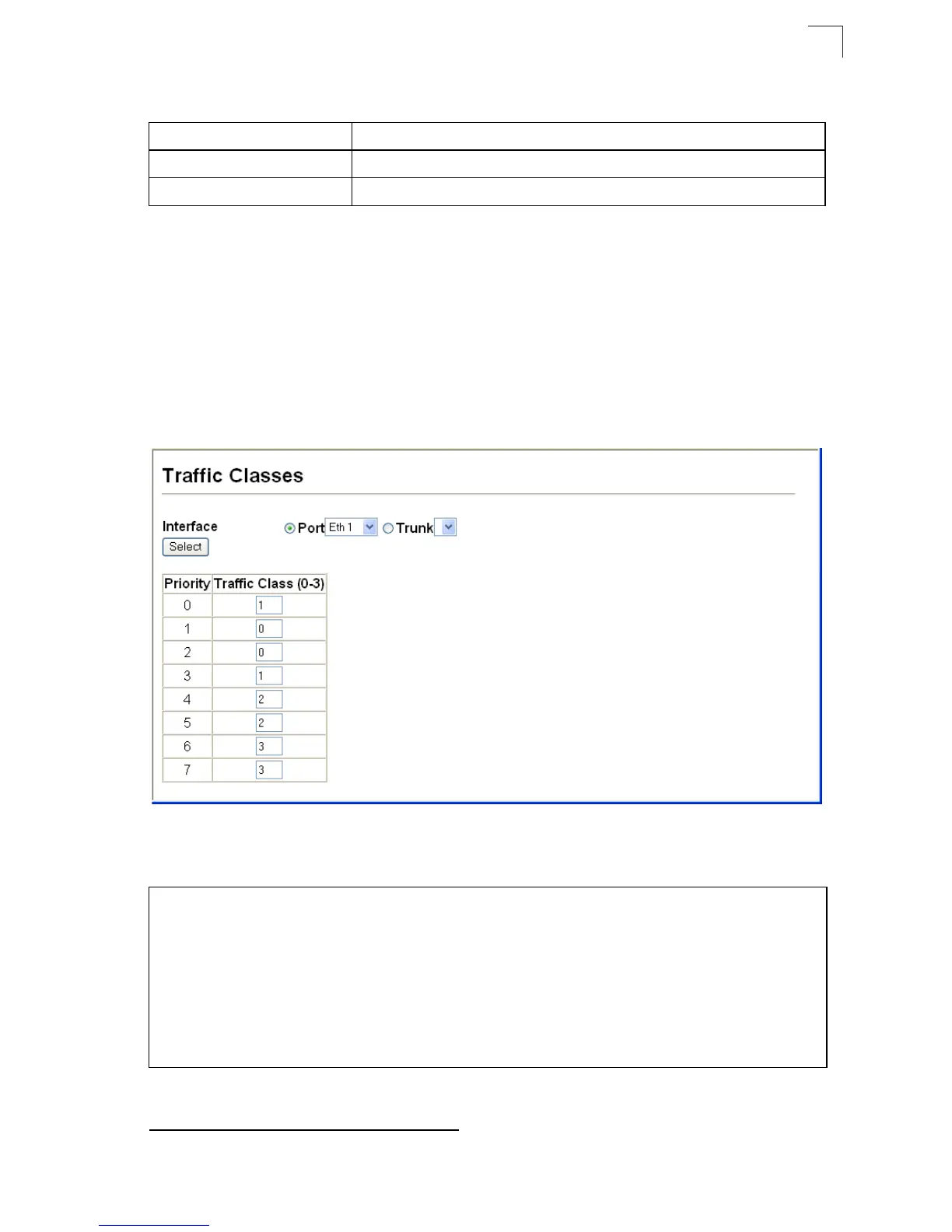

Figure 3-113 Traffic Classes
CLI – The following example shows how to change the CoS assignments.
6 Voice, less than 10 milliseconds latency and jitter
7 Network Control
11. CLI shows Queue ID.
Console(config)#interface ethernet 1/1 4-150
Console(config-if)#queue cos-map 0 0 4-250
Console(config-if)#queue cos-map 1 1
Console(config-if)#queue cos-map 2 2
Console(config-if)#end
Console#show queue cos-map ethernet 1/1 4-252
Information of Eth 1/1
CoS Value: 0 1 2 3 4 5 6 7
Priority Queue: 0 1 2 1 2 2 3 3
Console#
