Web – Click VLAN, Protocol VLAN, Configuration.

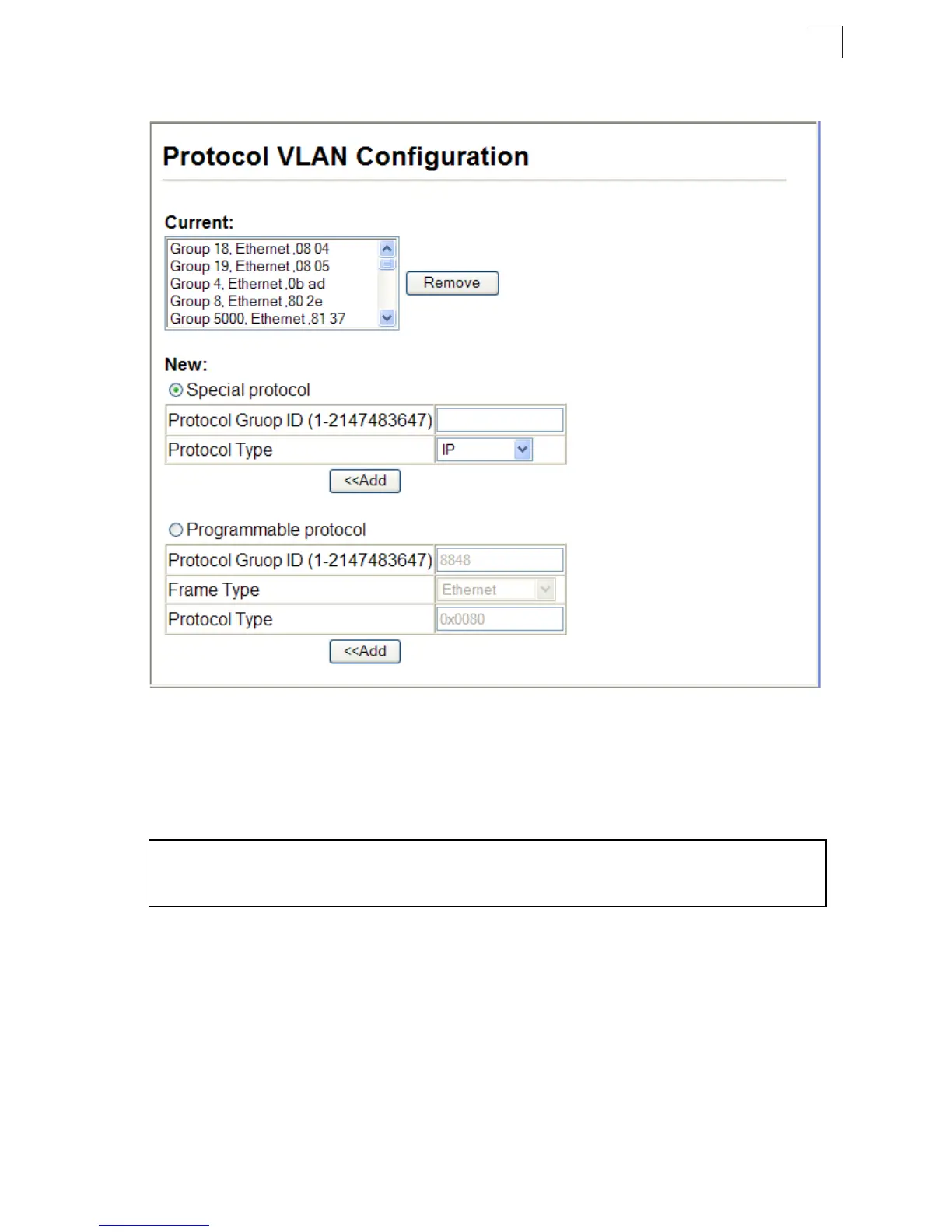

Figure 3-103 Protocol VLAN Configuration
CLI - This example shows the switch configured with Protocol VLANs 1 and 2.
Protocol VLAN 1 has been configured with the fixed and preconfigured IP
parameters. Protocol VLAN 2 has been configured based on user defined input for
IPv6 traffic (0x86DD) over ethernet.
Configuring Protocol VLAN Interfaces
Use the Protocol VLAN Port Configuration menu to set the protocol VLAN settings
per port.
Command Attributes
• Interface – Port or Trunk indentifier.
• Protocol Group ID – Protocol Group ID assigned to the Protocol VLAN Group.
(Range: 1-2147483647)
• VLAN ID – VLAN to which matching protocol traffic is forwarded. (Range: 1-4094)
Console(config)#protocol-vlan protocol-group 1 add protocol-type ip
Console(config)#protocol-vlan protocol-group 2 add protocol-group 2 add
protocol-type 86DD frame-type ethernet 4-243
