Digisol DG-FS4526 - Figure 3-80 Configuring a Dynamic Address Table

Configuring the Switch
3-124
3
www.digisol.com
Web – Click Address Table, Dynamic Addresses. Specify the search type (i.e., mark
the Interface, MAC Address, or VLAN checkbox), select the method of sorting the
displayed addresses, and then click Query.

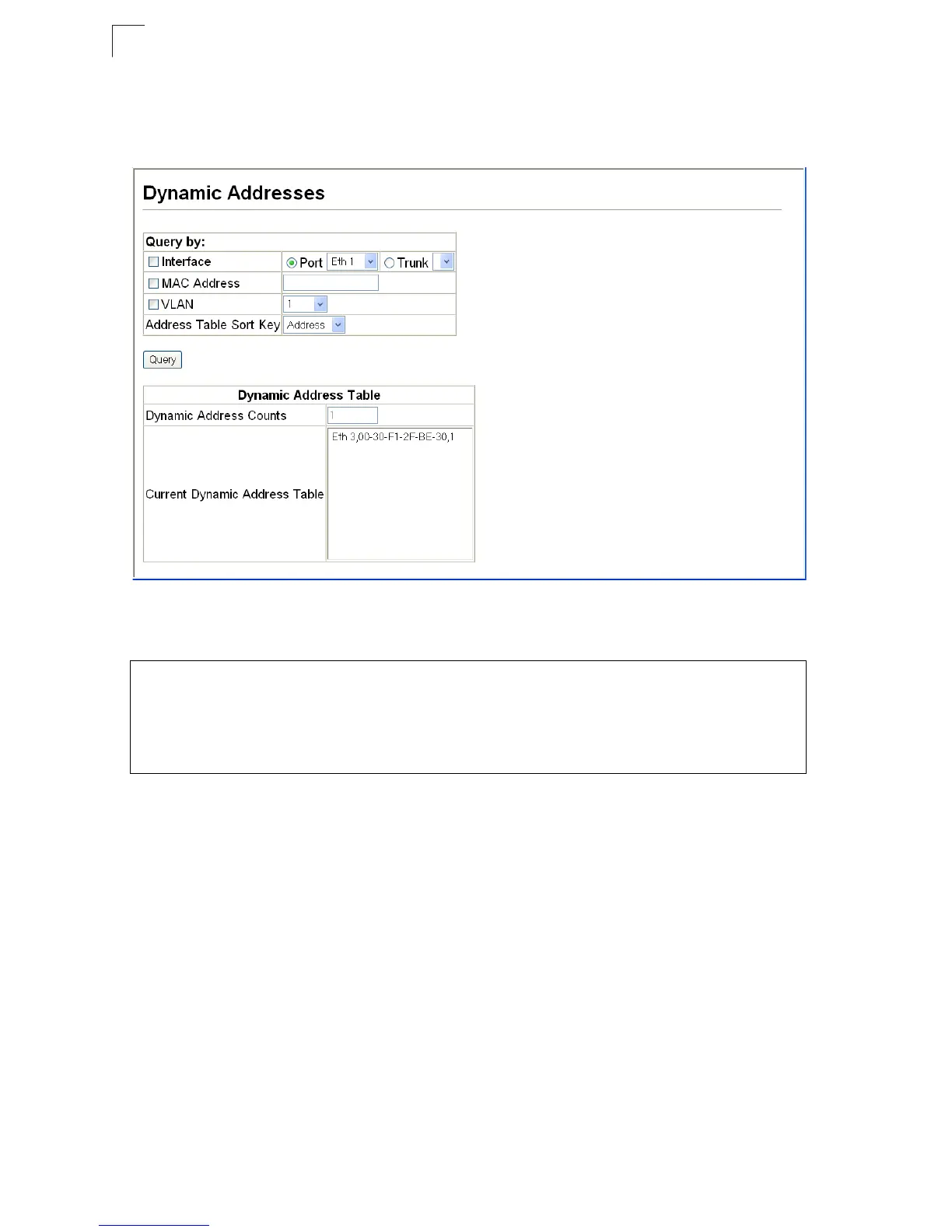

Figure 3-80 Configuring a Dynamic Address Table
CLI – This example also displays the address table entries for port 1.
Console#show mac-address-table interface ethernet 1/1 4-176
Interface Mac Address Vlan Type
--------- ----------------- ---- -----------------
Eth 1/ 1 00-11-22-33-44-55 1 Permanent
Eth 1/ 1 00-30-F1-2F-BE-30 2 Learned
Console#
