CLI – Set the threshold, then enable broadcast control on any interface. The
following sets broadcast control threshold at 500 kbytes per second, and then
enables broadcast storm control for port 1.
Configuring Port Mirroring

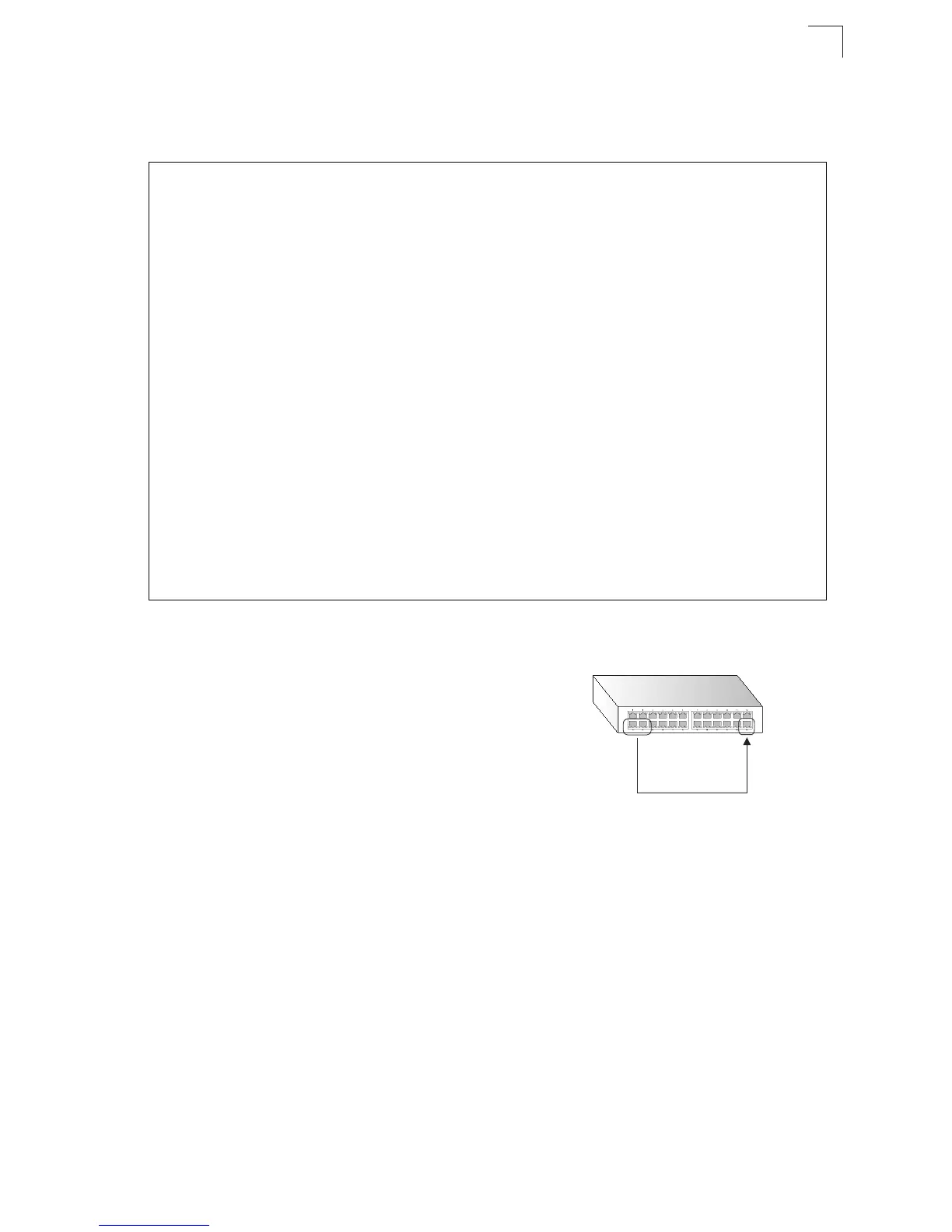

You can mirror traffic from any source port to a
target port for real-time analysis. You can then
attach a logic analyzer or RMON probe to the
target port and study the traffic crossing the
source port in a completely unobtrusive manner.
Command Usage
• Monitor port speed should match or exceed source port speed, otherwise traffic
may be dropped from the monitor port.
• All mirror sessions must share the same destination port.
• When mirroring port traffic, the target port must be included in the same VLAN as
the source port.
Command Attributes
• Mirror Sessions – Displays a list of current mirror sessions.
• Source Port – The port whose traffic will be monitored. (Range: 1-26)
• Type – Allows you to select which traffic to mirror to the target port, Rx (receive),
or Tx (transmit). (Default: Rx)
• Target Port – The port that will mirror the traffic on the source port.
(Range: 1-26)
Console(config)#broadcast byte-rate 100 level 5 4-156
Console(config)#interface ethernet 1/1 4-150
Console(config-if)#switchport broadcast 4-156
Console(config-if)#end
Console#show interfaces switchport ethernet 1/1 4-159
Information of Eth 1/1
Broadcast Threshold: Enabled, scale:100K level:5 octets/second
LACP Status: Disabled
Ingress Rate Limit: Disabled, scale:10M level:1
Egress Rate Limit: Disabled, scale:10M level:1
VLAN Membership Mode: Hybrid
Ingress Rule: Enabled
Acceptable Frame Type: All frames
Native VLAN: 1
Priority for Untagged Traffic: 0
GVRP Status: Disabled
Allowed VLAN: 1(u),4093(t),
Forbidden VLAN:
Private-VLAN Mode: NONE
Private-VLAN host-association: NONE
Private-VLAN Mapping: NONE
802.1Q-tunnel Status: Disable
802.1Q-tunnel Mode: NORMAL
802.1Q-tunnel TPID: 8100(Hex)
Console#
