Mapping CoS Values to ACLs
Use the ACL CoS Priority page to set the output queue for packets matching a
configured ACL rule. For information on configuring ACLs, see “Access Control
Lists” on page 3-89.
Command Usage
You must configure an ACL before you can map a CoS queue to the rule.
Command Attributes
• Port – Port identifier.
• Name – Name of a configured ACL.
• Type – Type of ACL (IP or MAC).
• CoS Priority – CoS queue used for packets matching the ACL rule. (Range: 0-3)
Web – Click Priority, ACL CoS Priority. Select a port and an ACL rule, then specify a
CoS queue. Click Add.

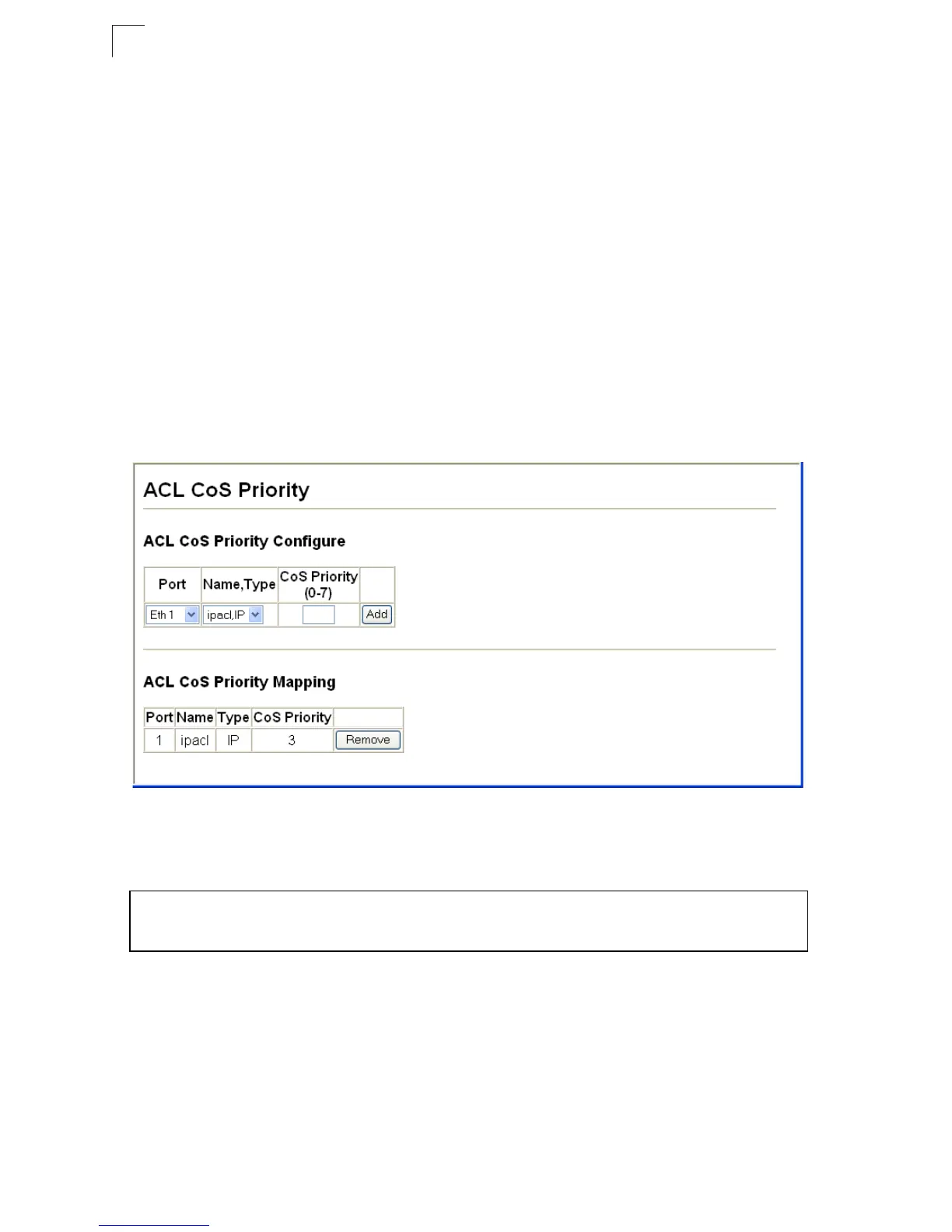

Figure 3-124 Mapping CoS Values to ACLs
CLI – This example assigns the CoS queue 3 to packets matching rules within the
specified ACL on port 1.
Console(config)#interface ethernet 1/1 4-150
Console(config-if)#map access-list ip bill cos 3 4-257
Console(config-if)#
