Configuring the Switch
3-204
3
www.digisol.com
address OUI numbers must be configured in the Telephony OUI list so that the
switch recognizes the traffic as being from a VoIP device.
• 802.1ab – Uses LLDP to discover VoIP devices attached to the port. LLDP
checks that the “telephone bit” in the system capability TLV is turned on. See
“Link Layer Discovery Protocol” on page 3-170 for more information on LLDP.
• Priority – Defines a CoS priority for the port traffic on the Voice VLAN. The priority
of any received VoIP packet is overwritten with the new priority when the Voice
VLAN feature is active for the port.
Web – Click QoS, VoIP Traffic Setting, Port Configuration. Set the mode for a VoIP
traffic port, select the detection mechanism to use, and specify the VoIP traffic
priority. Click Apply.

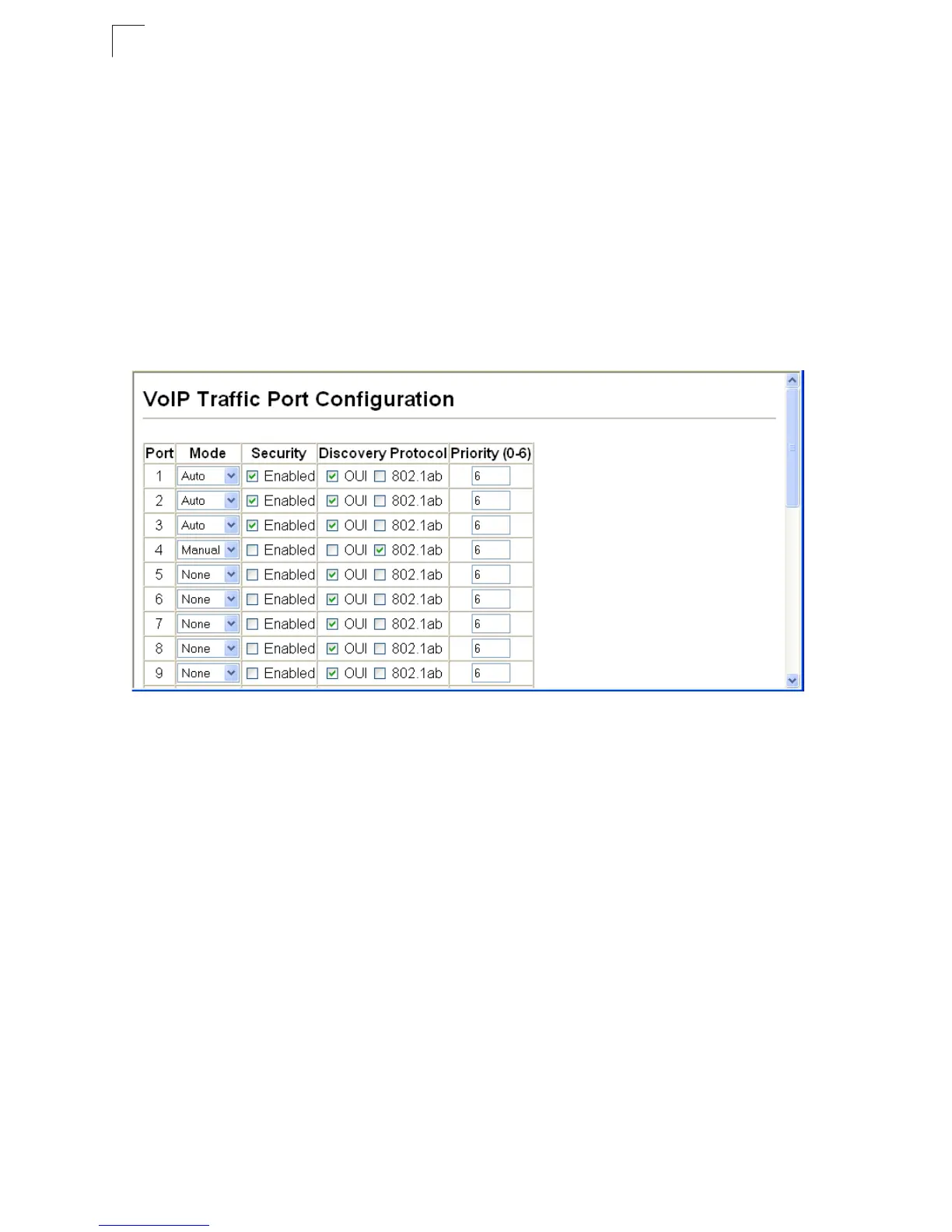

Figure 3-129 VoIP Traffic Port Configuration
