• VLAN – A VLAN. (Range:1-4094)
• Add – Adds specified criteria to the class. Up to 16 items are permitted per class.
• Remove – Deletes the selected criteria from the class.
Web – Click QoS, DiffServ, then click Add Class to create a new class, or Edit Rules
to change the rules of an existing class.

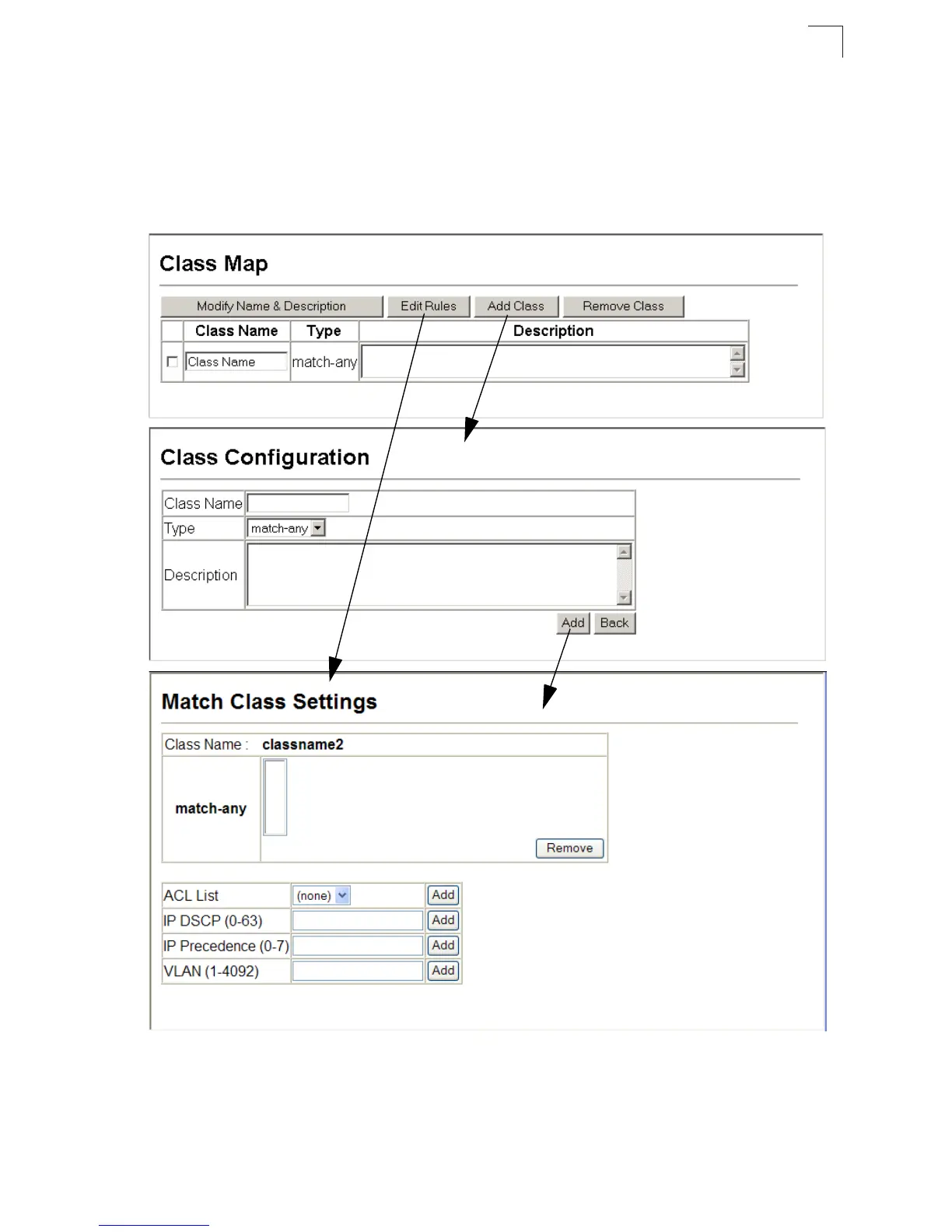

Figure 3-125 Configuring Class Maps
