Web* – Click Priority, IP TOS Priority. Select an IP TOS value in the IP TOS Priority
Table, enter a queue number in the Class of Queue Service Value field, and then
click Apply.

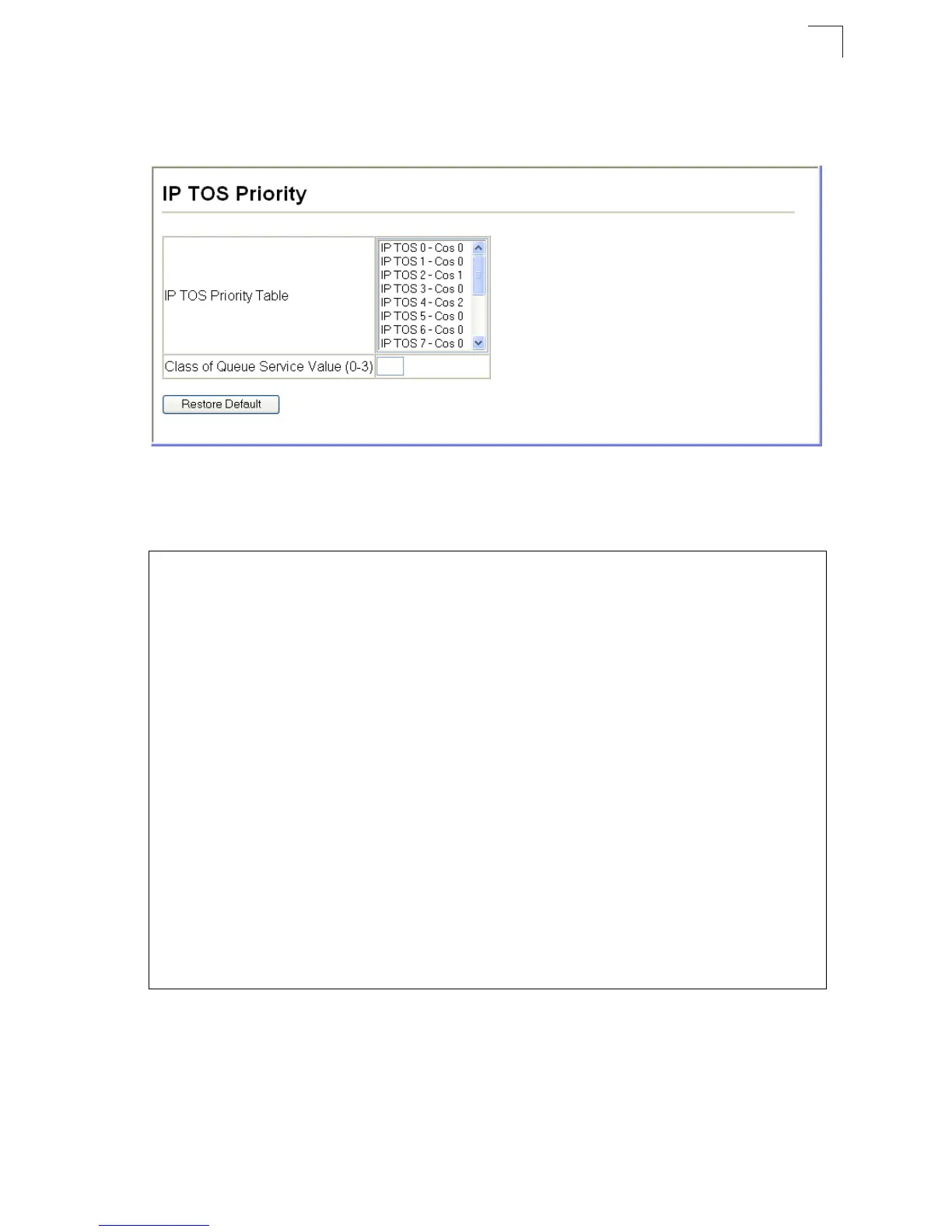

Figure 3-123 Mapping IP TOS to Class of Service Queues
CLI* – The following example globally enables IP TOS priority on the switch, maps
IP TOS value 2 to CoS queue 2, and then displays all the IP TOS settings.
* Mapping specific values for IP TOS applies to all interfaces on the switch.
Console(config)#map ip tos 4-256
Console(config)#map ip tos 2 cos 2 4-256
Console(config)#end
Console#show map ip tos 4-259
tos Mapping Status: Enabled
TOS COS
--- ---
0 0
1 0
2 2
3 0
4 2
5 0
6 0
7 0
8 3
9 0
10 0
11 0
12 0
13 0
14 0
15 0
Console#
