(58) Compress low/reverse piston return spring
and remove snap ring (Fig. 68).
(59) Remove low/reverse spring compressor tool
and low reverse piston return spring (Fig. 69).
(60) Using a suitable punch , drive out park guide
bracket pivot shaft plug (Fig. 70).

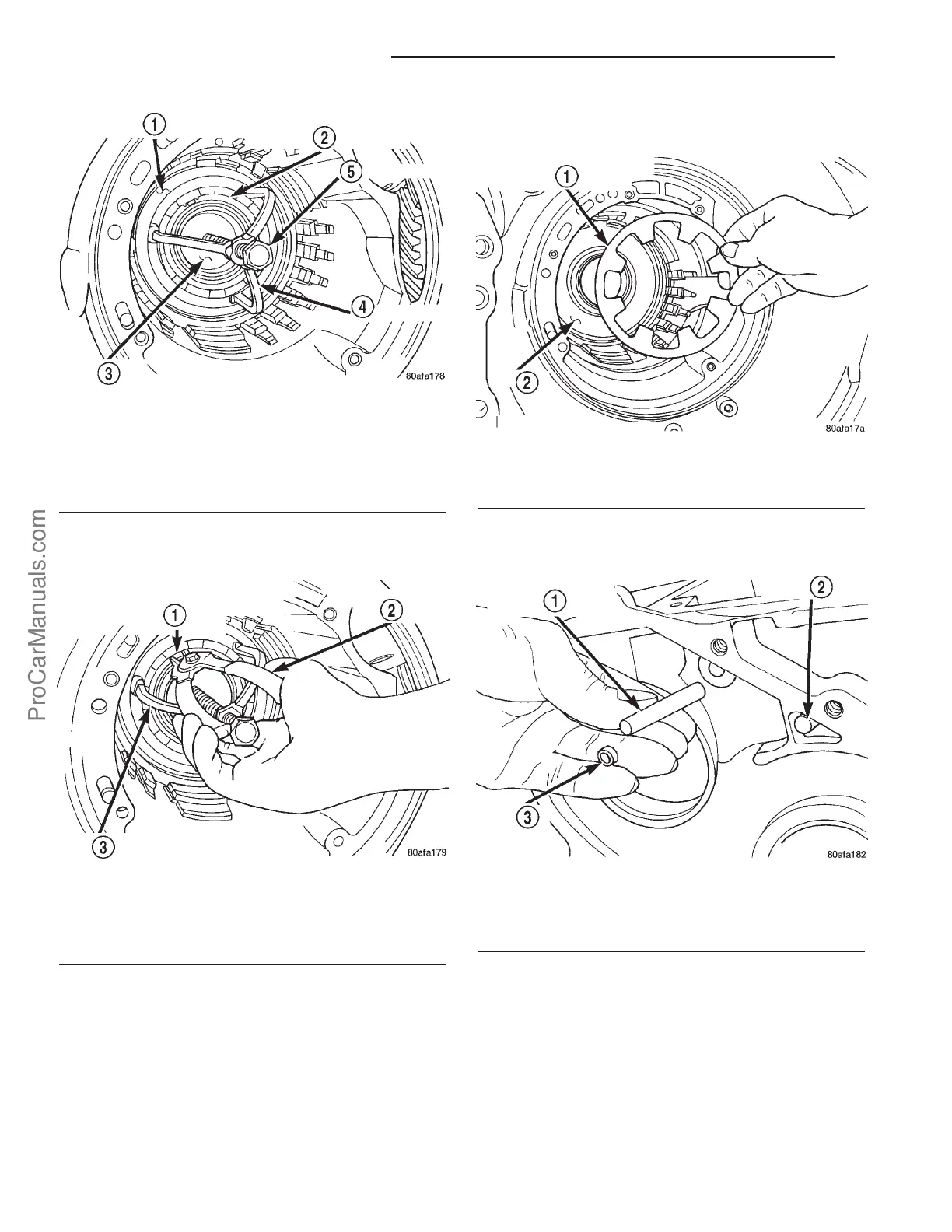

Fig. 67 Compressor Tool in Use
1 - LOW/REVERSE CLUTCH RETURN SPRING
2 - SNAP RING (INSTALL AS SHOWN)
3 - TOOL 6057
4 - TOOL 5059
5 - TOOL 5058–3
Fig. 68 Remove Snap Ring
1 - SNAP RING OPENING MUST BE BETWEEN SPRING
LEVERS (AS SHOWN)
2 - SNAP RING PLIERS
3 - TOOL 6057
Fig. 69 Low/Reverse Piston Return Spring
1 - LOW/REVERSE PISTON RETURN SPRING
2 - PISTON
Fig. 70 Remove Anchor Shaft and Plug
1 - GUIDE BRACKET ANCHOR SHAFT
2 - PIVOT SHAFT
3 - ANCHOR SHAFT PLUG
21s - 92 41TE AUTOMATIC TRANSAXLE PL
41TE AUTOMATIC TRANSAXLE (Continued)
