| WDS Setup Examples
Basic WDS Link Between Two APs
– 241 –

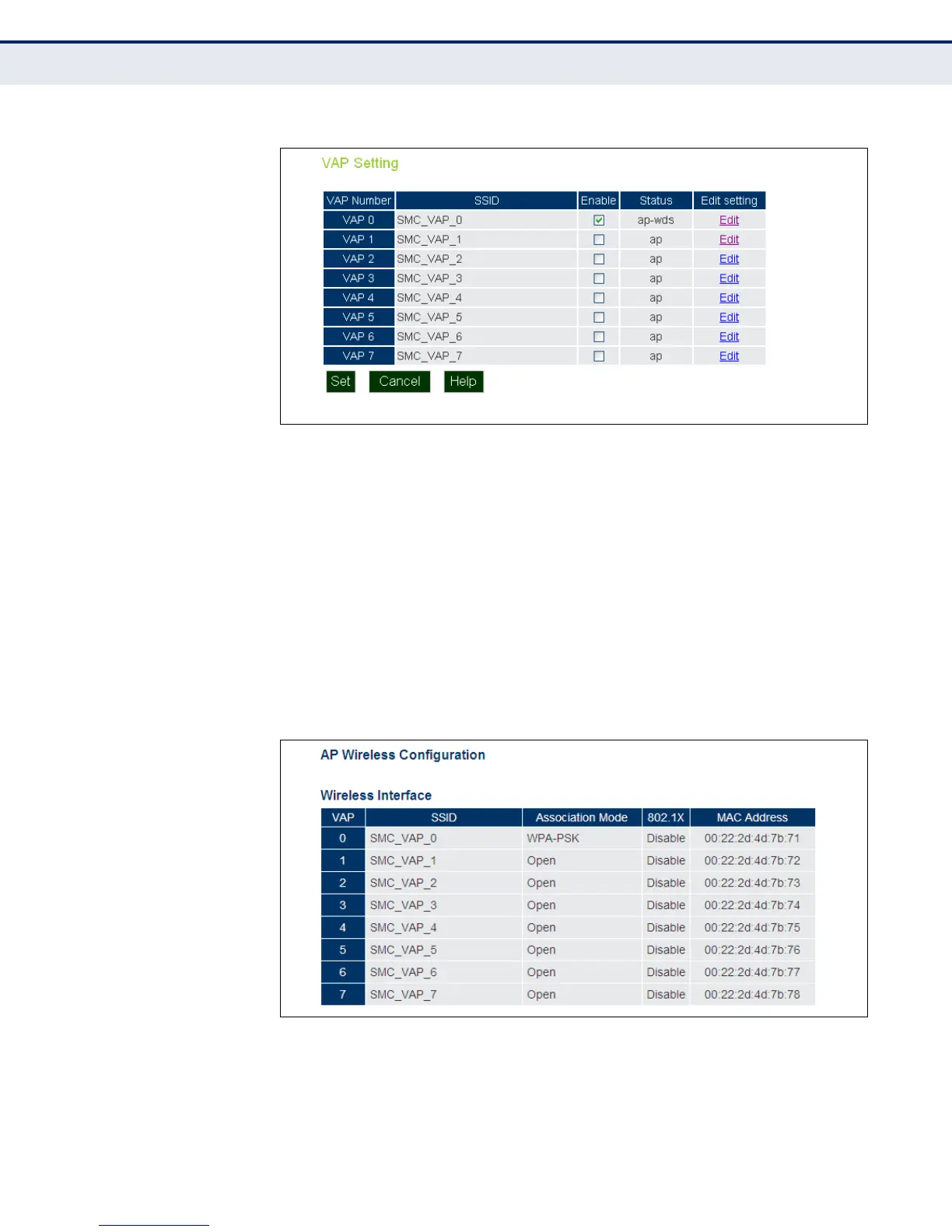

Figure 61: WDS Example — Access Point A WDS-AP VAP Setting
6. Click the Save Config button to retain the configuration set up when the
AP is restarted.
ACCESS POINT B CONFIGURATION
1. Go to the Wireless>VAP Settings page and click Edit to configure VAP 0.
2. In the VAP Basic Setting, select WDS-STA for the Mode.
3. Enter the SSID and MAC address of VAP 0 on Access point A. The SSIDs
and MAC addresses of VAP interfaces are displayed on the
Information>AP Status page (see “AP Wireless Configuration” on
page 105).
Figure 62: WDS Example — Access Point A VAP SSID and MAC
4. For security on the WDS link, select WPA-PSK or WPA2-PSK, then
configure the same encryption type and security key as in the Access
Point A configuration.
To Next Page
