A PPENDIX D | Cables and Pinouts
Console Port Pin Assignments
– 254 –
CONSOLE PORT PIN ASSIGNMENTS
The RJ-45 console port on the front panel of the access point is used to
connect to the access point for out-of-band console configuration to a DB-9
connector on a PC. The command-line configuration program can be
accessed from a terminal, or a PC running a terminal emulation program.
The pin assignments and cable wiring used to connect to the console port
are provided in the following table.

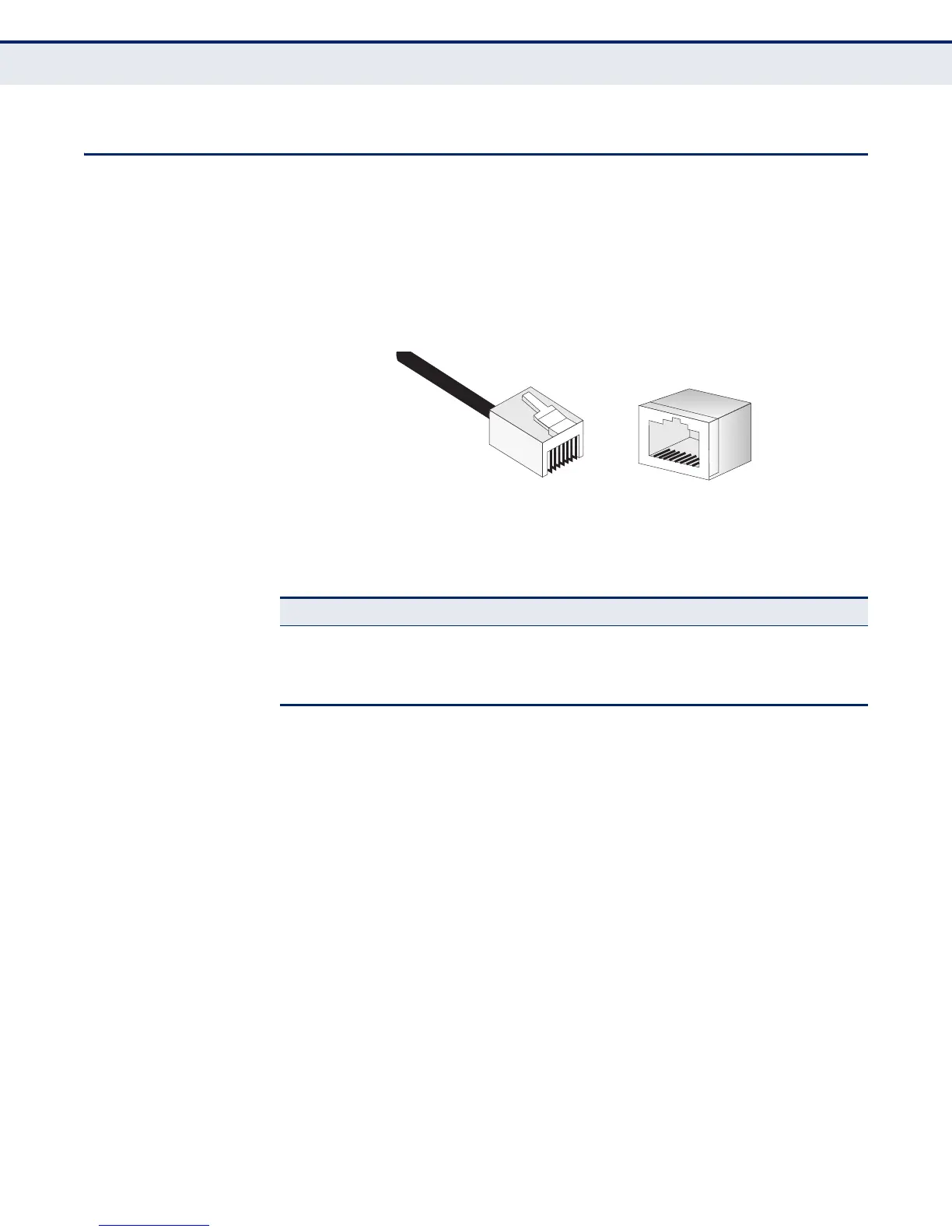

Figure 70: RJ-45 Console
WIRING MAP FOR SERIAL CABLE
Table 33: Console Port Pinouts
RJ-45 Pin Signal Name DB-9 Pin
6 RXD <---------RXD ------------ 3 TxD
3 TXD -----------TXD ----------> 2 RxD
5 SGND -----------SGND ---------- 5 SGND
8
1
1
8
