STP-iXA4507 series Turbomolecular Pump
MT-91E-001-0
Page 26
INSTALLATION OF THE STP PUMP
PAG
E
26
3
Use lifting devices when installing the STP pump on the equipment. A device to jack up the STP
pump must withstand a load of five times or more than the weight of the STP pump.

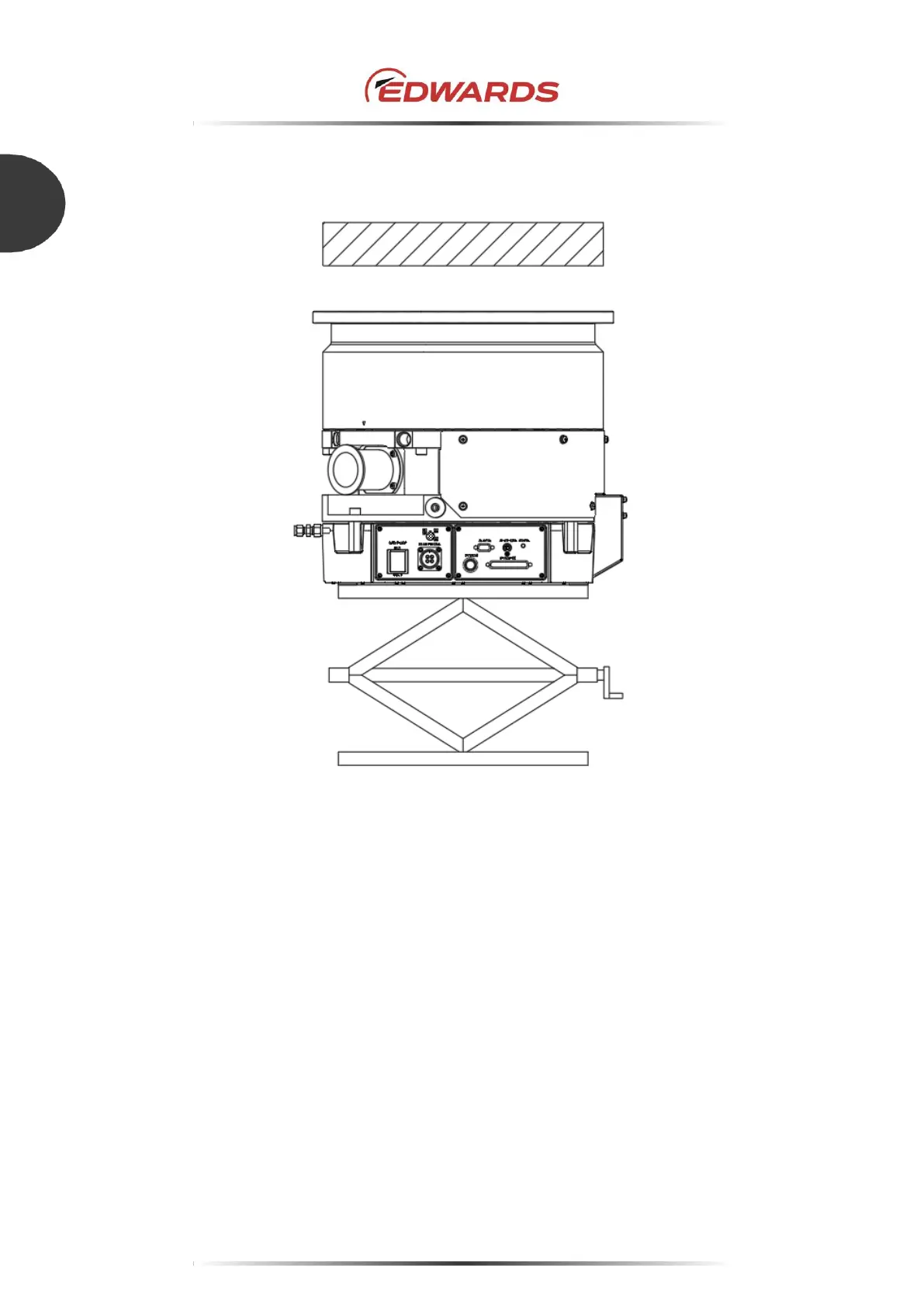

Figure 13 - Jacking up the STP pump
