Edwards STP-iXA4507 Series User Manual

STP-iXA4507 series Turbomolecular Pump
MT-91E-001-0
Page 27
INSTALLATION OF THE STP PUMP
3
When jacking up the bottom of the control unit, place the STP pump on a larger table than the base
size [Figure 14 (A)]. Jacking up the bottom plate [Figure 14 (B)] may deform the plate and break the
internal parts. A device to jack up the STP pump should withstand a load of five times or more than
the weight of the STP pump.

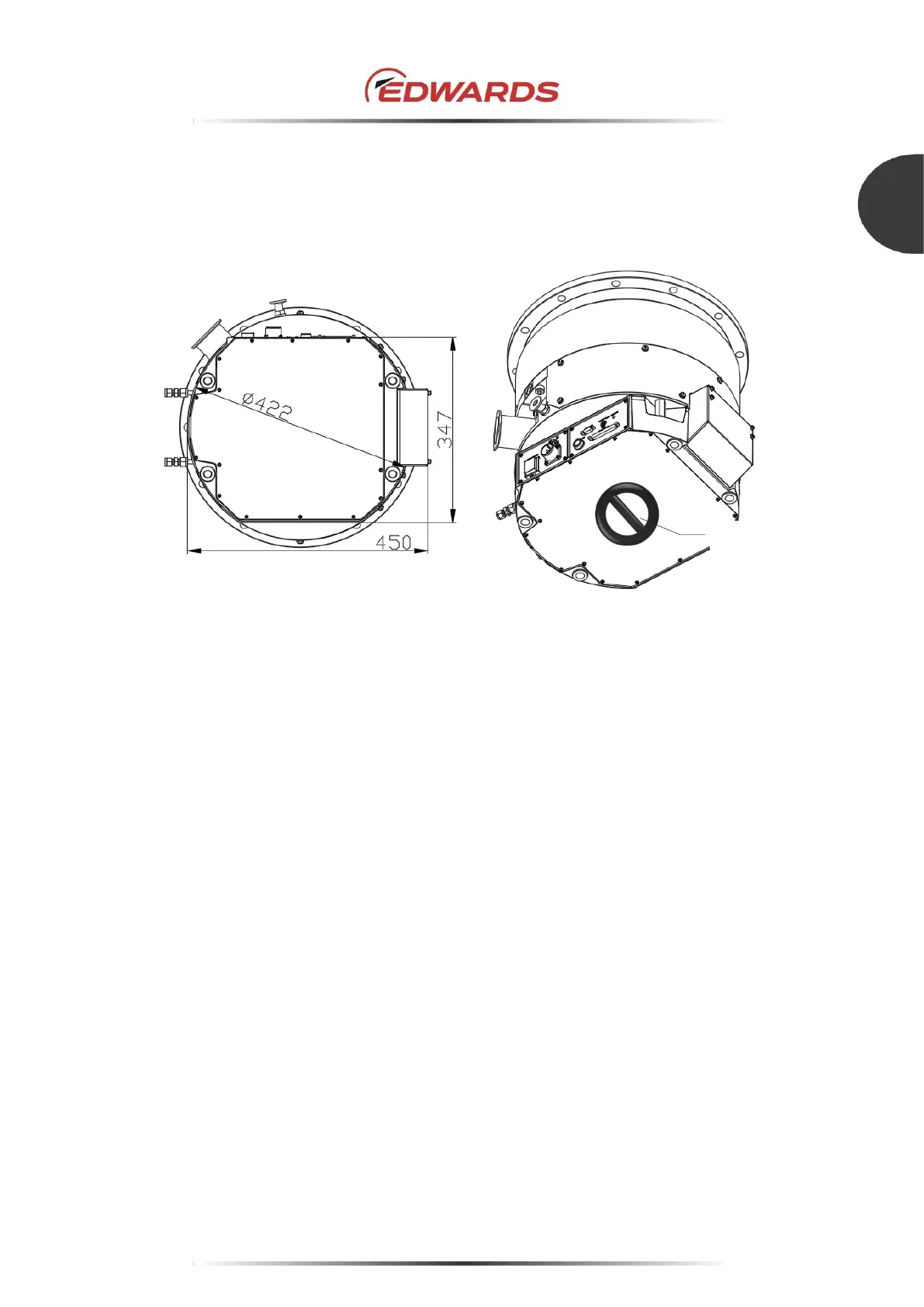

(A) Base size
(B) Prohibition part of Jacking up
Figure 14 - Control unit bottom face
Prohibition part of
Jacking up
