ESR series service routers.ESR-Series. User manual
48
•
•
№ Front
panel
element
Description
Master Indicator of failover modes operation.
Fan Fan operation LED.
RPS Redundant power supply LED.
8 F Functional key that reboots the device and resets it to factory default configuration:
Pressing the key for less than 10 seconds reboots the device;
Pressing the key for more than 10 seconds resets the terminal to factory settings.
9 Console Console port RS-232 for local management of the device.
ESR-1000 front panel
The front panel layout is depicted in 19.

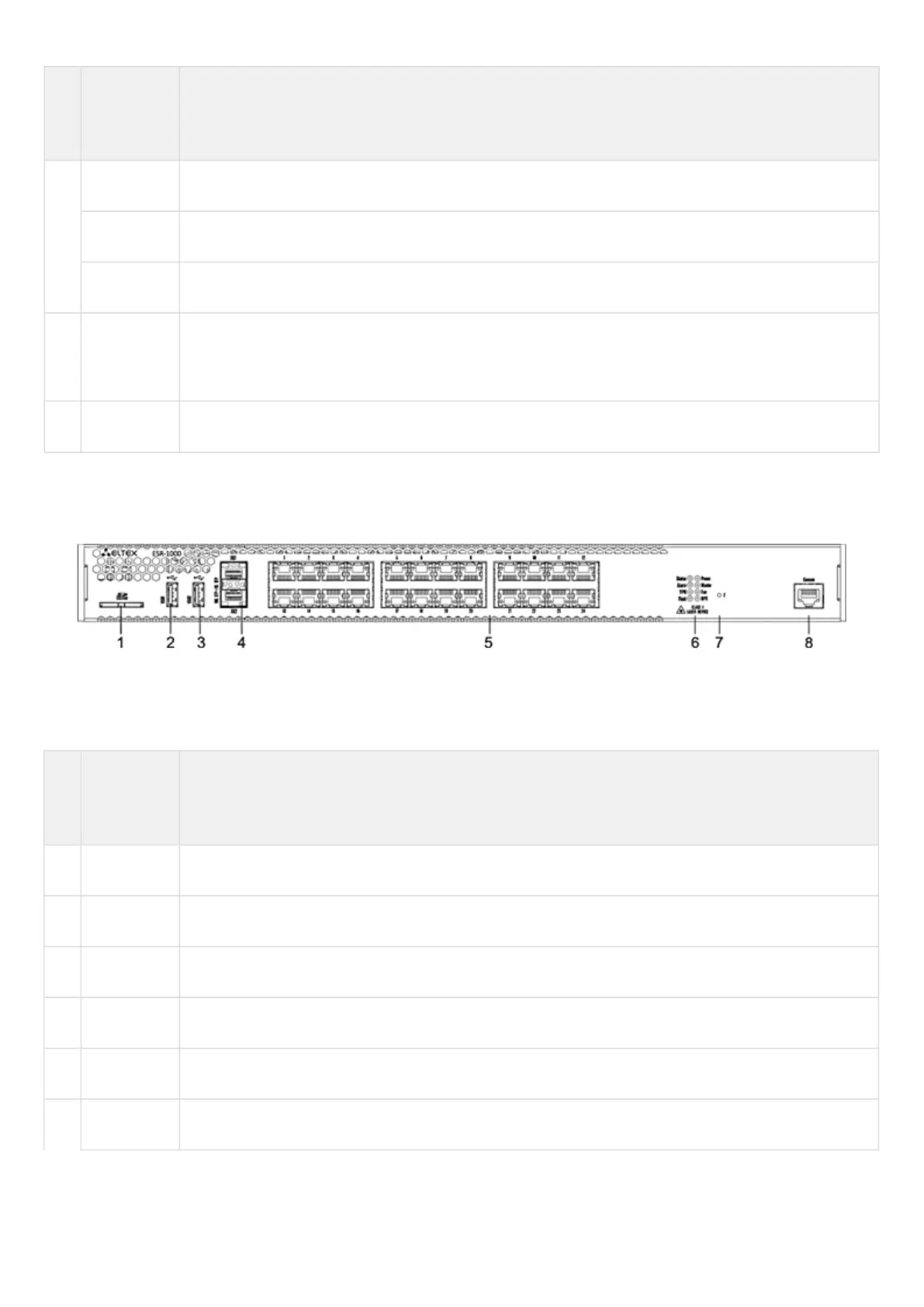

Figure 19 – ESR-1000 front panel
Table 19 lists sizes, LEDs and controls located on ESR-1000 front panel.
Table 19 – Description of connectors, LEDs and controls located on ESR-1000 front panel
№ Front
panel
element
Description
1 SD SD-card connector.
2 USB1 Port for USB device connection.
3 USB2 Port for USB device connection.
4 XG1, XG2 Slots for 10G SFP+/1G SFP transceivers.
5 [1 .. 24] 24 ports of Gigabit Ethernet 10/100/1000BASE-T (RJ-45).
6 Status Current device status LED.
