ESR series service routers.ESR-Series. User manual
•
•
№ Front
panel
element
Description
Alarm Alarm LED.
VPN Active VPN sessions indicator.
Flash Activity indicator of exchange with data storages (SD-card or USB Flash).
Power Device power LED.
Master Indicator of failover modes operation.
Fan Fan operation LED.
RPS Redundant power supply LED.
7 F Functional key that reboots the device and resets it to factory default configuration:
Pressing the key for less than 10 seconds reboots the device;
Pressing the key for more than 10 seconds resets the terminal to factory settings.
8 Console Console port RS-232 for local management of the device.
ESR-1200, 1000 rear panel

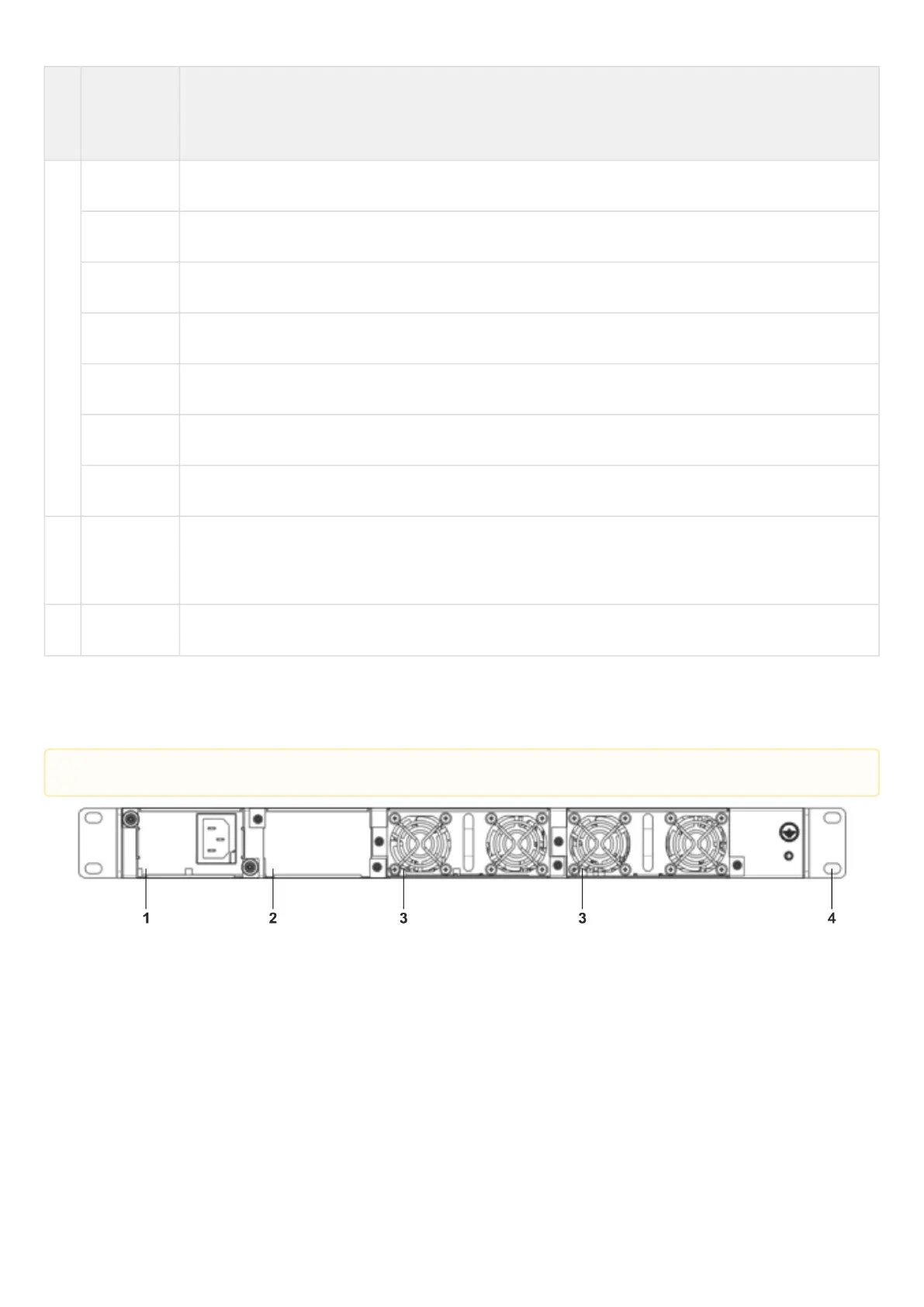

The rear panel of ESR-1000 is depicted in the figure below.
Figure 20 – ESR-1000 rear panel
Table 20 lists rear panel connectors of the router.
The figure shows the router delivery package with a single AC power supply.
