Epson Stylus COLOR 3000 Service Manual

EPSON Stylus COLOR 3000
EPSON Stylus Color 3000 Service Manual
5
-13

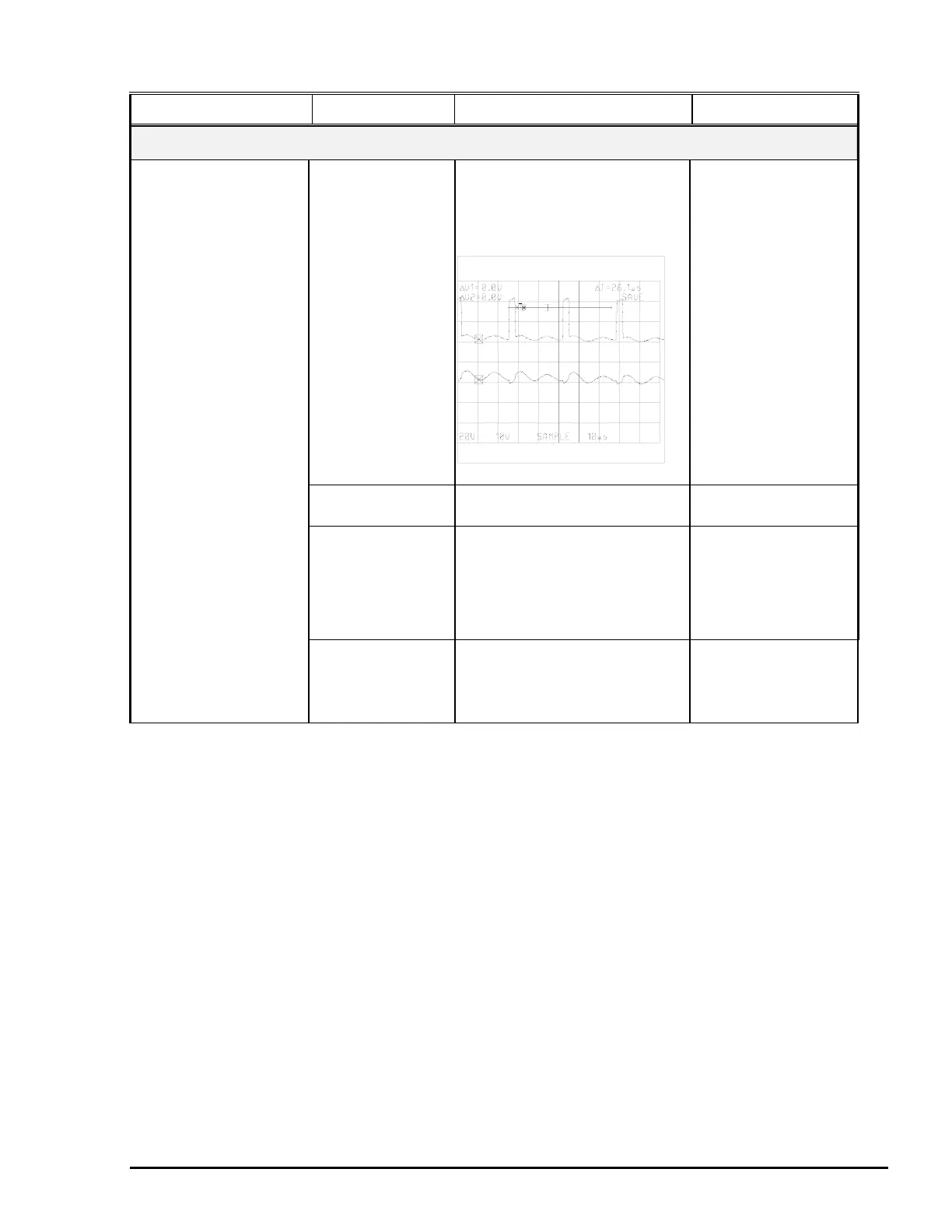

Table 5-6. Component Repair of the C203 Main Board (continued)
Condition Cause Checkpoint Solution
Symptom: The printer feeds paper abnormally.
PF motor does not
operate normally.
Sub gate array IC6
is defective.
Check the waveform for one of
the following signals output from
IC17:
PFA0/1 (Pin1/2)
PFB0/1 (Pin 23/24)
Pin 1 on the IC17
Pin 6 on the IC 17
Waveform 10
Replace the main
board.
CPU is defective.

Replace the main
board.
IC17 is defective. Check the waveforms for one of
the following signals output from
IC17:
PFA0/1 (Pin 2/1)
PFB0/1 (Pin 23/24)
(Refer to the waveform 10.)
Replace the main
board.
PF motor is
defective.
Check if the resistance of the
motor coil is as follows;
10Ω ± 10 % at 25 °C
(Refer to Table 5-1.)
Replace the PF motor.

Epson Stylus COLOR 3000 Specifications

Printing Resolution

maximum resolution	1440 x 720 dpi
driver setting resolution	720 x 720 dpi
printable width	410 mm

Paper Handling

paper capacity (plain paper)	100 sheets
paper capacity (EPSON Inkjet transparencies)	30 sheets
paper capacity (envelopes)	10 envelopes

Ink Cartridges

black ink cartridge print capacity	Up to 3, 000 pages (A4, text @ 360dpi)
colour ink cartridges print capacity	Up to 2, 100 pages (A4, 360dpi 5% duty each colour)
colour ink cartridges	Cyan, Magenta, Yellow

Operating Environment

operating temperature	10-35°C
operating humidity	20-80% RH
total print volume	75, 000 pages (A3, text only)

Electrical Specifications

rated voltage	AC 220V-240V
rated frequency	50-60 Hz
power consumption	Approx. 21W (ISO 10561 letter pattern)

Weight and Dimensions

weight	18 Kg
width	810 mm
depth	565 mm
height	240 mm
