Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
https://www.manualsbooks.com
Confidential
Disassembling the ADF Unit (Artisan 800/PX800FW/TX800FW only)
“ 4.2.4.6 Ink System ”
(p135)
“ 4.2.4.12 Front Frame ”
(p147)
“ 4.2.4.21 Lower Paper
Guide Waste Ink Pad
Assy ” (p165)
Disassembling the Scanner Unit

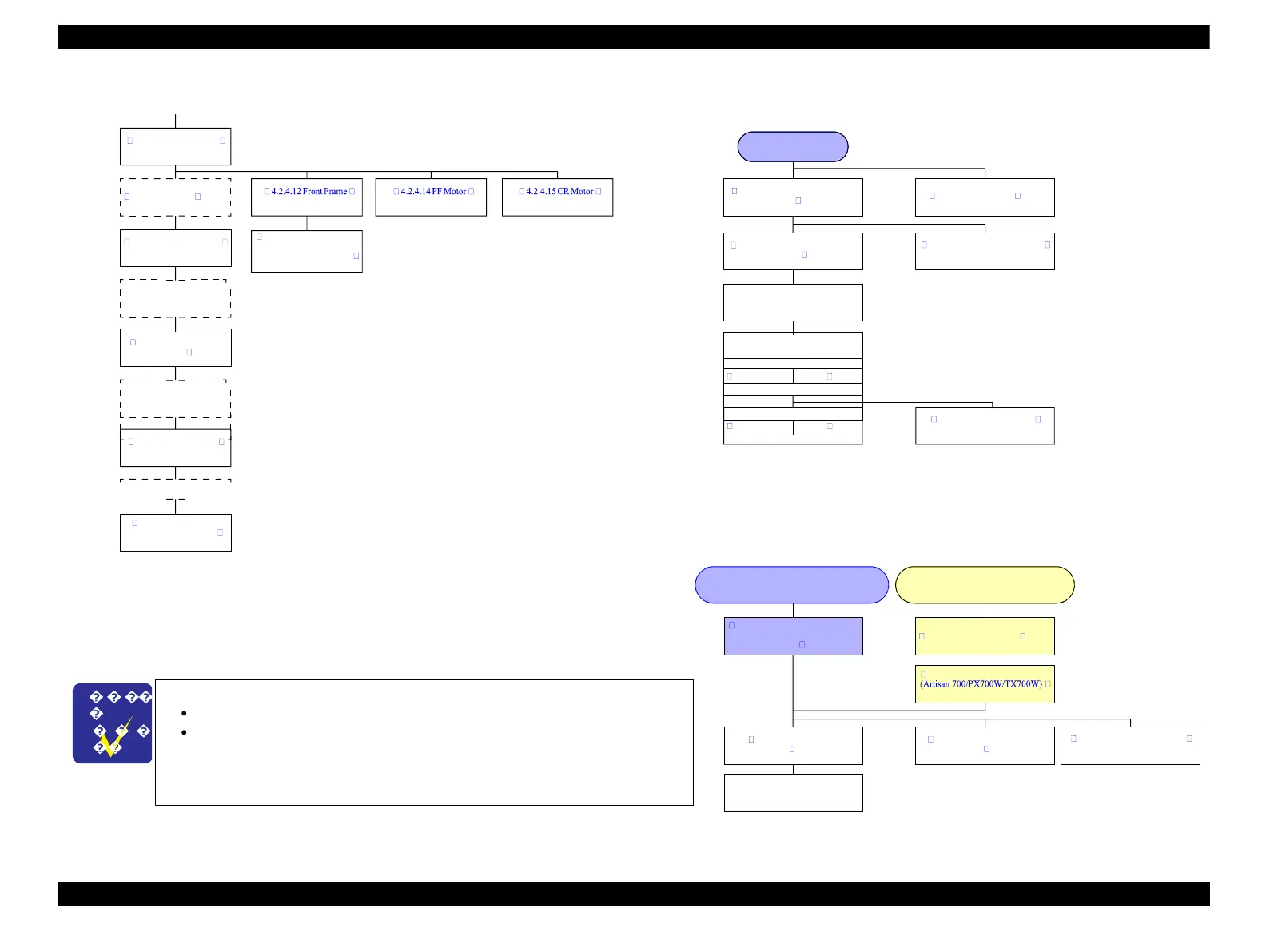

Flowchart 4-2. Disassembling Flowchart (2)
The colored blocks indicate the following.
Blue: Artisan 800/PX800FW/TX800FW only.
Yellow: Artisan 700/PX700W/TX700W only.
The parts surrounded with dotted line are not the shortest ways of
removing them, but you need to remove the parts/units if they exist on
the way to the target part/unit.
4.2.6.10 ADF PF Roller
(p183)
4.2.6.9 ADF Motor Unit (p181)
4.2.6.8 ADF Frame Unit (p180)
4.2.6.3 ADF LD Frame Assy
(p176)
4.2.6.4 ADF Right Cover/ADF
Rear Cover (p176)
4.2.6.1 ADF Hinge (p174)
4.2.6.2 ADF Cover Assy/ADF
Cover L (p175)
START
4.2.5.5 Cover Open Sensor
(p173)
4.2.5.4 Scanner CR Encoder
Board (p172)
4.2.5.2 Scanner Motor
Unit (p168)
4.3.3.2 Scanner Upper Housing
(p201)
START
(Artisan 700/PX700W/TX700W)
4.3.3.1 Document Cover (p200)
START
(Artisan 800/PX800FW/TX800FW)
4.2.5.1 Scanner Upper Housing
(Artisan 800/PX800FW/
TX800FW) (p167)
Flowchart 4-1 Disassembling Flowchart (1) (p99)
4.2.4.11 Main Frame
(p144)
4.2.4.2 CR Scale (p129)
(p147)
(p150)
(p152)
4.2.4.13 EJ Frame Assy /
EJ Release Frame Assy R/
EJ Release Frame Assy L
(p147)
4.2.4.19 Upper Paper
Guide L/R / PE Sensor
(p161)
4.2.4.17 Transmission
Holder Assy (p158)
4.2.4.16 Carriage Unit
(p154)
“ 4.2.5.3 Scanner Carriage Unit ”
(p169)
“ 4.2.6.7 ADF Document
Support Assy ” (p179)
“ 4.2.6.6 ADF Front Cover ”
(p179)
“ 4.2.6.5 ADF Cover Stacker/
ADF Document Support Cover ”
(p178)
4.2.4.18 Rear Frame
(p159)
DISASSEMBLY/ASSEMBLY Disassembly Procedures 100
