4.2.6.2 ADF Cover Assy/ADF Cover L
Parts/Components need to be removed in advance:
Scanner Unit/ADF Unit
Removal procedure
1. Open the ADF Cover Assy.
2. Release the guide pins (x2) that secure the ADF Cover Assy, and remove the
ADF Cover Assy.

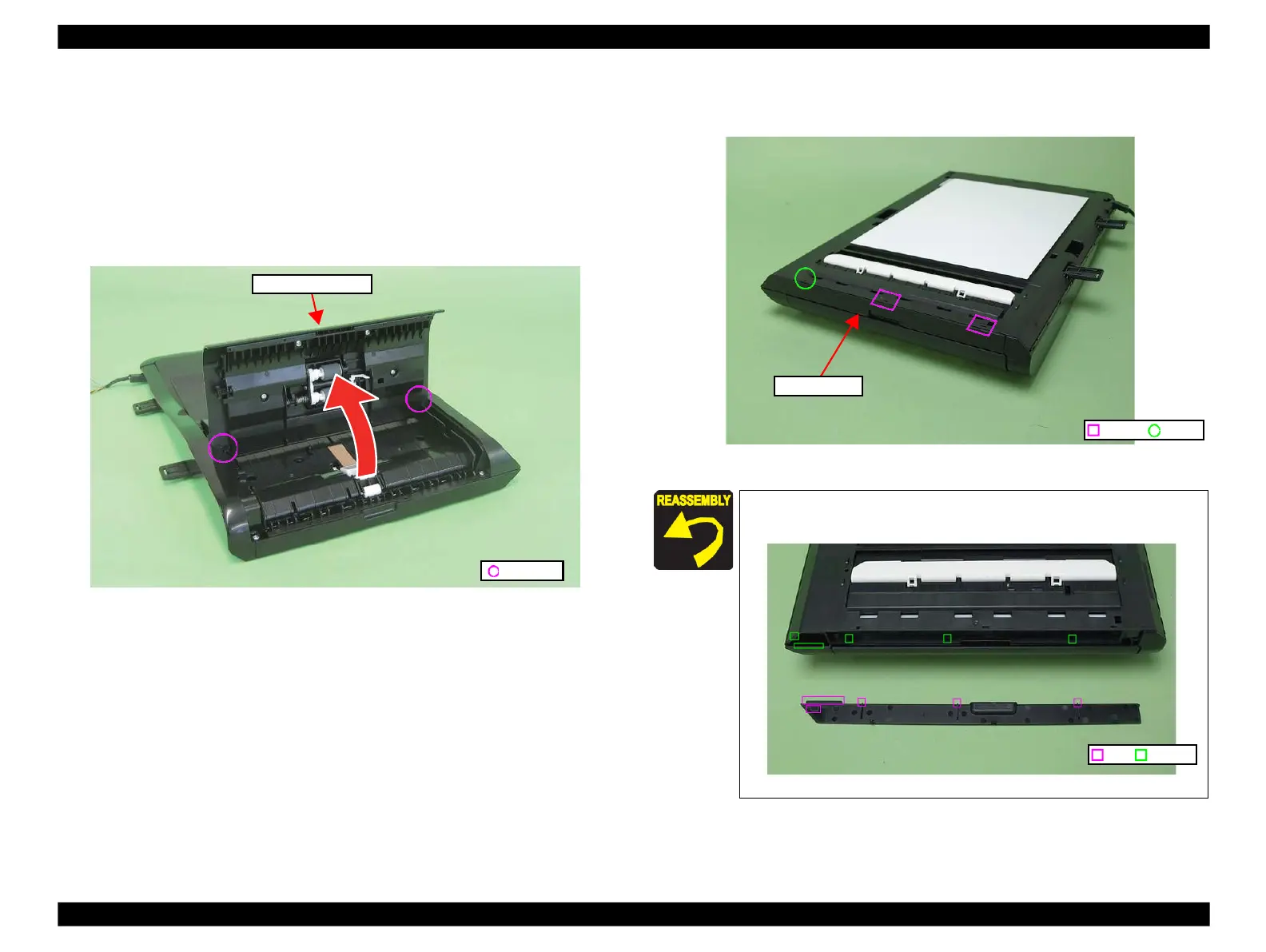

Figure 4-179. Removing the ADF Cover Assy
3. Release the hooks (x2) and the dowel (x1) that secure the ADF Cover L, and
remove the ADF Cover L.
Figure 4-180. Removing the ADF Cover L
When installing the ADF Cover L, align the ribs (x5) of the ADF
Cover L with the grooves (x5) of the ADF Base Assy.
Figure 4-181. Installing the ADF Cover L
Rib Groove
Guide Pin
ADF Cover Assy
Hook Dowel
ADF Cover L
