DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
183
Confidential
4.2.6.10 ADF PF Roller
Parts/Components need to be removed in advance:
Scanner Unit/ADF Unit/ADF Cover Assy/ADF Right Cover/ADF Rear Cover/
ADF Cover Stacker/ADF Document Support Cover/ADF Front Cover/ADF
Document Support Assy/ADF Frame Unit
Removal procedure
1. Remove the Spur Gear 6.4, securing ring and the ADF EJ Rear Bush from the
ADF PF Roller.

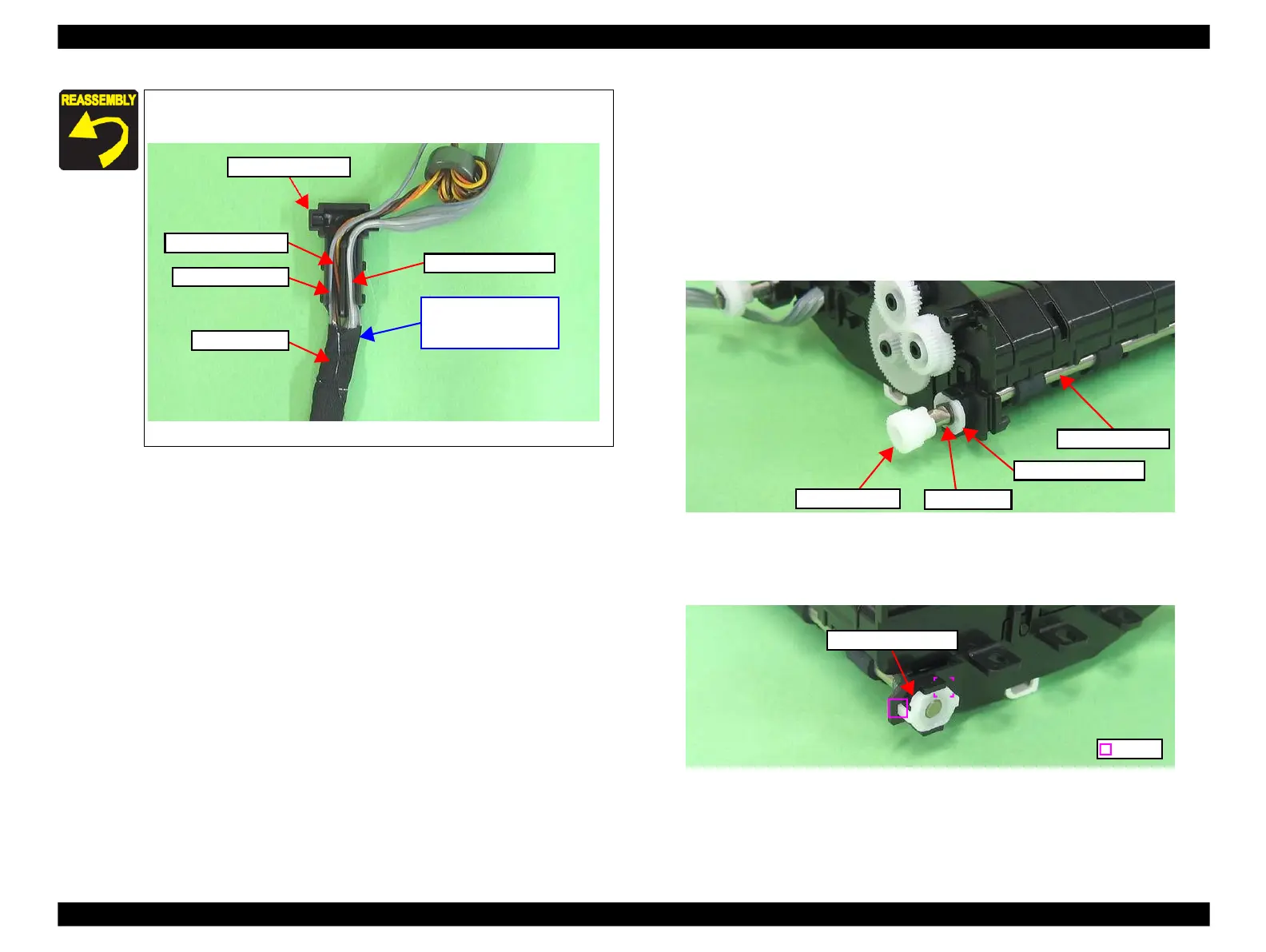

Figure 4-200. Removing the ADF PF Roller (1)
2. Release the hooks (x2) and remove the ADF EJ Front Bush from the ADF
Frame Unit.
Figure 4-201. Removing the ADF PF Roller (2)
When placing the cables on the ADF Cable Cover, route them
as shown below.
Figure 4-199. Routing the cables in the ADF Cable Cover
Acetate tape
Align the edge of the
acetate tape to the edge
of the ADF Cable Cover.
Grounding Wire
ADF Sensor cable
ADF Motor cable
ADF Cable Cover
Securing ring
Spur Gear 6.4
ADF EJ Rear Bush
ADF PF Roller
Hook
ADF EJ Front Bush
