Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly/reassembly procedures specific to Artisan 700/PX700W/TX700W
https://www.manualsbooks.com
191
Confidential

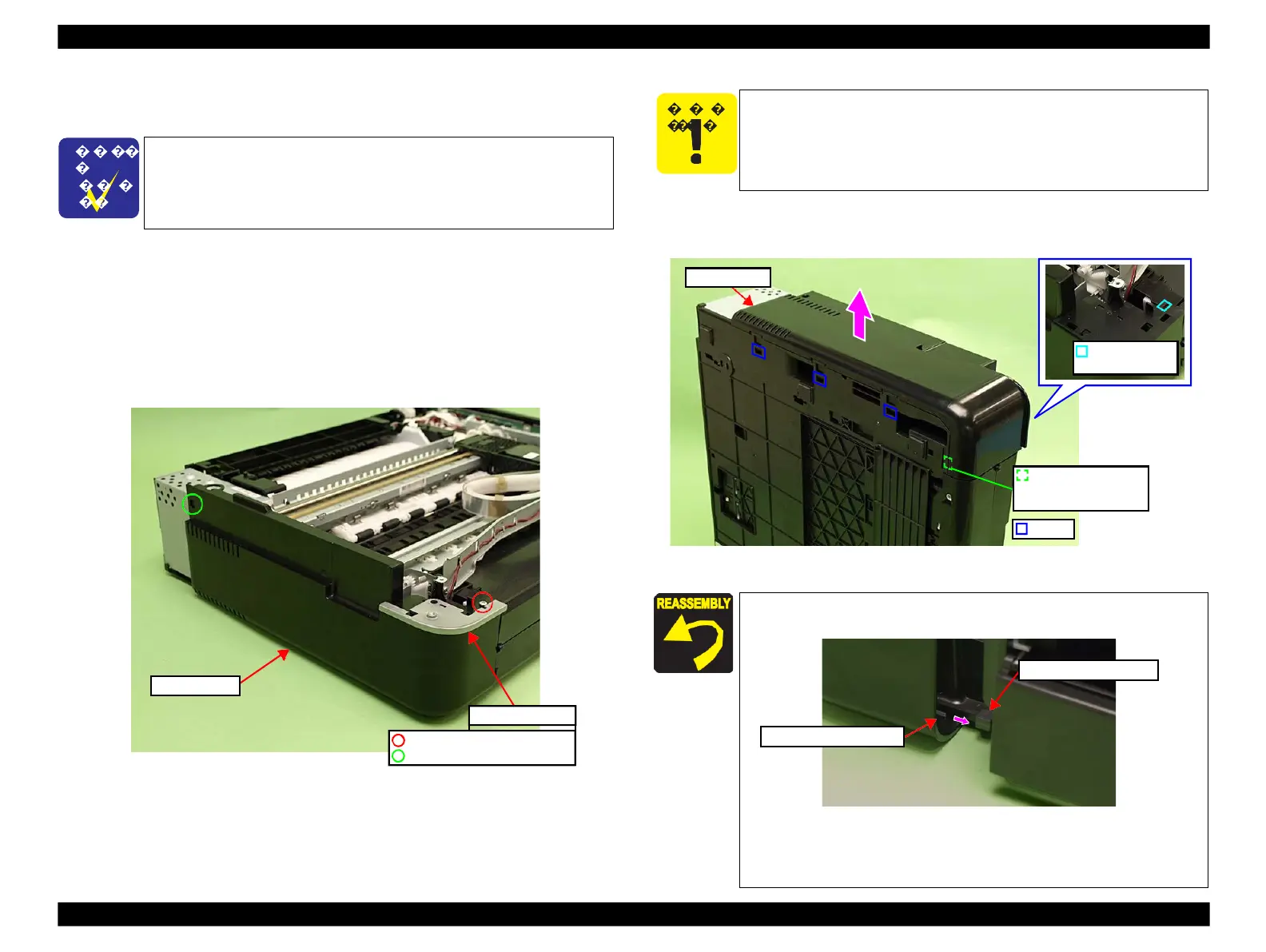

4.3.1.5 Left Housing/Decoration Belt L (Artisan 700/PX700W/
TX700W)
3.Release the hooks (x3) on the bottom and dowel (x1) on the front side of the
Left Housing, and remove the Left Housing in the direction of the arrow.
Parts/Components need to be removed in advance:
Scanner Unit/Upper Left Housing/Paper Guide Top Assy/Upper Housing/Rear
Left Housing
Removal procedure
1. Remove the Decoration Belt.
2. Remove the screws (x2) that secure the Left Housing.
Figure 4-218. Removing the Left Housing/Decoration Belt L (2)
Figure 4-217. Removing the Left Housing/Decoration Belt L (1)
C.B.P. 3x10 (6±1Kgfcm)
C.B.A. 3x6 (black)(6±1Kgfcm)
Decoration Belt
Left Housing
So as to make description easier, the printer in the photographs is
placed vertically in the following steps. Be careful about ink spilling
if the printer is tilted in practical operation.
Hook
The ribs of Left
Housing and the Base
Frame are inside.
Left Housing
Positioning hole
& dowel
Align and insert the rib in the front inside of the Left Housing to
the inside of the rib of the Base Frame.
Figure 4-219. Installing the Left Housing

Align the positioning hole of the Left Housing with the dowel of
the Base Frame. (See Fig. 4-218.)
Rib of the Left Housing
Rib of the Base Frame
The disassembly/reassembly procedures for Artisan 800/PX800FW/
TX800FW differ from those of Artisan 700/PX700W/TX700W, see
4.2.2.7 "Left Housing / Decoration Belt L" (p109) for the
procedures.
