4.2.2.4 Upper Left Housing / Panel Lock Button
Parts/Components need to be removed in advance:
None
Removal procedure
1. Remove the screw (x1) that secures the Upper Left Housing.
2. Release the hooks (x2) and ribs (x2) of the Upper Left Housing and remove
the Upper Left Housing.

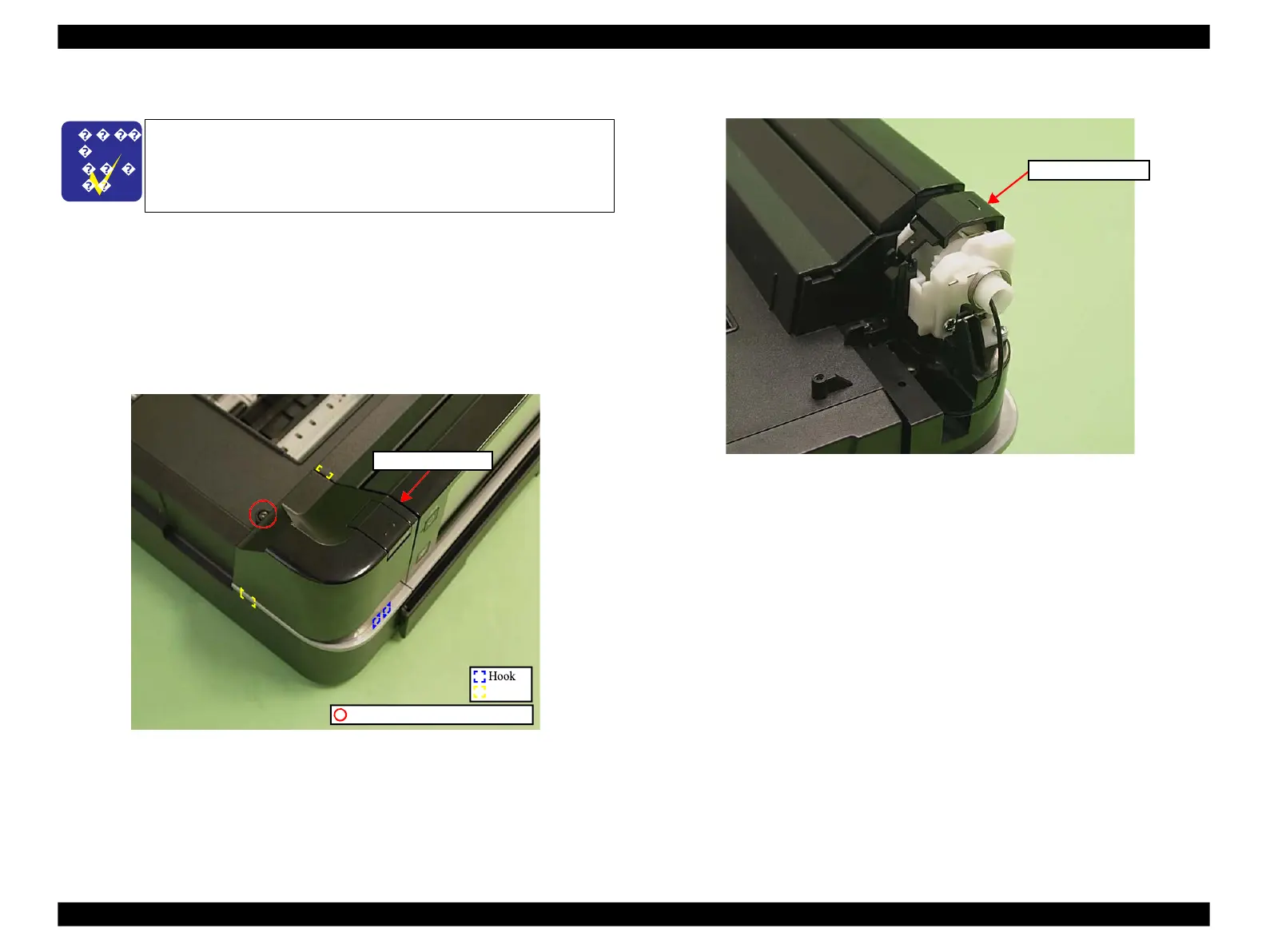

Figure 4-13. Removing the Upper Left Housing
3. Remove the Panel Lock Button.
Figure 4-14. Removing the Panel Lock Button
The disassembly/reassembly procedures of Artisan 700/PX700W/
TX700W differ from those of Artisan 800/PX800FW/TX800FW.
See 4.3.1.2 "Upper Left Housing (Artisan 700/PX700W/TX700W)"
(p187) for the procedures.
C.B.P. 3x10 (black) (6±1Kgfcm)
Rib
Upper Left Housing
Panel Lock Button
