Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Routing FFC/cables
https://www.manualsbooks.com
202
Confidential
4.4 Routing FFC/cables
ADF/SCANNER (ARTISAN 800/PX800FW/TX800FW)
No.
FFC/cable name
CN No.
*
Remarks
1
ADF Motor Cable
CN25
Artisan 800/PX800FW/TX800FW
only
2
ADF Sensor Cable
CN51
Artisan 800/PX800FW/TX800FW
only
3
Scanner Cover Open Sensor FFC
CN10
Ferrite Core x1
4
Scanner Carriage FFC
CN41
Ferrite Core x1
5
Scanner CR Encoder FFC
CN49
---
6
Grounding Wire (x2)
---
---
Note * : See Fig. 4-245 for the connector positions on the Main Board (Artisan 800/
PX800FW/TX800FW).

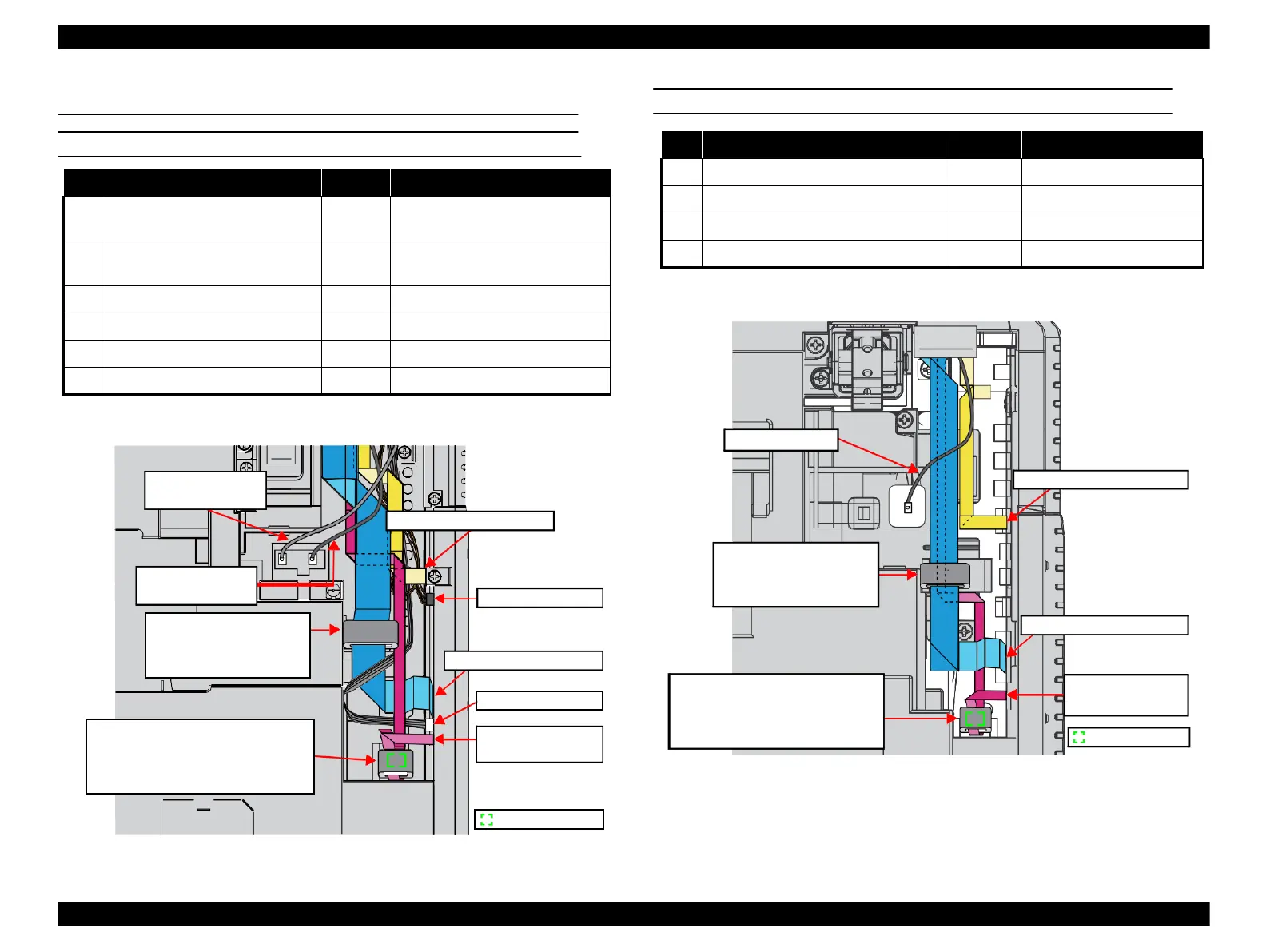

Figure 4-243. ADF/Scanner (Artisan 800/PX800FW/TX800FW)
ADF/SCANNER (ARTISAN 700/PX700W/TX700W)
No.
FFC/cable name
CN No.
*
Remarks
1
Scanner Cover Open Sensor FFC
CN10
Ferrite Core x1
2
Scanner Carriage FFC
CN41
Ferrite Core x1
3
Scanner CR Encoder FFC
CN49
---
4
Grounding Wire (x1)
---
---
Note * : See Fig. 4-247 for the connector positions on the Main Board (Artisan 700/
PX700W/TX700W).
Figure 4-244. ADF/Scanner (Artisan 700/PX700W/TX700W)
Grounding Wire from
the Scanner Unit
Scanner CR Encoder FFC
Grounding Wire from
the ADF Unit
ADF Motor Cable
Scanner Carriage FFC
Scanner Cover Open
Sensor FFC
Ferrite Core A:
Put the Scanner Carriage FFC
through this and attach it to
the Upper Housing.
Double-sided tape
Ferrite Core B:
Put the Scanner Cover Open Sensor FFC
through this and secure it together with
the FFC on the Main Board Unit with the
double-sided tape.
ADF Sensor Cable
Grounding Wire
Scanner CR Encoder FFC
Ferrite Core A:
Put the Scanner Carriage FFC
through this and attach it to
the Upper Housing.
Scanner Carriage FFC
Ferrite Core B:
Put the Scanner Cover Open Sensor
FFC through this and secure it together
with the FFC on the Main Board Unit
with the double-sided tape.
Scanner Cover Open
Sensor FFC
Double-sided tape
