Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly/reassembly procedures specific to Artisan 700/PX700W/TX700W
https://www.manualsbooks.com
190
Confidential
4.3.1.4 Rear Left Housing (Artisan 700/PX700W/TX700W)
Parts/Components need to be removed in advance:
Scanner Unit/Upper Left Housing/Paper Guide Top Assy/Upper Housing
Removal procedure
1. Remove the screws (x2) that secure the Rear Left Housing, and remove the
Rear Left Housing.

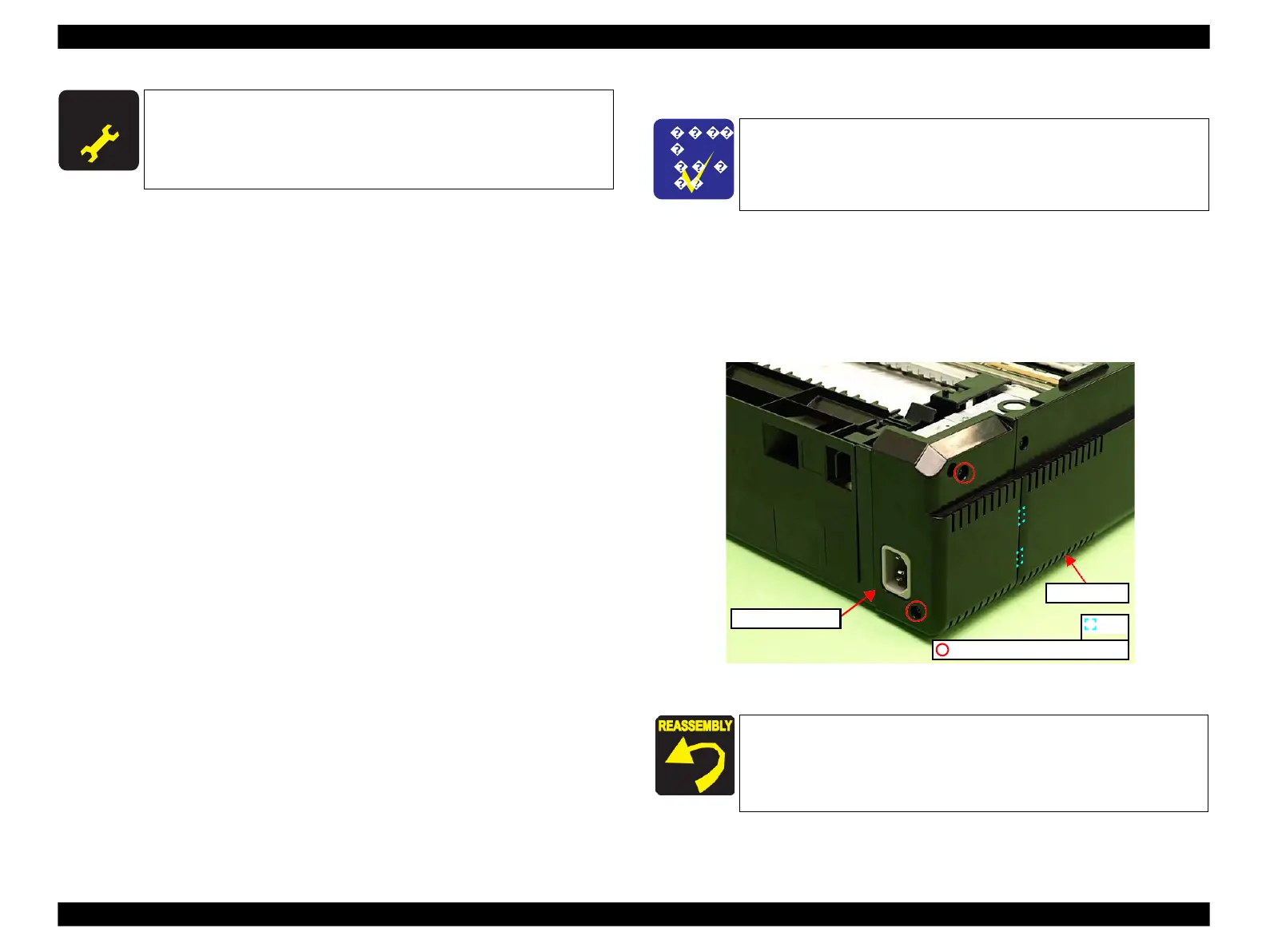

Figure 4-216. Removing the Rear Left Housing
�
� � � �
�
� � �
�
� � � �
�
� � �
After removing/replacing the Upper Housing, make the specified
adjustments. (See Chapter 5 "ADJUSTMENT".)
The disassembly/reassembly procedures for Artisan 800/PX800FW/
TX800FW differ from those of Artisan 700/PX700W/TX700W, see
4.2.2.6 "Rear Left Housing" (p109) for the procedures.
C.B.A. 3x6 (black) (6±1Kgfcm)
Rib
Rear Left Housing
Left Housing
When installing the Rear Left Housing, insert the ribs (x2) of the
Rear Left Housing to the inside of the Left Housing. (See Fig.
4-216.)
