Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
178
Confidential
4.2.6.5 ADF Cover Stacker/ADF Document Support Cover
Parts/Components need to be removed in advance:
Scanner Unit/ADF Unit/ADF Cover Assy/ADF Right Cover/ADF Rear Cover
Removal procedure
1. Release the dowels (x2) that secure the ADF Cover Stacker, and remove the
ADF Cover Stacker from the ADF Base Assy.

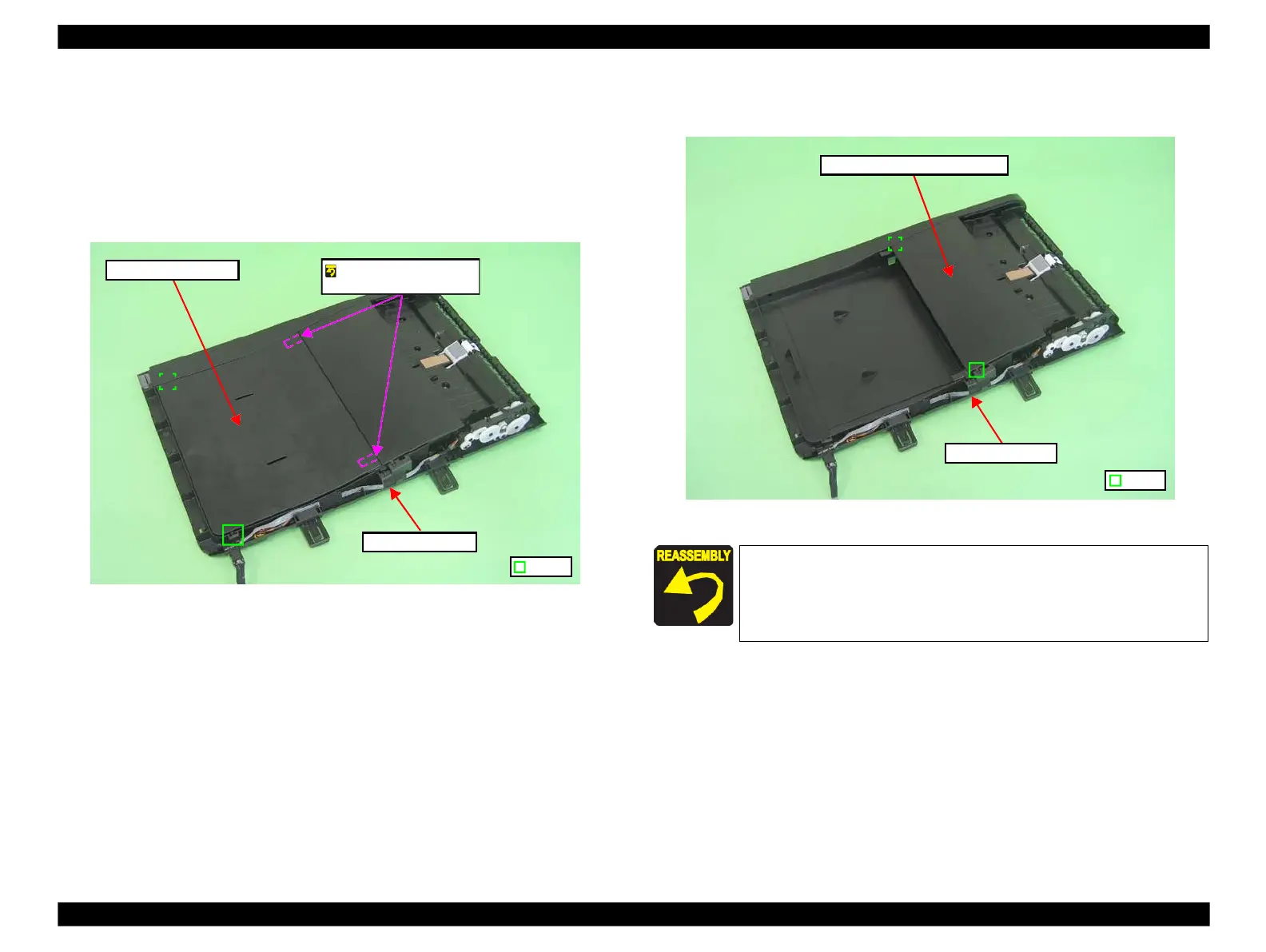

Figure 4-187. Removing the ADF Cover Stacker
2. Release the dowels (x2) that secure the ADF Document Support Cover, and
remove the ADF Document Support Cover from the ADF Base Assy.
Figure 4-188. Removing the ADF Document Support Cover
When installing the ADF Cover Stacker, insert the protrusions (x2)
of the ADF Document Support Cover under the ADF Cover Stacker
as shown in Fig. 4-187.
Protrusions of the ADF
Document Support Cover
Dowel
ADF Base Assy
ADF Cover Stacker
Dowel
ADF Base Assy
ADF Document Support Cover
