Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
177
Confidential
When installing the ADF Right Cover, align the positioning
holes (x2) with the dowels (x2) of the ADF Right Cover and the
ADF Base Assy, and also align the ribs (x6) shown in
Fig. 4-183.

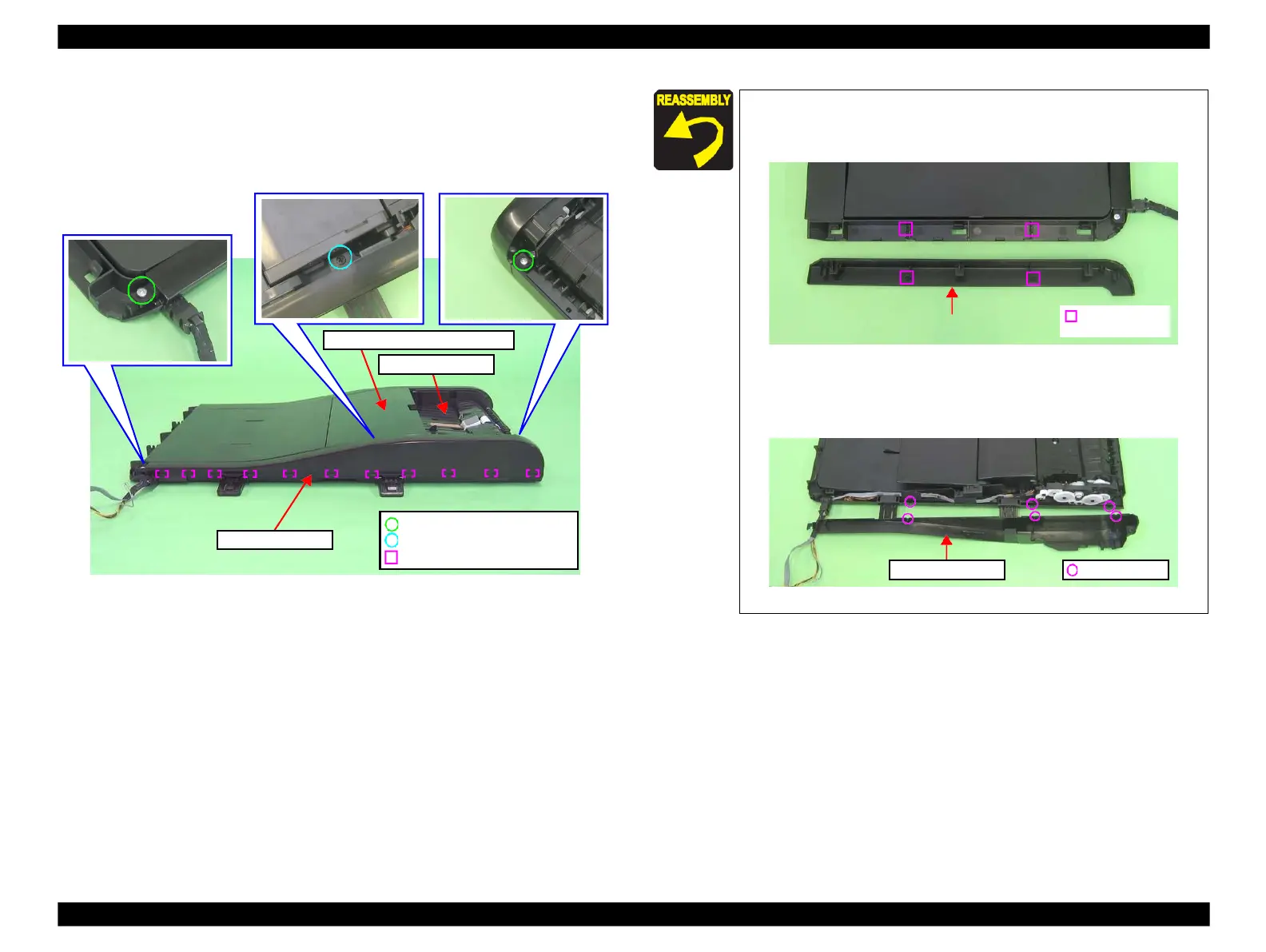

Figure 4-185. Installing the ADF Right Cover

When installing the ADF Rear Cover, align the ribs with the
grooves (x3) as shown below.
Figure 4-186. Installing the ADF Rear Cover
Rib & Groove
ADF Rear Cover
ADF Right Cover
Positioning hole
& dowel
2. Open the ADF Document Support Cover.
3. Remove the screws (x3) that secure the ADF Rear Cover.
4. Release the hooks (x11) that secure the ADF Rear Cover, and remove the
ADF Rear Cover from the ADF Base Assy.
Figure 4-184. Removing the ADF Rear Cover
ADF Rear Cover
C.B.P. 2.5x6 (6±1kgfcm)
C.B.P. 2.5x6 (black) (6±1kgfcm)
Hook
ADF Base Assy
ADF Document Support Cover
