4.2.4.7 Lower ASF Paper Guide Assy
Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing/Paper Guide Top Assy/Upper Housing/Rear Left Housing/Left Housing/
Decoration Belt/Power Supply Unit/Rear ASF Paper Guide Cover
Removal procedure
1. Release the hooks (x2) and remove the Spur Gear A.

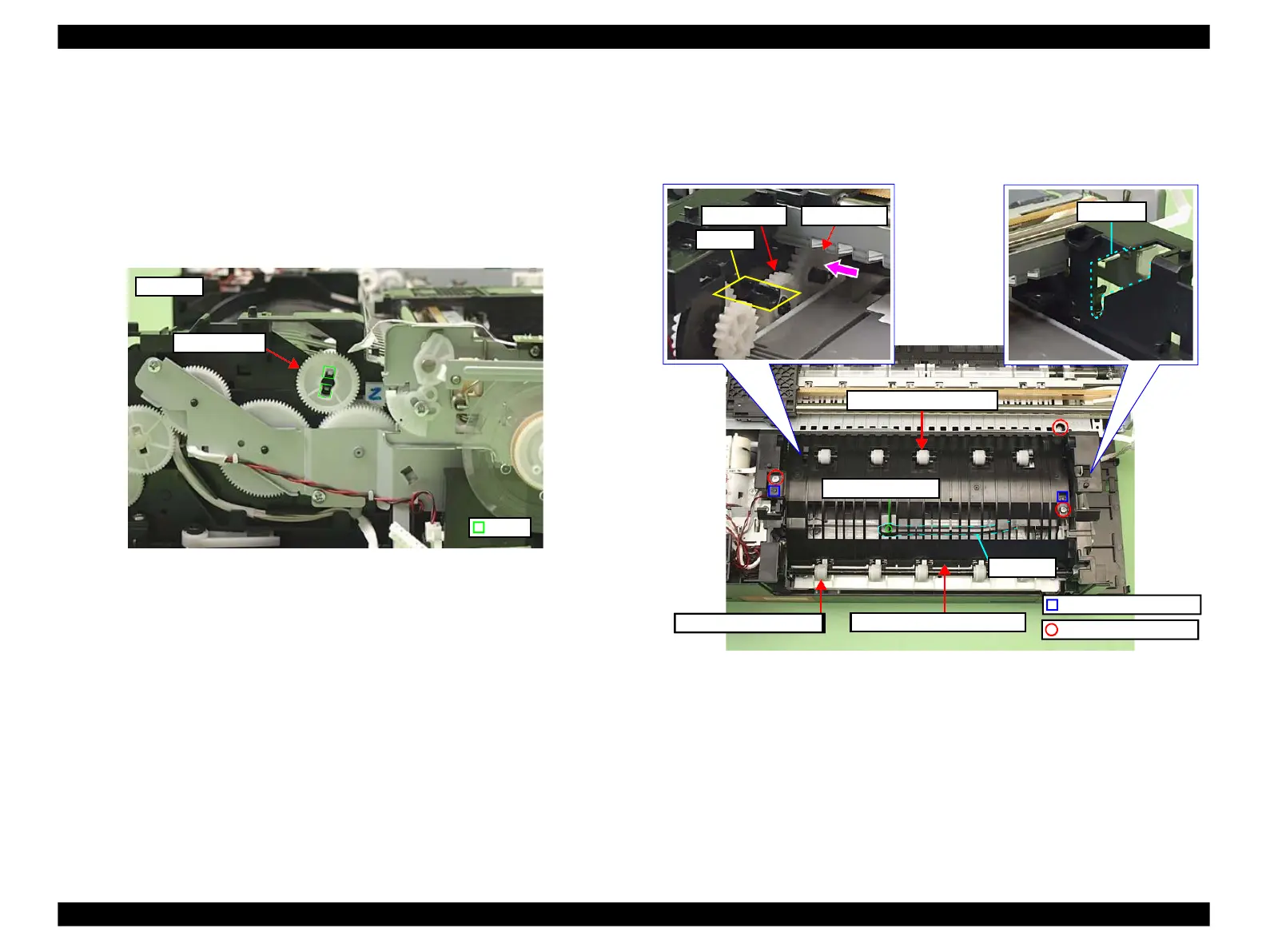

Figure 4-88. Removing the Lower ASF Paper Guide Assy (1)
2. Remove the screws (x3) that secure the Lower ASF Paper Guide Assy. (See
Fig. 4-89.)
3. Remove the Lower ASF Paper Guide Assy while avoiding hitting the shaft of
the Intermediate Roller A to the groove A on the Base Frame.
Figure 4-89. Removing the Lower ASF Paper Guide Assy (2)
Lower ASF Paper Guide Assy
Intermediate Roller B
C.B.P. 3x8 (6±1Kgfcm)
Positioning hole & dowel
Dowel of left arm
Intermediate Roller A
Groove A
Groove B
Bearing
Spur Gear B
Spur Gear C
Hook
Spur Gear A
Left side
