Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
114
Confidential

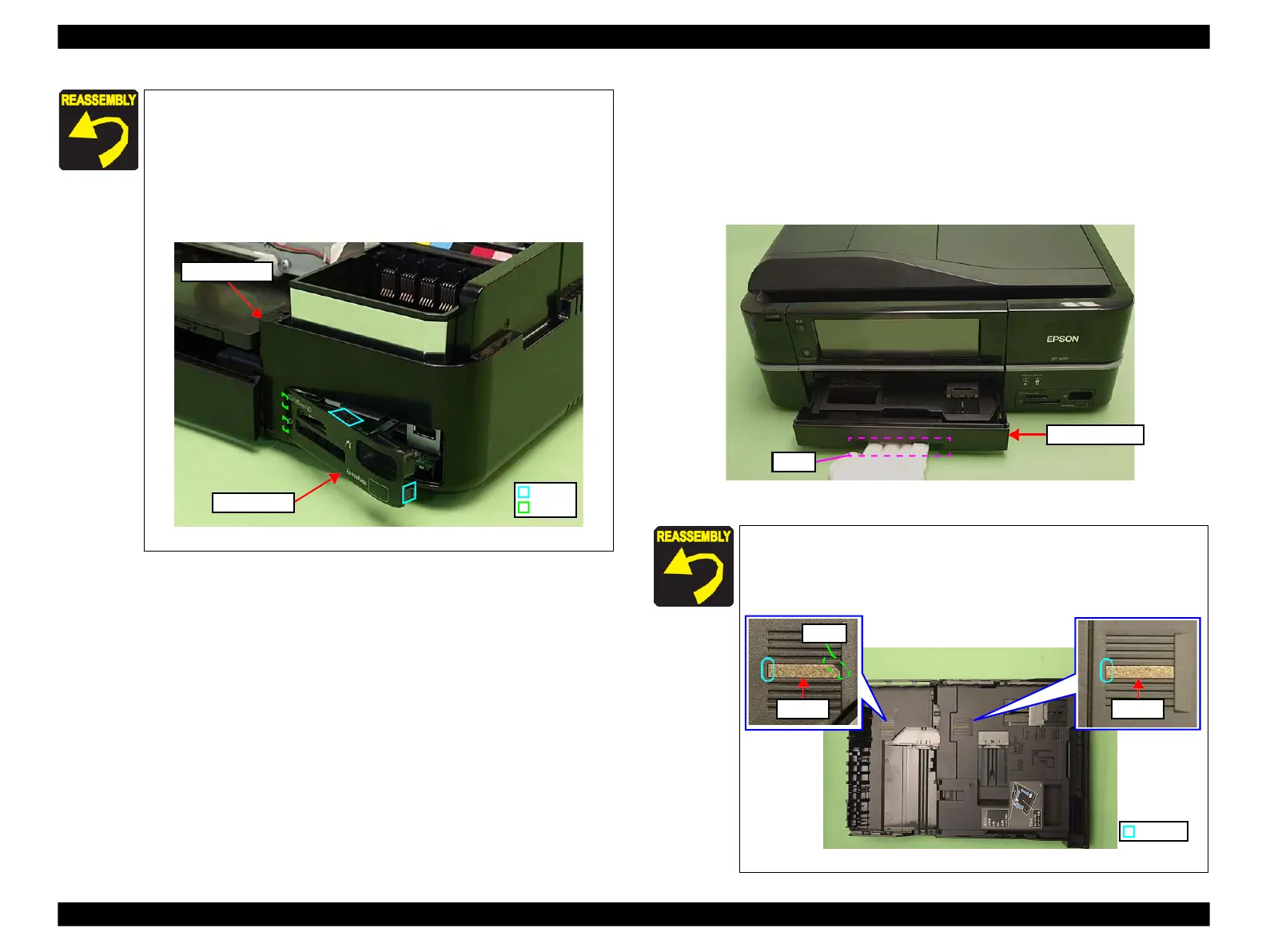

4.2.2.12 Cassette Unit
Parts/Components need to be removed in advance:
None
Removal procedure
1. Hold and pull the grip under the Cassette Unit, and remove the Cassette Unit.
Figure 4-32. Removing the Cassette Unit
Align and insert the positioning hole of the Right Housing to the
dowel of the Base Frame. (See Fig. 4-28.)

Attach the Card Cover after installing the Right Housing to the
Printer.
When attaching the Card Cover, insert the ribs (x2) of the Card
Cover to the inside of the Right Housing, and secure it with the
hooks (x2).
Figure 4-31. Attaching the Card Cover
Card Cover
Hook
Rib
Right Housing
Cassette Unit
Gripe
When replacing the cork A/B, wipe the attaching position with
ethanol, and attach it without any gap at the point A.

When attaching the cork B, align the cutout to the place shown
in Fig. 4-33.
Figure 4-33. Attaching the cork
Point A
Cork A
Cork B
Cutout
