4.2.4.5
Ink Supply IC Holder Assy
Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing/Paper Guide Top Assy/Upper Housing/Printhead/Hinge/Rear Right FAX
Housing /Right Housing/Main Board/CSIC Assy/ Wireless LAN Board
Removal procedure
1.
Release the Head FFCs (x4) and the CR Encoder FFC from the ribs (x4)
behind the Cartridge Box Unit.

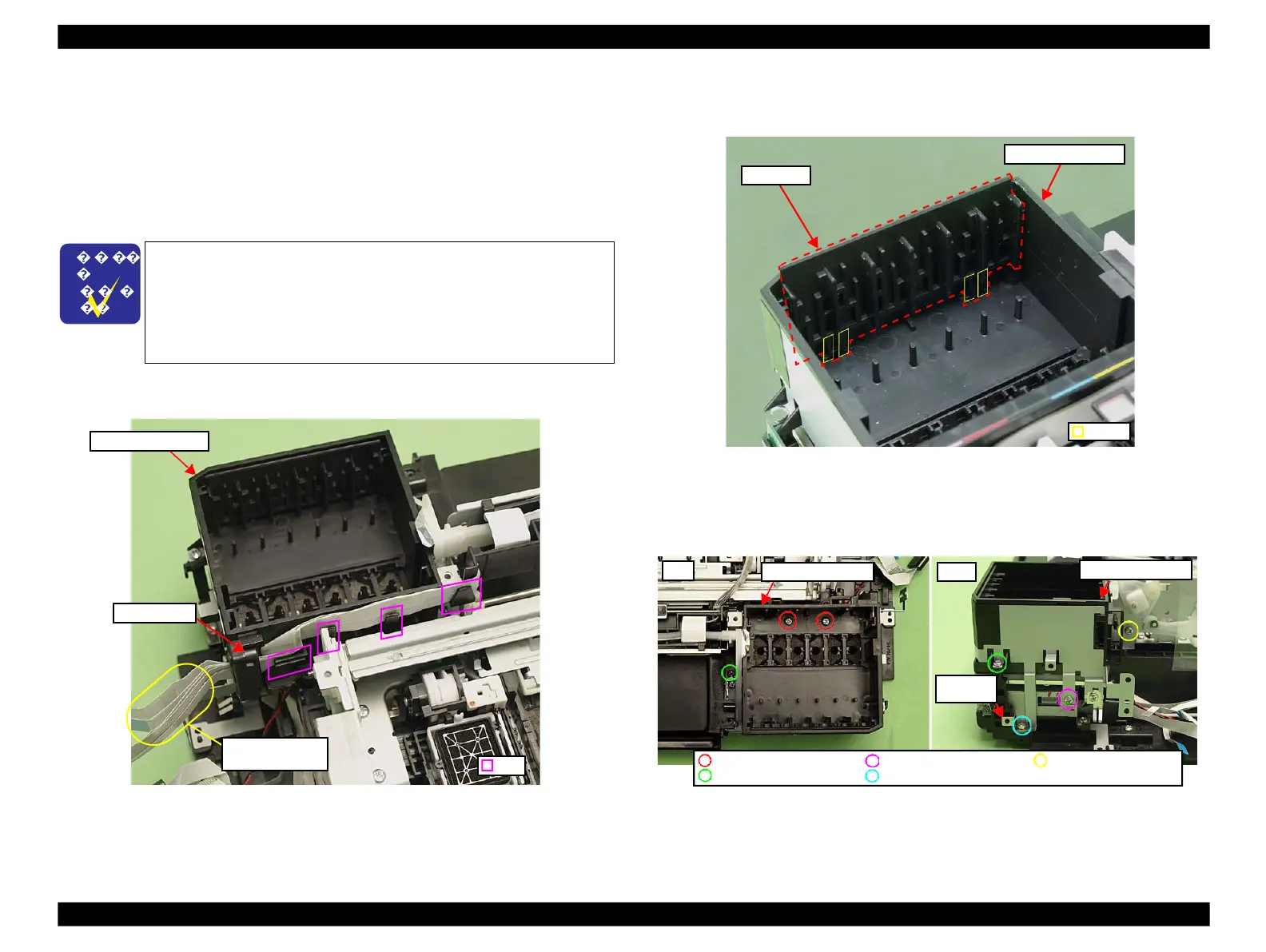

Figure 4-76. Releasing the FFCs
2.
Release the hooks (x4) that secure the IC Guide, and remove the IC Guide
from the Cartridge Box Unit.
Figure 4-77. Removing the IC Guide
3.
Disconnect the decompression tube from the socket on the Cartridge Box
Unit. (See Fig. 4-71.)
4.
Remove the screws (x7) that secure the Cartridge Box Unit.
Figure 4-78. Removing the Cartridge Box Unit
The Ink Supply IC Holder Assy consists of the Ink Supply Tube
Assy and the Cartridge Box Unit. (See Fig. 4-55.)
If the replacement of Ink Supply IC Holder Assy is not
required, so as to minimize the related work, operate without
disconnecting the joint of the Printhead. (See 4.2.4.1
"Printhead" (p124).)
To Next Page
