DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
176
Confidential
4.2.6.3 ADF LD Frame Assy
Parts/Components need to be removed in advance:
Scanner Unit/ADF Unit/ADF Cover Assy
Removal procedure
1. Remove the screws (x4) that secure the ADF LD Frame Assy, and remove the
ADF LD Frame Assy from the ADF Cover Assy.

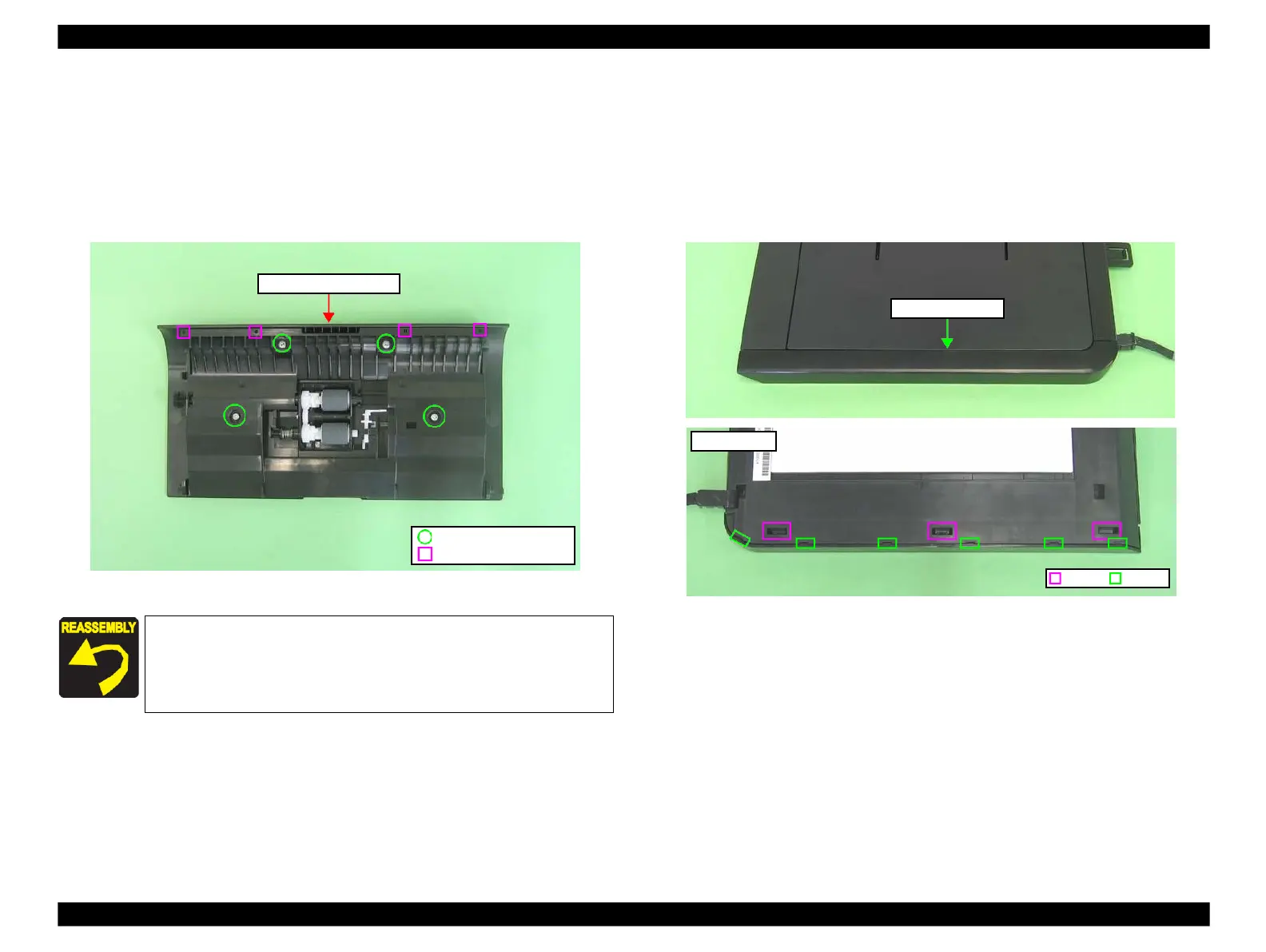

Figure 4-182. Removing the ADF LD Frame Assy
4.2.6.4 ADF Right Cover/ADF Rear Cover
Parts/Components need to be removed in advance:
Scanner Unit/ADF Unit/ADF Cover Assy
Removal procedure
1. Release the hooks (x3) that secure the ADF Right Cover, and remove the
ADF Right Cover from the ADF Base Assy.
Figure 4-183. Removing the ADF Right Cover
When installing the ADF LD Frame Assy, align the dowels(x4) of
the ADF Cover Assy with the positioning holes (x4) of the ADF LD
Frame Assy as shown in Fig. 4-182.
C.B.P. 3x8 (6±1kgfcm)
Positioning hole & dowel
ADF LD Frame Assy
Hook Rib
Bottom side
ADF Right Cover
