Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
TROUBLESHOOTING
Troubleshooting without Error Message
https://www.manualsbooks.com
70
Confidential
3.4 Troubleshooting without Error Message
3.4.1 Troubleshooting Printer Mechanism Problems
This section provides information for troubleshooting problems of printing mechanisms.
 Abnormal Noises

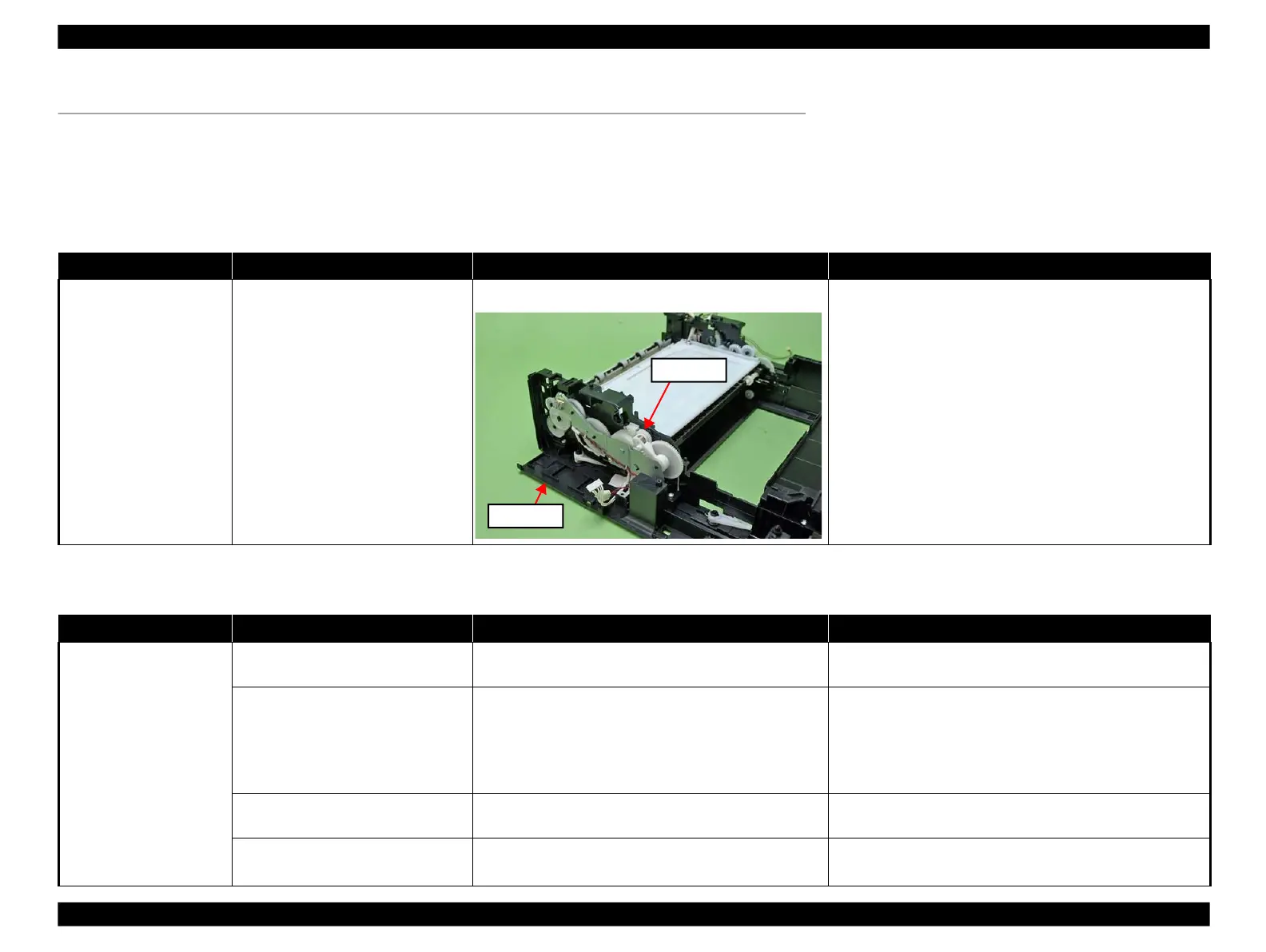

Table 3-15. Troubleshooting Abnormal Noise Problems
Problem
Possible Cause
Check point
Remedy
When feeding Matt paper
or the like, abnormal noise
is generated in the rear left
of the printer.
Engagement of the planet gear in the
rear left of the Base Frame is incorrect.
Check if the noise comes from the planet gear.
Planet gear
Base Frame
Replace the printer mechanism with a new one
 Paper feed error
Table 3-16. Troubleshooting Paper Feed Problems
Problem
Possible Cause
Check point
Remedy
Paper is not fed.
Paper Guide Top Assy installation error
Is the Paper Guide Top Assy correctly installed?
Install the Paper Guide Top Assy correctly. (See 4.2.2.13 " Paper
Guide Top Assy " (p.115).)
Contamination or wear of the Pick-up
Roller, intermediate rollers, LD Roller
Is the surface of each Rollers contaminated with micro
pearl paper dust or greasy dirt?
Wipe and clean the rollers with a cleaning sheet.
1. Attach the cleaning sheet to the Cassette Unit with a face
down.
2. Operate a copy without a sheet on the Scanner.
3. Repeat it several times.
Damage or wear of the cork of the
Cassette Unit
Is the Cassette Cork damaged or worn?
Replace the cork of the Cassette Unit with a new one. (See
4.2.2.12 " Cassette Unit " (p.114).)
Abnormal operation of the paper feed
mechanism
Is there any abnormality found in the paper feed
mechanism?
• Install them correctly if there is any abnormality found.
• Remove dust if any.
