Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly/reassembly procedures specific to Artisan 700/PX700W/TX700W
https://www.manualsbooks.com
194
Confidential
4.3.2 Removing the Circuit Board (Artisan 700/PX700W/
TX700W)
4.3.2.1 Panel Unit (Artisan 700/PX700W/TX700W)
Parts/Components need to be removed in advance:
Scanner Unit/Upper Left Housing/Paper Guide Top Assy/Upper Housing
Removal procedure
1. Open the Panel Unit. (See Fig. 4-226.)
2. Lift the Right Hinge and detach the Panel FFC Guide from the Upper
Housing.

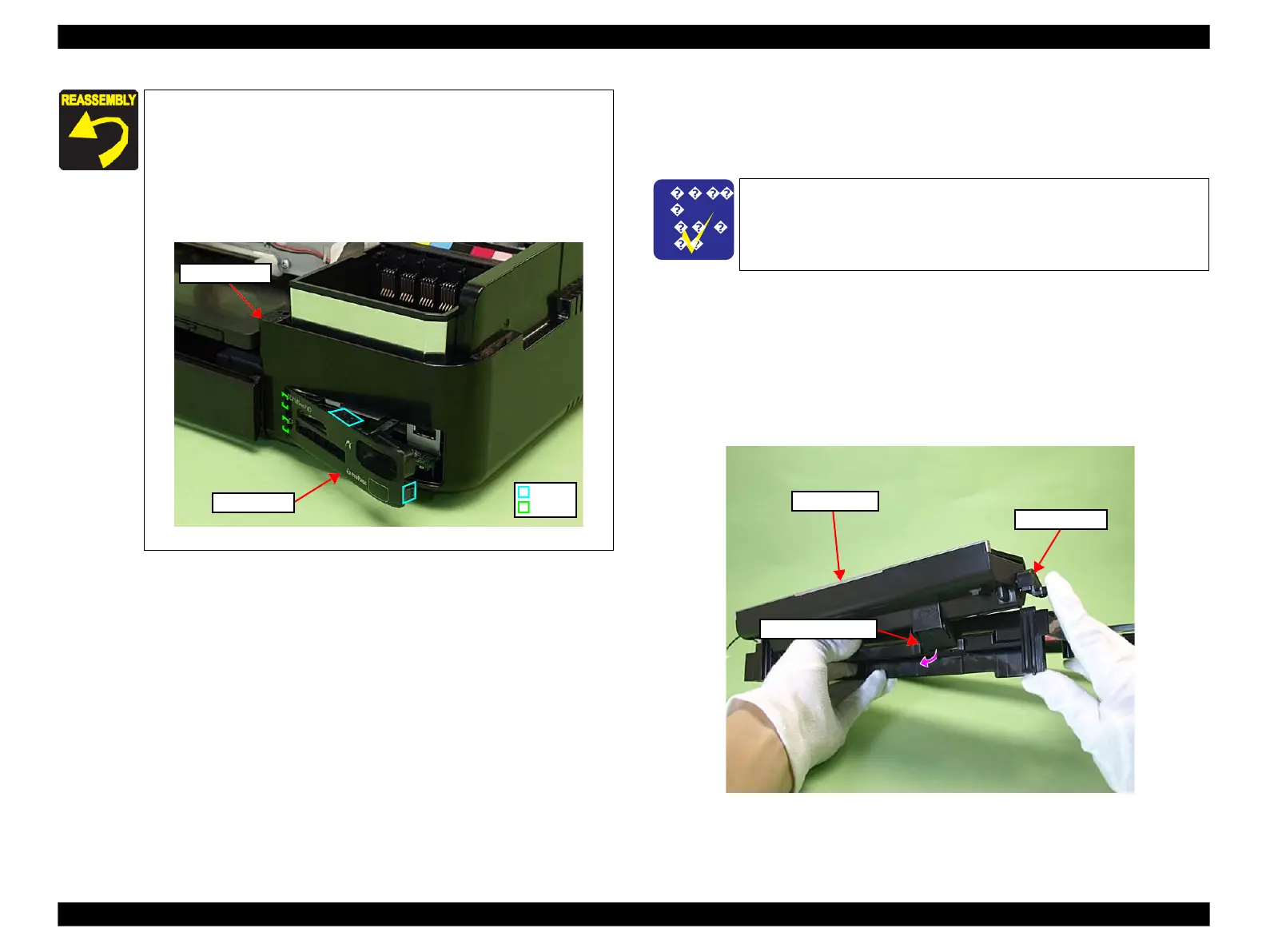

Figure 4-226. Removing the Panel Unit (1)
Align and insert the positioning hole of the Right Housing to the
dowel of the Base Frame. (See Fig. 4-222)

Attach the Card Cover after installing the Right Housing to the
printer.
When attaching the Card Cover, insert the ribs (x2) of the Card
Cover to the inside of the Right Housing, and secure it with the
hooks (x2).
Figure 4-225. Attaching the Card Cover
Card Cover
Hook
Rib
Right Housing
The disassembly/reassembly procedures for Artisan 800/PX800FW/
TX800FW differ from those of Artisan 700/PX700W/TX700W, see
4.2.3.1 "Panel Unit" (p115) for the procedures.
Panel FFC Guide
Right Hinge
Panel Unit
