Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
144
Confidential

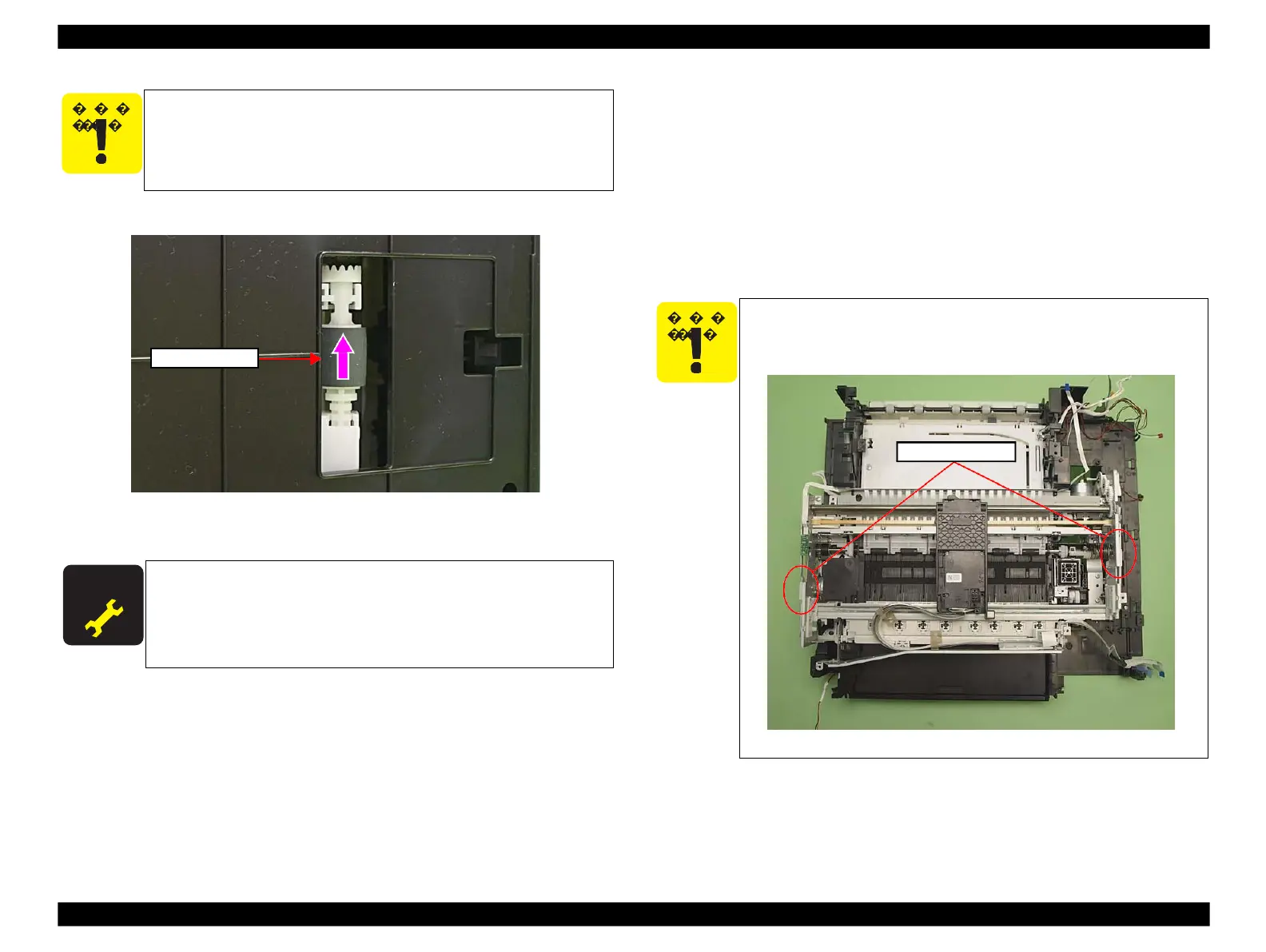

2. Slide the Pick-up Roller in the direction of the arrow, and remove it.
Figure 4-103. Removing the Pick-up Roller (2)
4.2.4.11 Main Frame
Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing/Paper Guide Top Assy/Upper Housing/Rear Left Housing/Left Housing/
Decoration Belt/Hinge/Rear Right Housing /Right Housing/Power Supply Unit/
Rear ASF Paper Guide Cover/Lower ASF Paper Guide Assy/CDR Tray Assy/
Main Board/CSIC Assy/Wireless LAN Board /Cartridge Box Unit/Ink Supply
Tube Assy/Card Slot Assy/Decompression Pump Unit/Waste Ink Tray Assy
Removal procedure
Pick-up Roller
�
� � � �
�
� � �
�
� � � �
�
� � �
When replacing the Pick-up Roller, make sure to carry out the
specified lubrication. (See
Chapter 6 "MAINTENANCE".)
Be careful not to touch or damage the Pick-up Roller so can
adversely affect print quality.
Since the Main Frame consists of several frames, it may deform
when lifting it. When lifting the Main Frame, it is recommended to
hold the positions shown in
Fig. 4-104.
Holding positions
Figure 4-104. Holding positions of Main Frame
