4.2.6.9 ADF Motor Unit
Parts/Components need to be removed in advance:
Scanner Unit/ADF Unit/ADF Cover Assy/ADF Right Cover/ADF Rear Cover/
ADF Cover Stacker/ADF Document Support Cover/ADF Front Cover/ADF
Document Support Assy/ADF Frame Unit
Removal procedure
1. Peel off the acetate tape (x3), and separate the ADF Motor cable, the ADF
Sensor cable and the Grounding Wire.
2. Release the hooks (x4) of the ADF Cable Cover and open the ADF Cable
Cover, then release the ADF Motor cable, the ADF Sensor cable and the
Grounding Wire.
3. Remove the screws (x2) that secure the ADF Motor Unit.

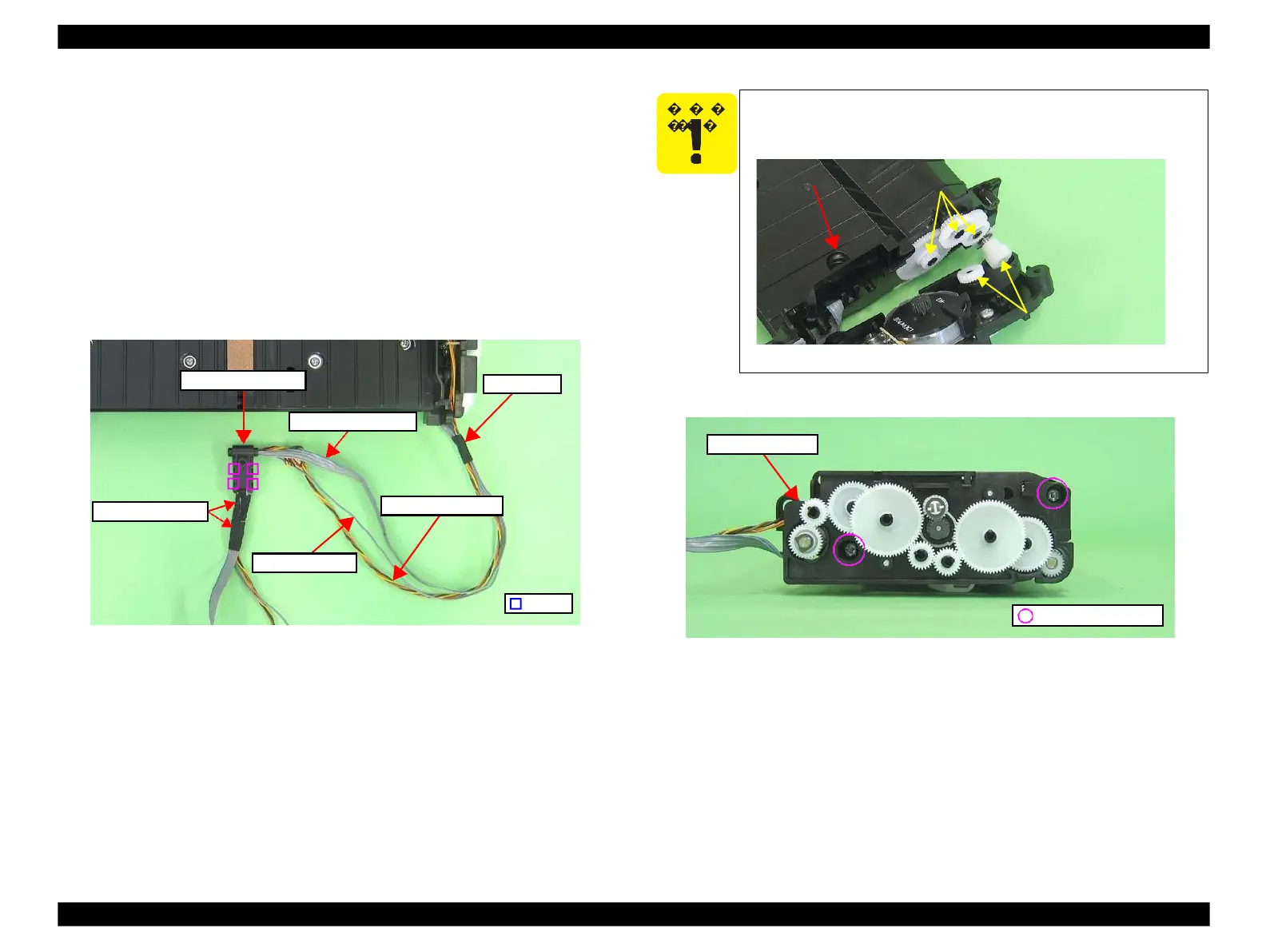

Figure 4-193. Releasing the cables
Figure 4-195. Removing the ADF Motor Unit (1)
ADF Cable Cover
Hook
Grounding Wire
Acetate tapes (x2)
ADF Motor cable
ADF Sensor cable
Acetate tape
When removing the ADF Motor Unit, be careful not to drop the
gears (x5) of the ADF Frame Unit and ADF Motor Unit shown
below.
Figure 4-194. Handling the ADF Motor Unit
Do not drop these.
Do not drop these.
ADF Frame Unit
C.B.P. 3x8 (6±1kgfcm)
ADF Motor Unit
