Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
182
Confidential
Be careful of the following when installing the ADF Motor Unit.
Route the ADF Motor cable, the ADF Sensor cable and the
Grounding Wire as shown below.

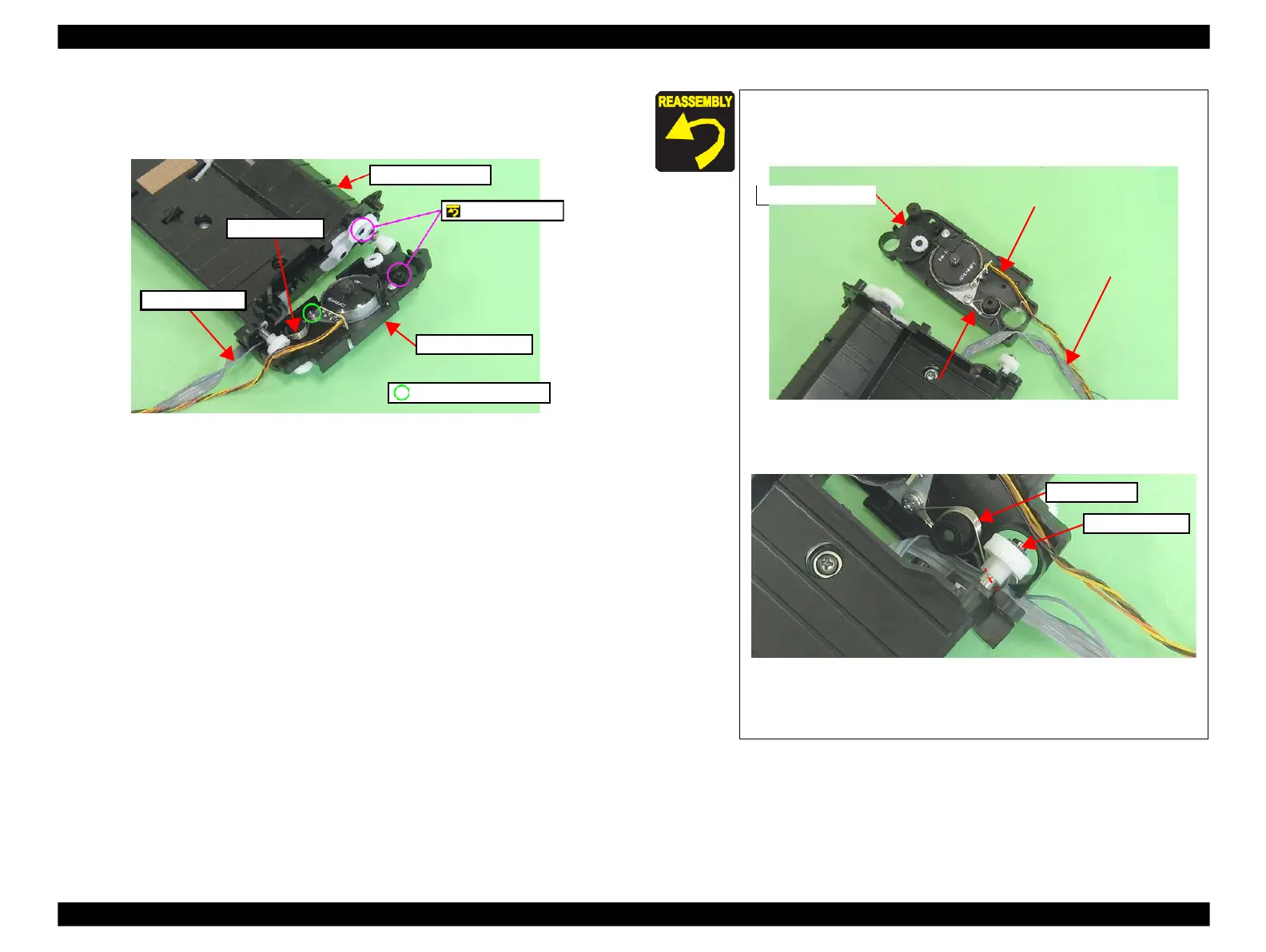

Figure 4-197. Routing the cables
Attach the torsion spring from under the ADF EJ Roller.
Figure 4-198. Attaching the torsion spring
Insert the shaft of the ADF Motor Unit to the hole of the ADF
Frame Unit as shown in Fig. 4-196.
ADF EJ Roller
Torsion spring
Grounding Wire
ADF Sensor cable
ADF Motor cable
ADF Motor Unit
4. Remove the screw (x1), and remove the torsion spring and the Grounding
Wire from the ADF Motor Unit, then remove the ADF Motor Unit from the
ADF Frame Unit.
Figure 4-196. Removing the ADF Motor Unit (2)
Shafts & holes
C.B.P. 3x8 (6±1kgfcm)
ADF Motor Unit
Grounding Wire
Torsion spring
ADF Frame Unit
