4.2.5.4 Scanner CR Encoder Board
Parts/Components need to be removed in advance:
Scanner Unit/ADF Unit/Scanner Upper Housing
Removal procedure
1. Disconnect the Scanner Motor cable from the connector on the Scanner CR
Encoder Board. (See 4.2.5.2 Scanner Motor Unit Step1 (p168).)
2. Disconnect the Scanner CR Encoder FFC from the connector (CN1) on the
Scanner CR Encoder Board.
3. Loosen the screw that secures the Scanner CR Encoder Board to the Scanner
Lower Housing, and remove Scanner CR Encoder Board from the Scanner
Lower Housing.

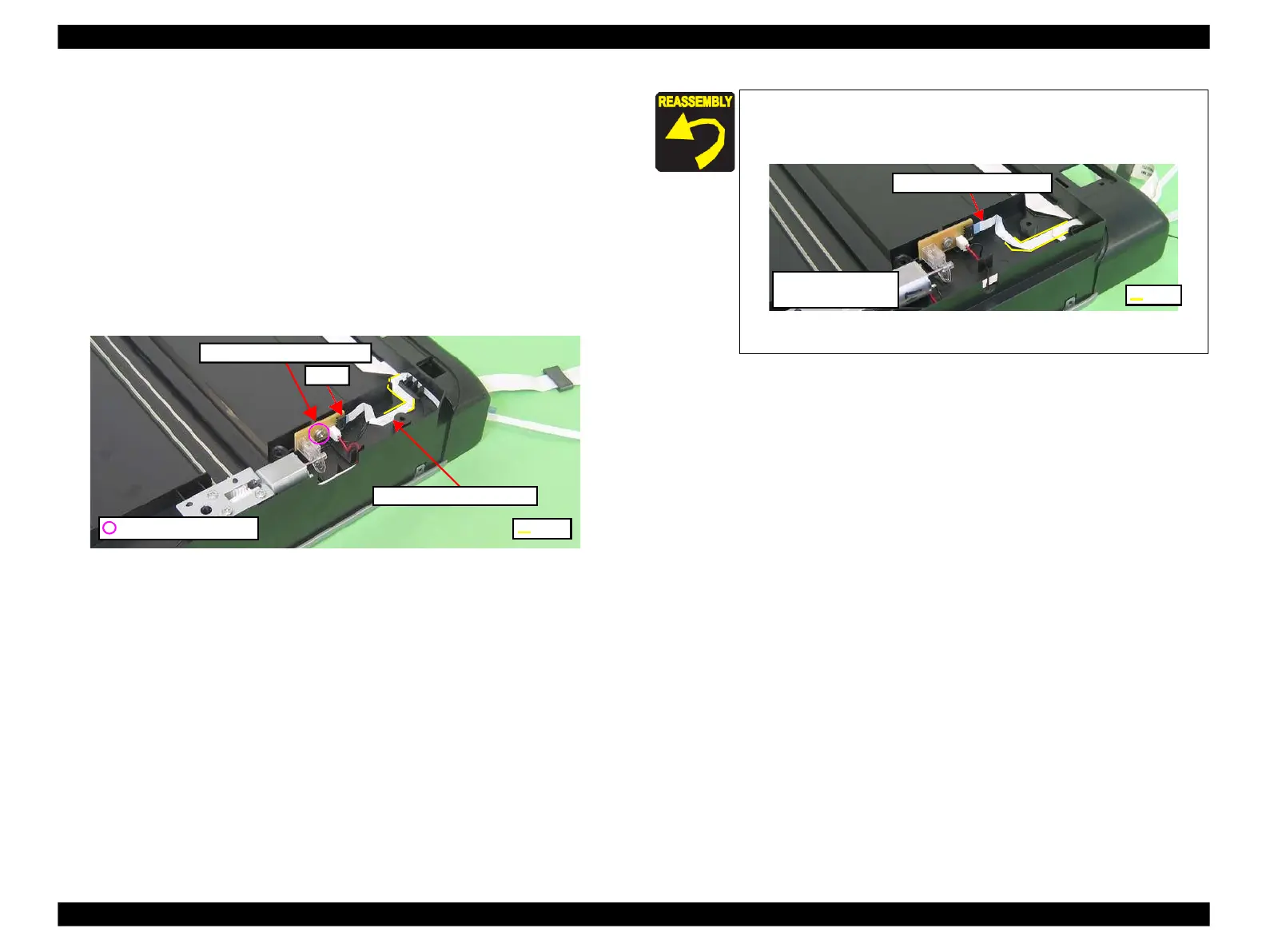

Figure 4-172. Removing the Scanner CR Encoder Board
When routing the Scanner CR Encoder FFC of Artisan 800/
PX800FW/TX800FW, route it as shown in
Fig. 4-168 and Fig. 4-172
.
See
Fig. 4-171 and below for Artisan 700/PX700W/TX700W.
Figure 4-173. Routing the FFC
(Artisan 700/PX700W/TX700W)
Rib
Artisan 700/PX700W/
TX700W
Scanner CR Encoder FFC
CN1
Scanner CR Encoder Board
Rib
C.B.S. 3x8 (5±1kgfcm)
Scanner CR Encoder FFC
