4.2.1 Parts transferred from the old printer when
replacing the Printer Mechanism
When replacing the Printer Mechanism specified as ASP parts with a new one, transfer
the parts in the list below from the old printer to the new one.
Parts to replace

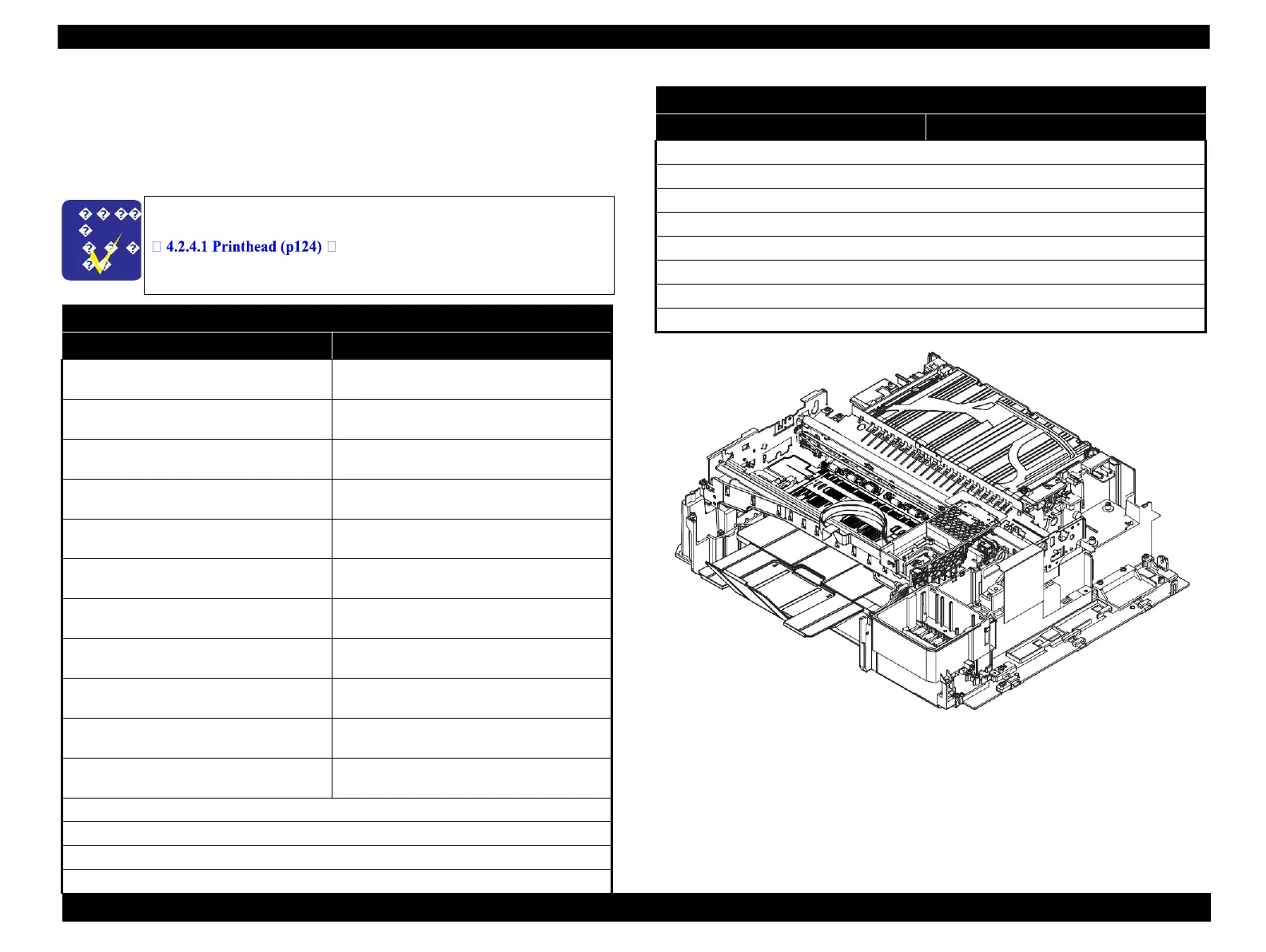

Figure 4-1. Printer Mechanism
Artisan 800/PX800FW/TX800FW
Artisan 700/PX700W/TX700W
4.2.2.1 " ADF Unit (Artisan 800/PX800FW/
TX800FW only) " (p.102)
---
4.2.2.2 " Scanner Unit " (p.103)
4.3.1.1 " Scanner Unit (Artisan 700/PX700W/
TX700W) " (p.185)
4.2.2.4 " Upper Left Housing / Panel Lock Button
" (p.106)
4.3.1.2 " Upper Left Housing (Artisan 700/
PX700W/TX700W) " (p.187)
4.2.2.5 " Upper Housing " (p.107)
4.3.1.3 " Upper Housing (Artisan 700/PX700W/
TX700W) "(p.188)
4.2.2.6 " Rear Left Housing " (p.109)
4.3.1.4 " Rear Left Housing (Artisan 700/PX700W/
TX700W) " (p.190)
4.2.2.7 " Left Housing / Decoration Belt L "
(p.109)
4.3.1.5 " Left Housing/Decoration Belt L (Artisan
700/PX700W/TX700W) " (p.191)
4.2.2.10 " Rear Right FAX Housing " (p.112)
4.3.1.6 " Rear Right Housing (Artisan 700/
PX700W/TX700W) " (p.192)
4.2.2.11 " Right Housing / Card Cover " (p.113)
4.3.1.7 " Right Housing/Card Cover (Artisan 700/
PX700W/TX700W) " (p.193)
4.2.3.1 " Panel Unit " (p.115)
4.3.2.1 " Panel Unit (Artisan 700/PX700W/
TX700W) " (p.194)
4.2.3.2 " Main Board / Grounding Plate M/B "
(p.117)
4.3.2.2 " Main Board/Grounding Plate M/B
(Artisan 700/PX700W/TX700W) " (p.196)
4.2.3.5 " Card Slot Assy " (p.123)
4.3.2.3 " Card Slot Assy (Artisan 700/PX700W/
TX700W) " (p.199)
4.2.2.3 " Hinge " (p.105)
4.2.2.9 " Rear ASF Paper Guide Cover " (p.111)
4.2.2.12 " Cassette Unit " (p.114)
4.2.2.13 " Paper Guide Top Assy " (p.115)
DISASSEMBLY/ASSEMBLY Disassembly Procedures 101
Parts to replace
Artisan 800/PX800FW/TX800FW
Artisan 700/PX700W/TX700W
4.2.3.3 " Power Supply Unit " (p.121)
4.2.3.4 " Wireless LAN Board " (p.122)
4.2.4.1 " Printhead " (p.124)
4.2.4.3 " Decompression Pump Unit " (p.130)
4.2.4.4 " CSIC Assy " (p.132)
4.2.4.7 " Lower ASF Paper Guide Assy " (p.138)
4.2.4.8 " CDR Tray Assy " (p.140)
4.2.4.20 " Waste Ink Tray Assy " (p.163)
When removing/installing the Printhead in the process of replacing
the Printer Mechanism, make sure to perform the related work in
