Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
117
Confidential
CN14
CN9
CN1
CN5
CN7
CN6 CN4 CN3
CN2
CN36
CN51
CN8
CN25
CN13
CN24
CN49
CN21
CN31
CN19
CN501
CN33
CN41
CN22
4.2.3.2 Main Board / Grounding Plate M/B
Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing/Paper Guide Top Assy/Upper Housing/Hinge/Rear Right FAX Housing/
Right Housing
Removal procedure
1. Disconnect all the cables and FFCs from the connectors on the Main Board.
Table 4-4. Connectors on the Main Board
CN No.
Cable/FFC
Connector
Color
Number of pins
Artisan 800/
PX800FW/
TX800FW
Artisan 700/
PX700W/
TX700W
CN1
Head FFC
--
14
CN2
Head FFC
--
14
CN3
Head FFC
--
14
CN4
Head FFC
--
14
CN5
CSIC FFC
--
13
CN6
CR Encoder FFC
--
7
CN7
SUB FFC
--
9
CN8
PF Encoder FFC
--
4
Table 4-4. Connectors on the Main Board
CN10
CN12

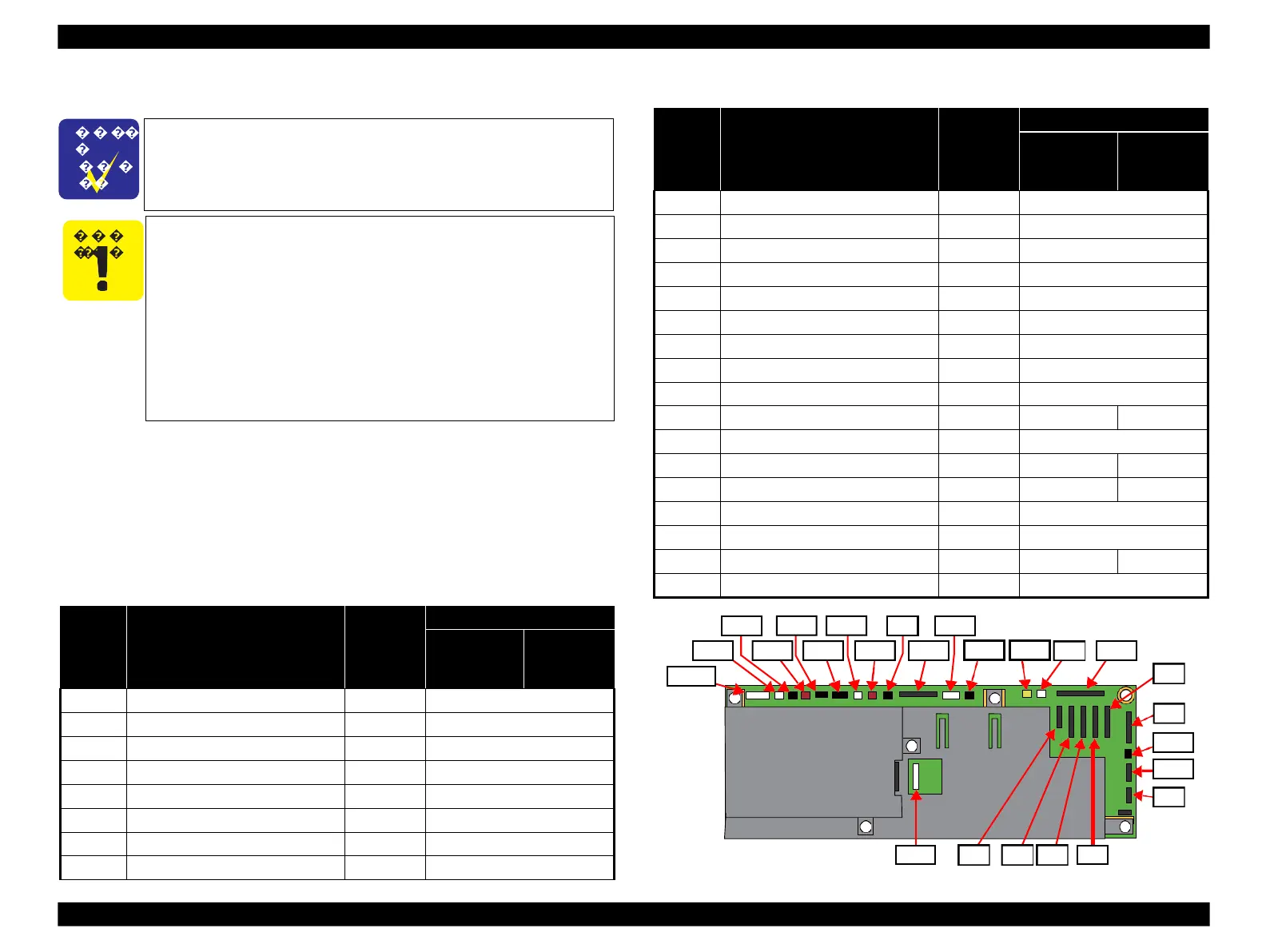

Figure 4-39. Connector position on the Main Board
When printing the CDR, the CDR Tray feed amount is adjusted
with compensation considering the deterioration of the CDR Tray,
and the correction level is determined by the number of printed
CDRs. If the data on the EEPROM can not be copied when
replacing the Main Board, banding may occur while printing CDR
due to improper corrections caused because the data of the number
of printed CDRs can not be transferred.
When this happens, replace the CDR Tray Assy with a new one
together with the Main Board. (See
4.2.4.8 "CDR Tray Assy"
(p140)
.)
CN No.
Cable/FFC
Connector
Color
Number of pins
Artisan 800/
PX800FW/
TX800FW
Artisan 700/
PX700W/
TX700W
CN9
PE Sensor Cable
White
3
CN10
Scanner Cover Open Sensor FFC
--
4
CN12
Photo Tray Sensor Cable
Yellow
2
CN13
Duplex Unit Sensor Cable
White
2
CN14
CDR Tray Sensor Cable
Red
2
CN19
Plunger Cable
Black
2
CN21
CR Motor Cable
Black
2
CN22
PF Motor Cable
White
2
CN24
Decompression Pump Motor Cable
Red
2
CN25
ADF Motor Cable
Black
4
---
CN31
STG FFC
--
8
CN33
Panel FFC
--
28
19
CN36
I/F B FFC (FAX)
--
18
---
CN41
Scanner Carriage FFC
--
15
CN49
Scanner CR Encoder FFC
--
6
CN51
ADF Sensor Cable
White
4
---
CN501
Power Supply Unit Cable
White
5
The disassembly/reassembly procedures of Artisan 700/PX700W/
TX700W differ from those of Artisan 800/PX800FW/TX800FW.
See 4.3.2.2 "Main Board/Grounding Plate M/B (Artisan 700/
PX700W/TX700W)" (p196) for the procedures.
